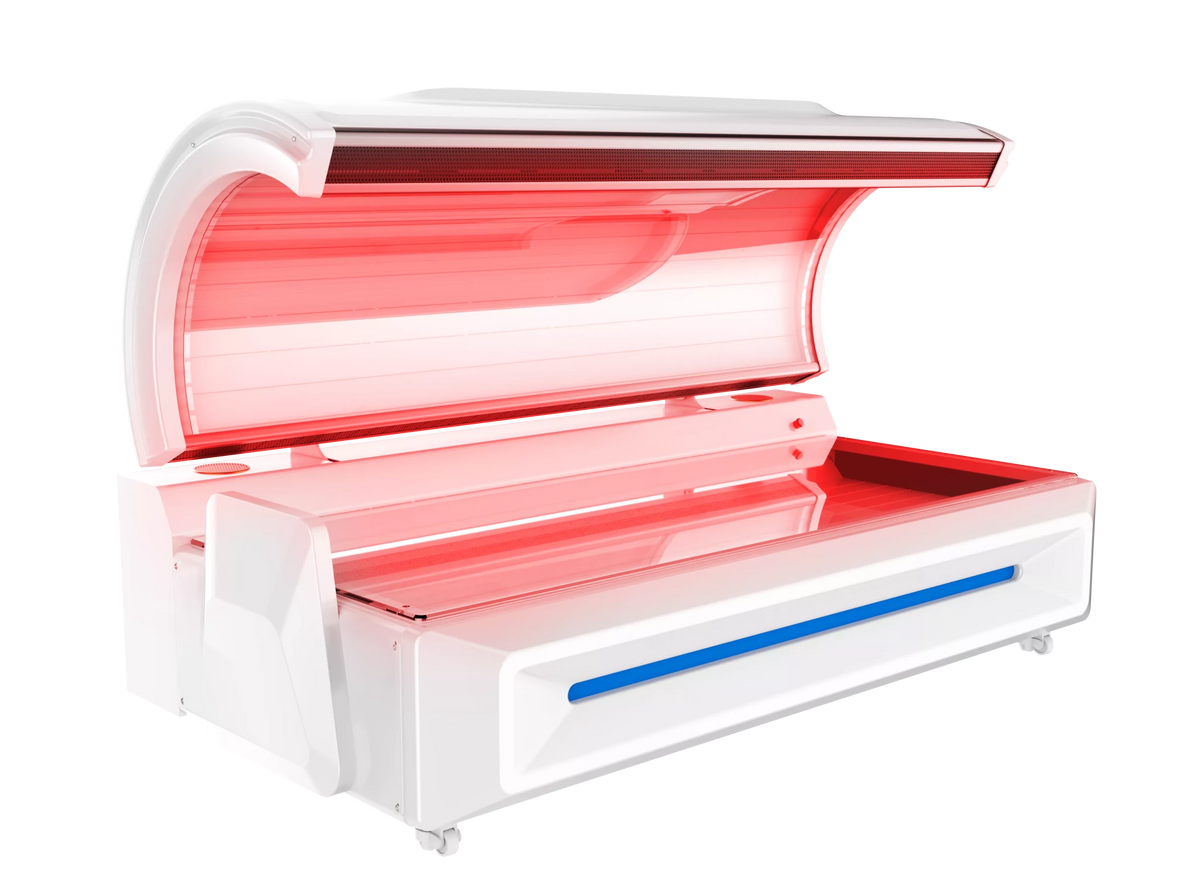

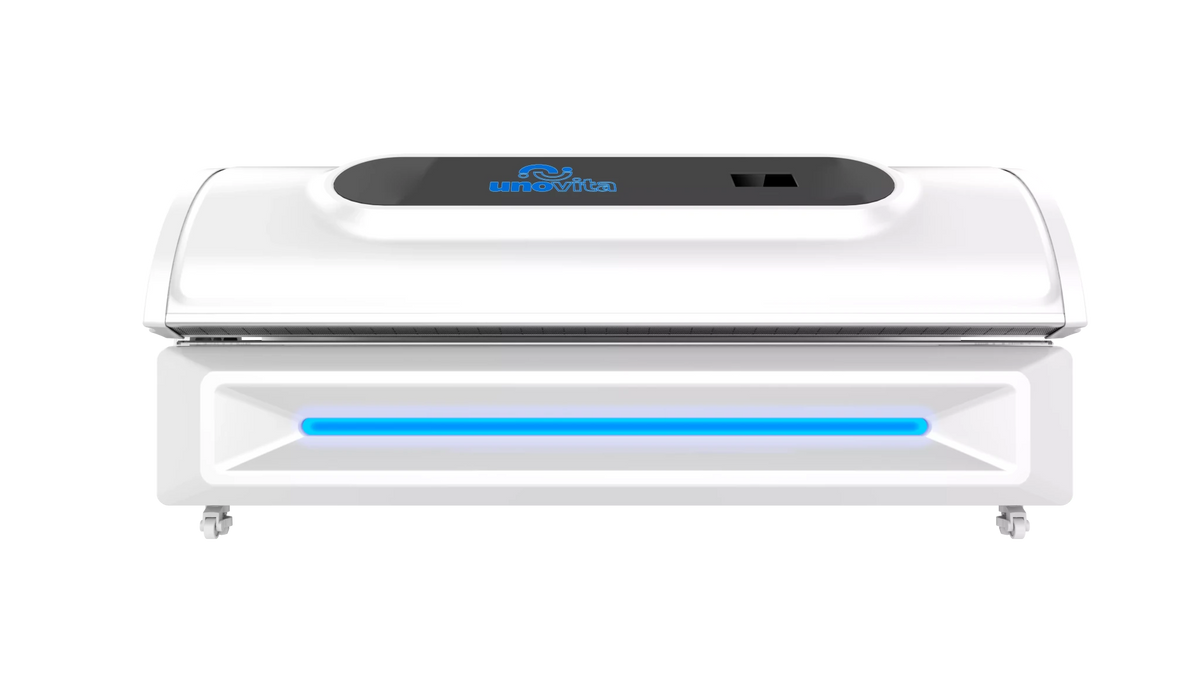

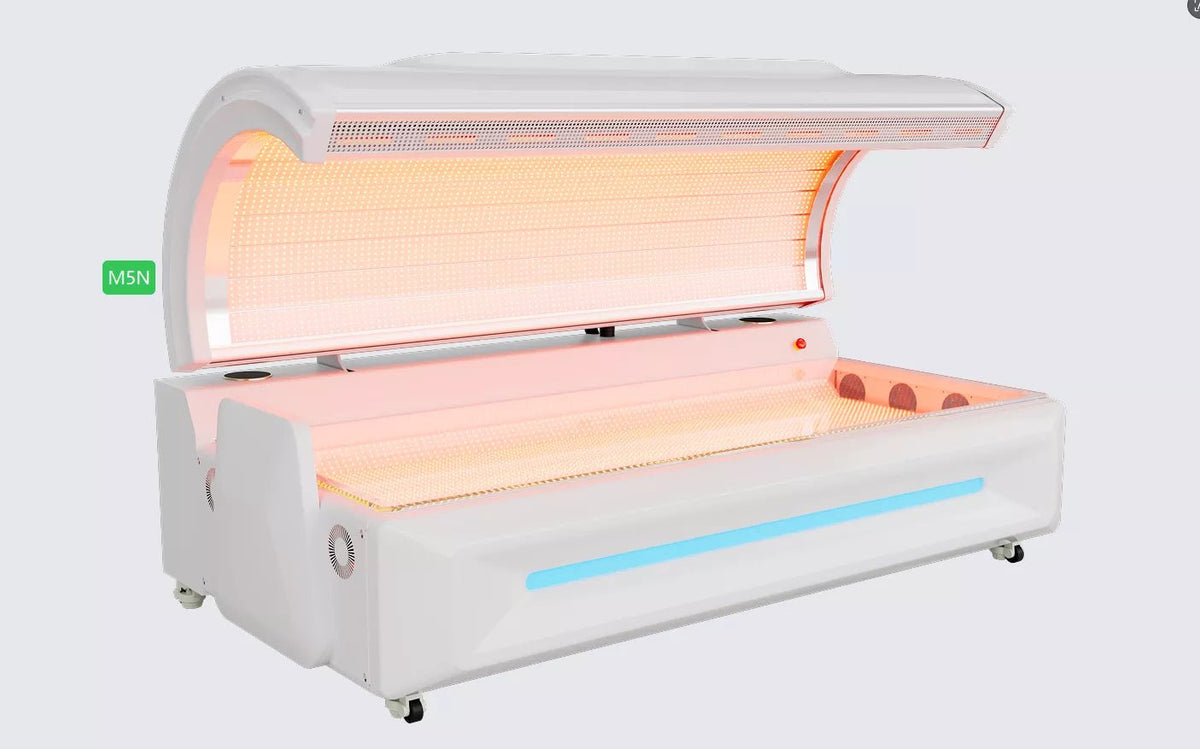

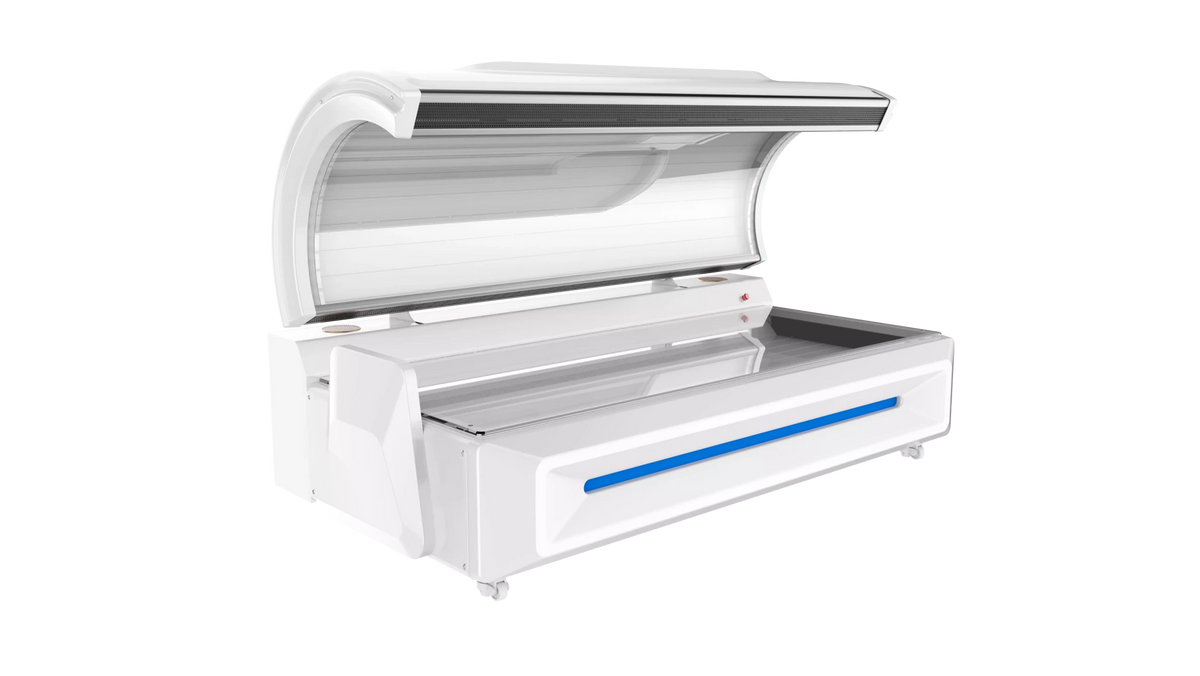

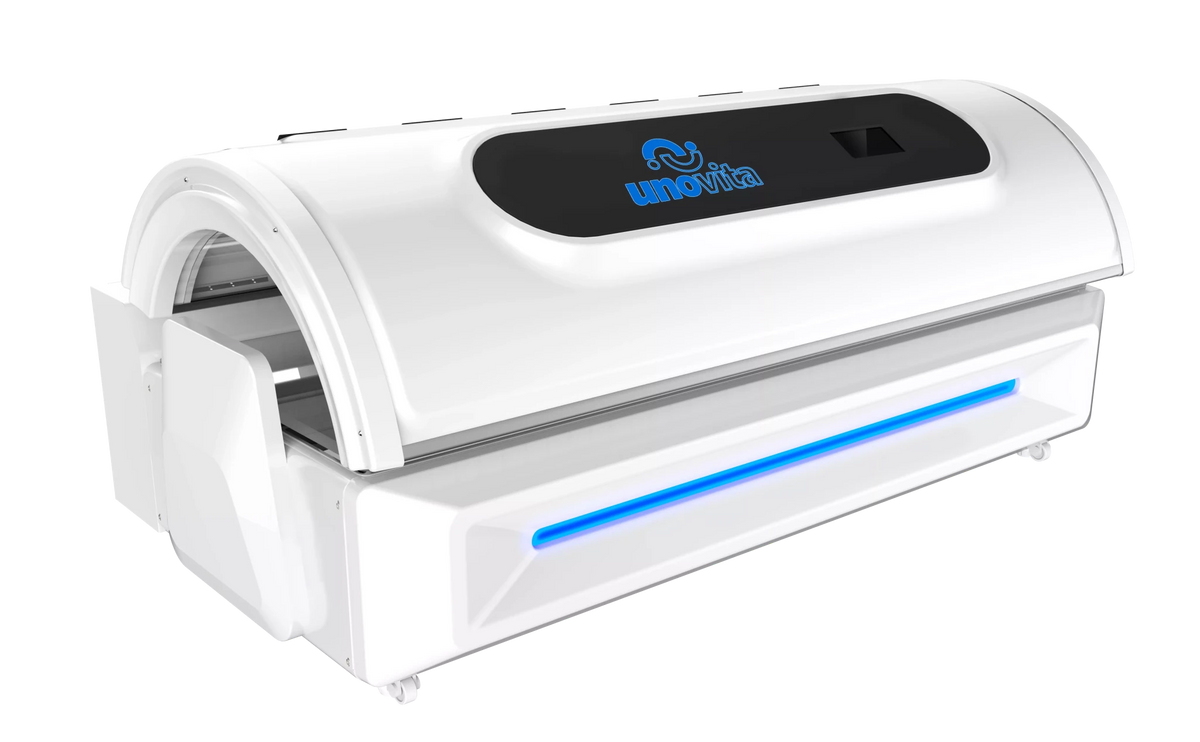

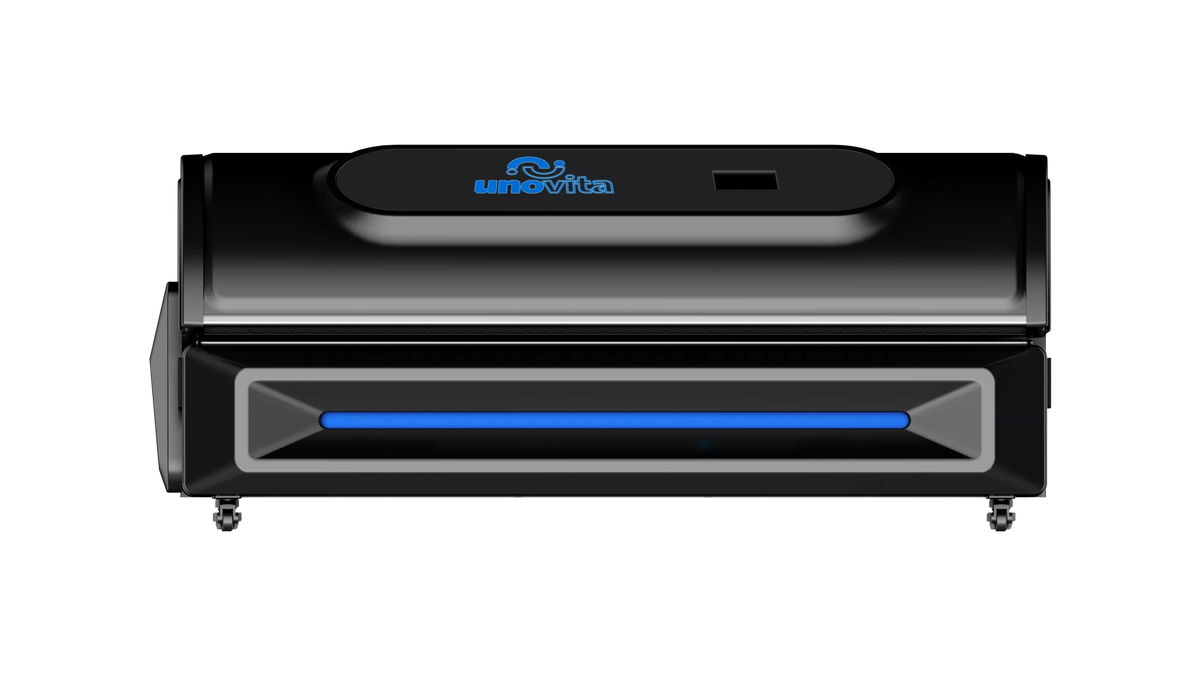

Uno Vita Merican Red Light Therapy Bed M5N+ - professional whole body photobiomodulation (PBM)

The Uno Vita Merican Red Light Therapy Bed M5N+ is one of the most advanced full-body photobiomodulation beds in the Merican series and represents the top model in capsule-based LED-based red and near-infrared light technology. The system has been developed for clinics, rehabilitation centres, sports medicine environments, spas and exclusive wellness centers that require maximum effect, precision, stable operation and high treatment capacity.

The M5N+ combines high LED density, five standardized wavelengths (633 nm, 660 nm, 810 nm, 850 nm and 940 nm), adjustable pulse frequency up to 50,000 Hz and 0-100% duty cycle with an all-encompassing capsule construction that ensures even and homogeneous light distribution over the entire body. The ergonomic, horizontal full-cabin design simulates a natural lying position and provides high comfort during treatment, while a patented self-circulating cooling and ventilation system ensures stable temperature control even during continuous clinical use.

The system uses Taiwan EPISTAR® 0.2 W LED chips and UK Lucite® acrylic panels with up to 99% light transmission. This ensures efficient transmission of red and near-infrared light to the tissue with minimal energy loss.

Overall mode of action and photobiological basis

Photobiomodulation (PBM) is based on the absorption of specific wavelengths in the red and near-infrared spectrum in the cells' mitochondria. The light energy can influence enzymatic processes and support the production of cellular energy (ATP). At the same time, signaling pathways related to microcirculation, oxidative balance and cellular communication can be affected.

The full-body exposure in the M5N+ makes it possible to deliver consistent and repeatable doses of light to large areas of the body at the same time. This is particularly relevant in professional treatment environments where systemic response, recovery and skin-related programs are included as part of comprehensive treatment protocols.

The standard wavelength combination of 633, 660, 810, 850 and 940 nm covers both superficial and deeper tissue, and the system provides individual control over each individual wavelength.

Potential health and wellness benefits of professional use

Photobiomodulation with M5N+ can support the body's natural energy metabolism through the stimulation of mitochondrial activity
Can contribute to improved recovery after physical exertion
Can support microcirculation and oxygen supply to tissues
Can help support the skin's natural collagen and elastin processes
Can contribute to general well-being, muscular relaxation and recovery
Can be included as part of professional anti-ageing and skin programs

Whole-body treatment enables simultaneous stimulation of the skin, muscles, circulation and connective tissue, which provides a holistic basis for treatment in clinical and professional environments.

Technical specifications – M5N+ top model

Model: M5N+
Light source: Taiwan EPISTAR® 0.2 W special LED
Number of LEDs: approx. 38,600 pcs
Standard wavelengths: 633 nm, 660 nm, 810 nm, 850 nm, 940 nm
Power: up to 5,200 W
Frequency range: 0-50,000 Hz adjustable
Duty cycle: 0-100% adjustable (CW at 100%)
Individual wavelength control: yes
Control system: Smart Control System 2.2 with touch panel, memory function and wireless connection
Cooling system: patented self-circulating 360° air cooling with separate fresh air duct
Overheating protection: automatic temperature control with alarm system
Light transmission: UK Lucite® acrylic up to 99%
Bluetooth sound system: integrated surround system
IP rating: IP53
Power requirement 220 V: dedicated 40A course
Power requirement 380 V: dedicated 25A three-phase course

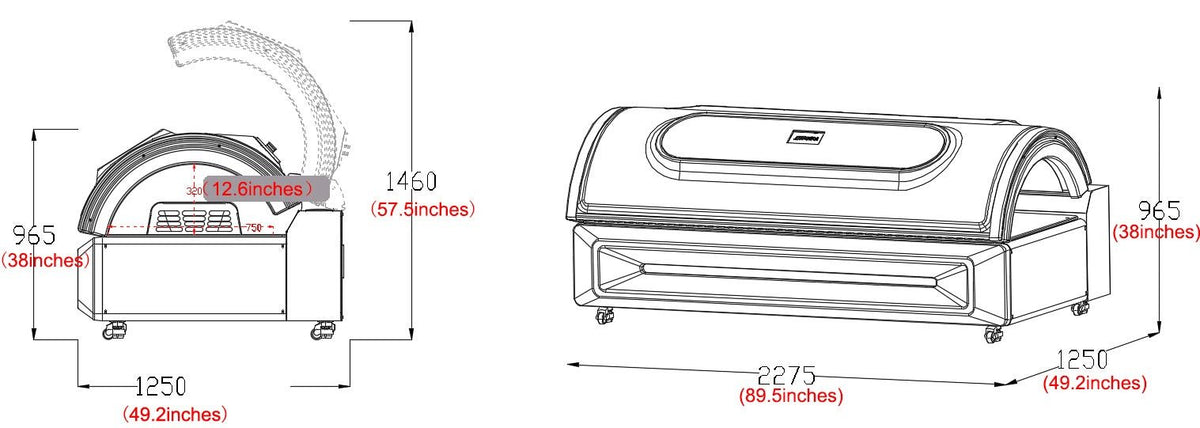

Dimensions: approx. 2275 × 1250 × 965 mm
Internal height: approx. 320 mm
Weight: approx. 370 kg
LED lifetime: up to 100,000 hours
Warranty: up to 5 years as specified by the manufacturer

Installation requirements

The machine requires a dedicated course with a correct grounding system. At 220 V, a 40A single-phase course is required. At 380 V, a 25A three-phase course is required. Installation is recommended to be carried out by a qualified electrician in accordance with local regulations.

A minimum distance of 30 cm to the wall on all sides and a minimum of 100 cm between two units is recommended for optimal heat dissipation.

Recommended operating temperature is 15–35 °C with relative humidity ≤75% without condensation.

Areas of use

The M5N+ has been developed for professional use in clinics, rehabilitation facilities, sports medicine, spas, wellness centers and luxury health facilities. The system is suitable for whole-body photobiomodulation in programs for recovery, well-being, skin improvement and integrated treatment plans where high effect and stable performance are essential.

Technical Model Overview - Uno Vita Merican Full Body PBM (Plus Series)

Uno Vita American M4N Plus
Number of LEDs: approx. 21,600 pcs
LED type: Taiwan EPISTAR® 0.2 W special LED
Standard wavelengths: 633, 660, 810, 850, 940 nm
Total rated power: approx. 3000W
Pulse frequency: adjustable, up to 50,000 Hz (model-dependent control)
Duty cycle: 0-100%
Control system: Smart Control System 2.2
Cooling: Self-circulating forced air cooling
Power connection: 220 V
Power consumption: approx. 15 A (220 V)
Dimensions: approx. 1940 × 860 × 820 mm
Weight: approx. 120 kg
Degree of protection: IP53
Application profile: Compact clinic model for spa, skin, recovery and smaller treatment rooms

Uno Vita Merican M5N Plus-5
Number of LEDs: approx. 38,600 pcs
LED type: Taiwan EPISTAR® 0.2 W LED
Standard wavelengths: 633, 660, 810, 850, 940 nm
Total rated power: up to approx. 5,200 W
Pulse frequency: 0-50,000 Hz
Duty cycle: 0-100%
Individual wavelength control: Yes
Control system: Wireless smart control with protocol management
Cooling: Patented 360° air cooling with separate fresh air system
Power connection: 220 V (dedicated course approx. 40 A) or 380 V three-phase (approx. 25 A)
Dimensions: approx. 2275 × 1250 × 965 mm
Weight: approx. 370 kg
Degree of protection: IP53
Usage profile: Full-scale clinic model with high LED density and powerful power class

Uno Vita Merican M6N Plus-5
Number of LEDs: approx. 41,600 pcs
LED type: Taiwan EPISTAR® 0.2 W 2835 LED
Standard wavelengths: 633, 660, 810, 850, 940 nm
Total rated power: approx. 6,500 W
Pulse frequency: 0–15,000 Hz
Duty cycle: 0-100%
Individual wavelength control: Yes
Control system: Integrated tablet-based control
Cooling: High-volume forced air cooling with temperature-controlled safety
Power connection: 220 V / 380 V
Dimensions: approx. 2260 × 1220 × 930 mm
Weight: approx. 360–400 kg
Degree of protection: IP53
Usage profile: Highest performance class for intensive clinical operation and high throughput

Uno Vita American M7 Plus
LED count: High LED density, model specific configuration
LED type: Taiwan EPISTAR®
Standard wavelengths: 633, 660, 810, 850, 940 nm
Power class: High power (above M5N level, model dependent)
Pulse rate: Advanced pulse control
Duty cycle: 0-100%
Capsule construction: All-encompassing premium design
Cooling: Enhanced multi-channel air cooling
Power connection: 220 V / 380 V
Usage profile: Premium clinic and luxury spa model with a focus on comfort and aesthetics

Uno Vita American M11 Plus
Number of LEDs: Extra high LED density (larger capsule volume)
LED type: Taiwan EPISTAR® high power LED
Standard wavelengths: 633, 660, 810, 850, 940 nm
Power class: Ultra high total power
Pulse rate: Advanced pulse control
Duty cycle: 0-100%
Construction: Large full body capsule with maximum internal room comfort
Cooling: Industrial air cooling with separate fresh air system
Power connection: 220 V / 380 V three-phase
Weight: High industrial grade
Usage profile: Flagship model for medical centers, sports medicine and high-end wellness facilities

Common technology platform for the Plus series
LED technology: Taiwan EPISTAR®
Standard 5-wavelength system: 633, 660, 810, 850, 940 nm
Duty cycle: 0-100%
Adjustable pulse rate
UK Lucite® acrylic panels with up to 99% light transmission
IP53 degree of protection
Automatic temperature protection and overheating alarm
Smart Control System 2.2 or later
Environmental requirements: 15–35 °C, ≤ 75% RH without condensation
Warranty: Up to 5 years as specified by the manufacturer

Brief technical differentiation
M4N Plus = compact and power efficient
M5N Plus-5 = high LED density and strong power
M6N Plus-5 = maximum power in the standard capsule class
M7 Plus = premium comfort and design
M11 Plus = flagship model with the greatest capacity and power

Safety and precautions

The maximum recommended treatment time per session should not normally exceed 30 minutes.
Protective glasses must be worn during treatment.
People with photosensitivity, a pacemaker, pregnancy or special medical conditions should consult a qualified healthcare professional before use.
The machine should not be used in the event of an active fever or serious unstable medical condition.

Disclaimer and freedom of expression

Uno Vita AS and the manufacturer make no medical guarantees for individual results. Effects may vary between individuals. The information is based on the manufacturer's technical specifications and available scientific literature on photobiomodulation and is intended as general professional information. The product is not intended to replace medical diagnosis or treatment.

Uno Vita supports the free sharing of knowledge about light, energy and the body's biological regulation processes in line with freedom of expression.
