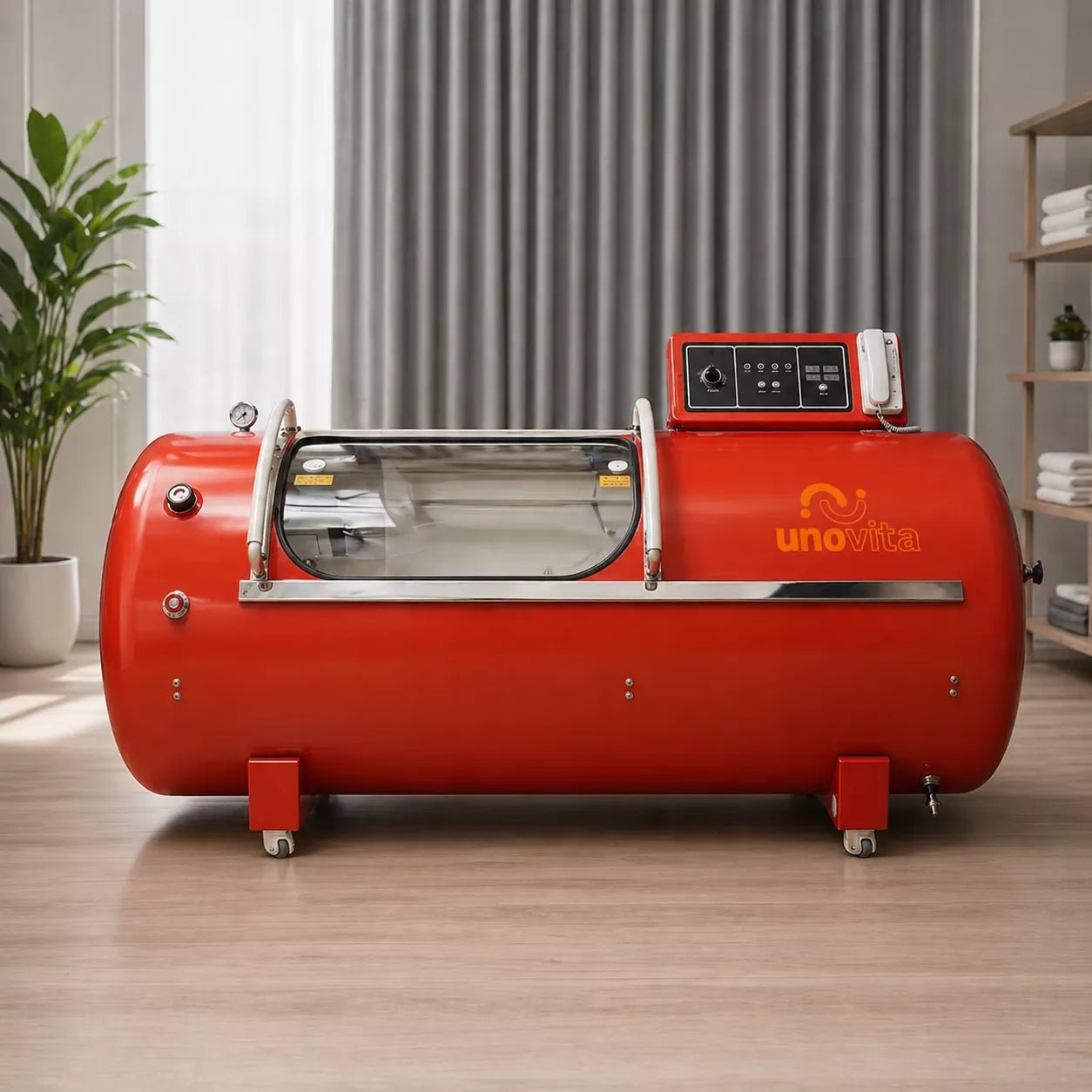

Uno Vita - Macypan HP2202-90 2.0 ATA - Large hard-shell HBOT chamber

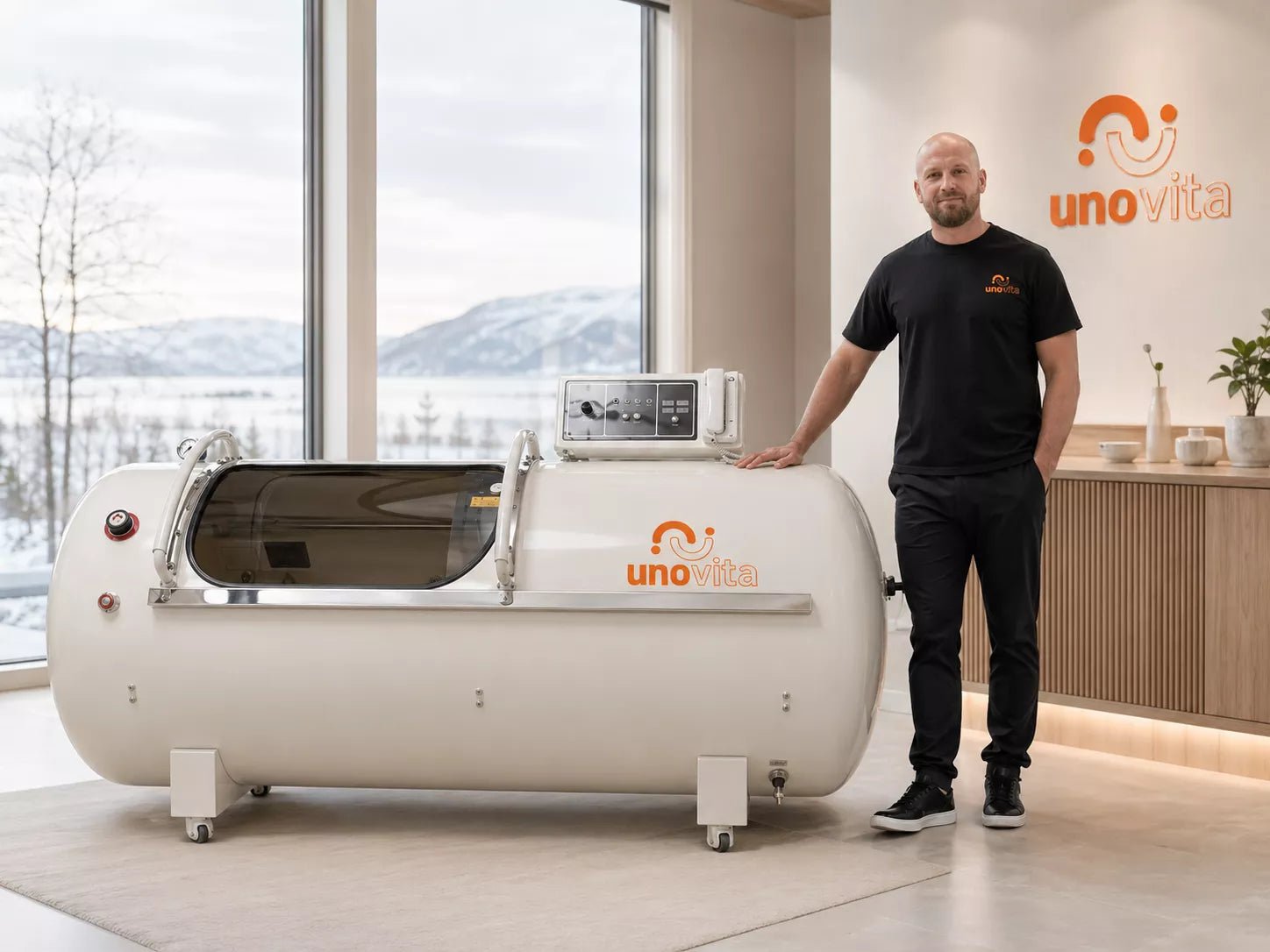

The Uno Vita – Macypan HP2202-90 2.0 ATA is a large, hard-lying hyperbaric oxygen chamber for customers who want a more robust, professional and comfortable HBOT experience than soft chambers can usually provide. With a chamber size of 220 × 90 × 90 cm, the model provides an extra sense of space, good lying comfort and a more exclusive user experience for clinics, spas, recovery centres, training environments, premium homes and professional wellness concepts.

HP2202-90 is an L-size hard-shell model with 2.0 ATA pressure level. It has been developed for environments where stable construction, user-friendly operation, operator control, communication and visual premium quality are important. Macypan describes the model with a slide-type entry door, wide transparent viewing surface, interphone system for two-way communication, automatic air pressure control and digital display technology that shows operating data such as pressure, oxygen purity, humidity and temperature.

Why choose Uno Vita - Macypan HP2202-90 2.0 ATA?
The HP2202-90 is suitable for customers who want a large and professional hard-shell HBOT chamber with 2.0 ATA and a better sense of space than more compact hard-shell chambers. The transparent sliding door provides light, overview and a less enclosed experience. Intercom and one-button communication enable the user inside the chamber to communicate with the operator outside, which is an important advantage in professional environments. The model also has an internal pressure gauge so that the user can monitor the pressure during the push-up and push-down phase.

The chamber is built as a hard-shell system in stainless steel and polycarbonate. Macypan states that the HP2202 series uses stainless steel + polycarbonate, and that the construction has a transparent door, digital display, timer, intercom, wheels and automatic pressure control. This gives a solid and more professional look than soft portable chambers and makes the model well suited for clinics, spas, premium recovery rooms and high-end private installations.

Main benefits

• Large hard-shell HBOT chamber in L-size
• 2.0 ATA pressure level
• 220 × 90 × 90 cm chamber size
• Capacity stated by the manufacturer as two people / one adult and one child, depending on use and routines
• Stainless steel and polycarbonate according to the manufacturer's specification
• Large transparent sliding door for better light, overview and sense of space
• Digital display of pressure, oxygen purity, humidity and temperature
• Automatic air pressure control
• Intercom / interphone system for two-way communication
• One-button communication for service or emergency needs
• Internal pressure gauge so that the user can monitor the pressure from the inside
• Timer function from 0-120 minutes according to the manufacturer's description

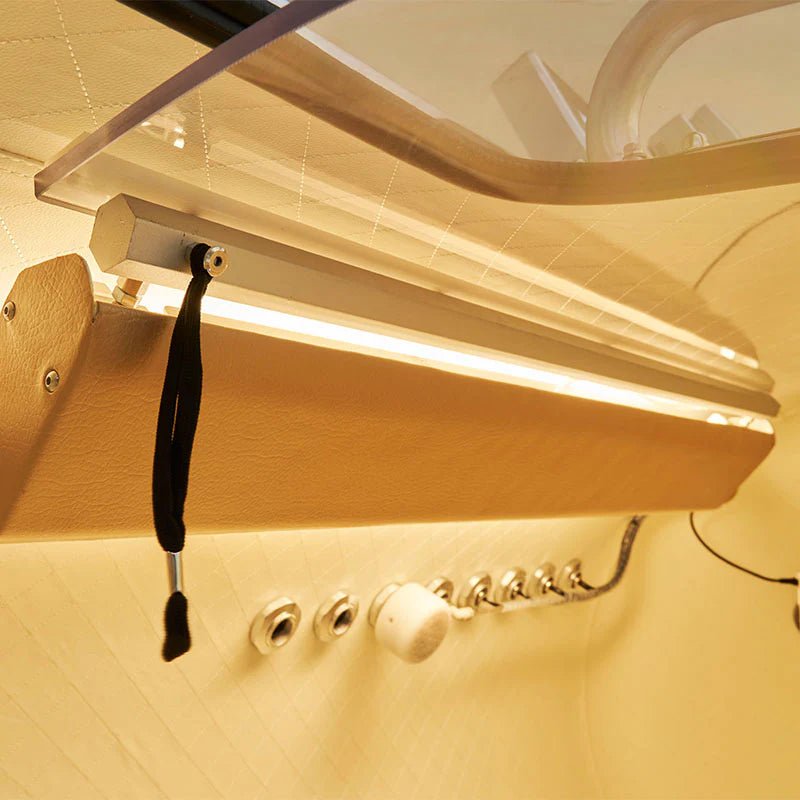

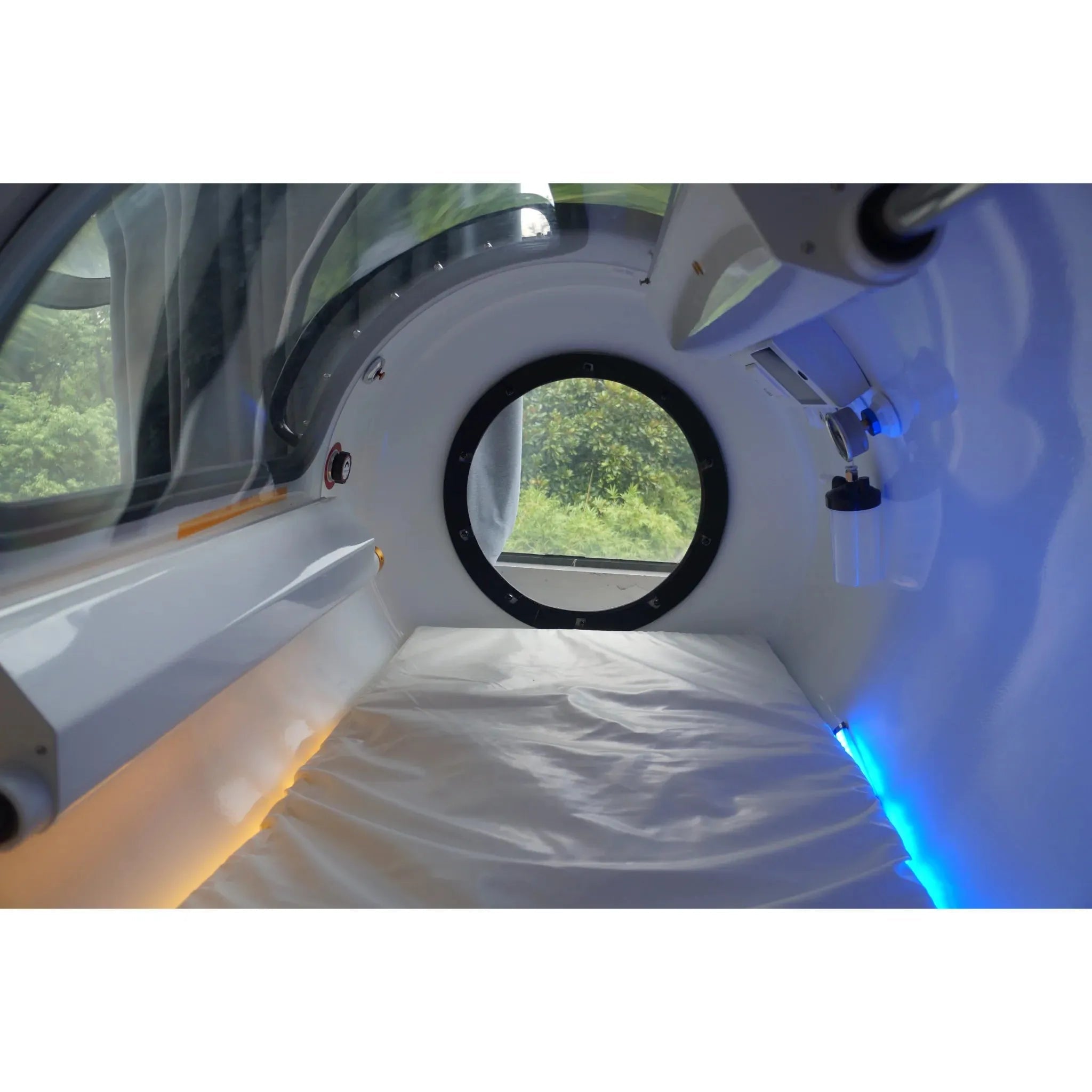

• Eye protection LED light inside the chamber
• Special air pump design for door, so the door is easier to open and close
• Wheels on the unit for easier positioning and moving
• All-in-one system machine with air compressor, oxygen concentrator and air treatment
• 72 L/min air flow and 10 L/min oxygen flow according to the manufacturer's HP2202-90 specification
• Dual air filter / double air filtration
• Suitable for professional wellness, clinic, spa, recovery and premium home

Technical key data

Model: Uno Vita – Macypan HP2202-90
Manufacturer: Shanghai Baobang Medical Equipment Co., Ltd.
Type: Hard-shell horizontal HBOT chamber
Category: Hardt hyperbaric oxygen chamber / hard lying hyperbaric chamber
Pressure: 2.0 ATA
Chamber size: 220 × 90 × 90 cm
English size: 87 × 35 × 35 inches
Chamber weight: approx. 200 kg
Chamber material: Stainless steel + polycarbonate according to manufacturer
Capacity: The manufacturer states two people / one adult and one child, depending on configuration and local routines
System machine: All-in-one machine
System machine size: 76 × 45 × 65 cm
System machine weight: approx. 80 kg
Airflow: 72 L/min according to Macypan's HP2202-90 specification
Oxygen flow: 10 L/min according to Macypan's HP2202-90 specification
Air filter: Dual / double filtration
Voltage: 110/220 VAC ±10%
Oxygen concentrator: 47 × 46 × 69 cm, 10 L/min, approx. 28 kg according to the manufacturer
Air conditioner / air cooler: 47 × 46 × 69 cm, approx. 35 kg according to the manufacturer, stated as optional/depending on the delivery setup
Position of use: Lying down
Display: Digital display for pressure, oxygen purity, temperature and humidity
Communication: Intercom / interphone and one-button communication
Safety features: Internal/external pressure gauge, automatic pressure relief, emergency pressure relief and air relief valves according to manufacturer
Mobility: Wheels on the unit
Area of use: Clinic, spa, wellness, recovery, sports environments, premium homes and professional operations

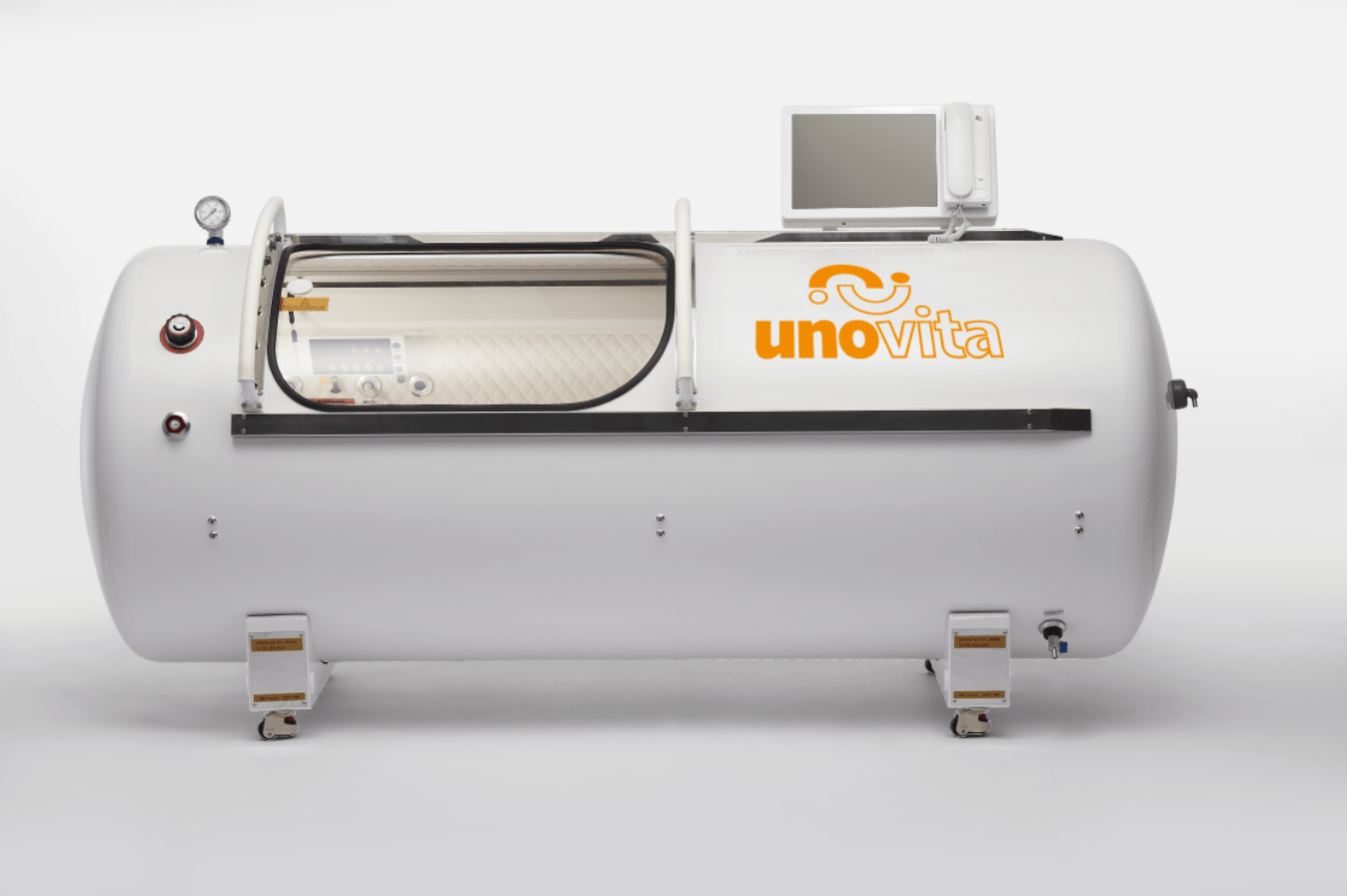

Materials and construction

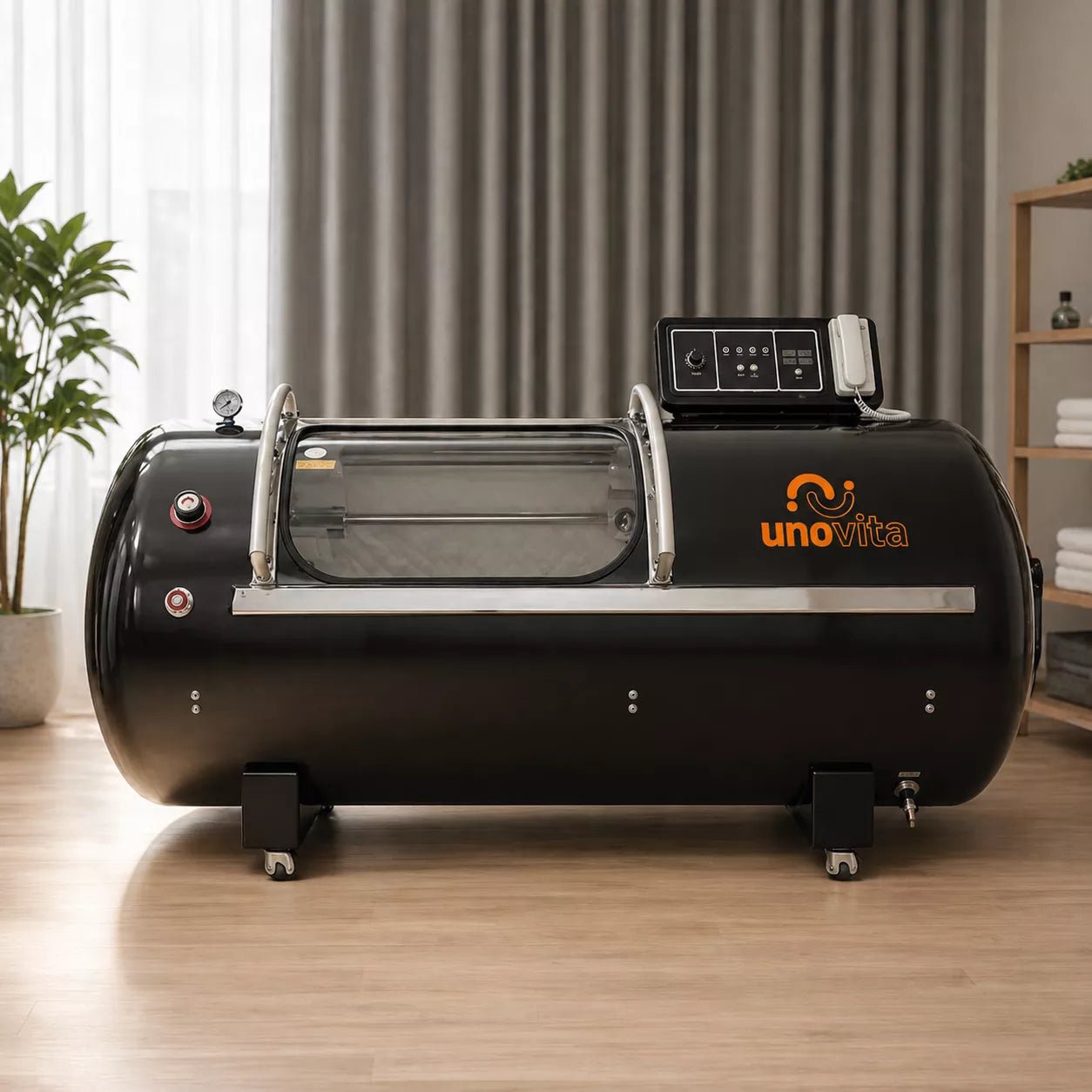

Uno Vita – Macypan HP2202-90 is a hard-shell model made with stainless steel and polycarbonate according to the manufacturer's specification. Macypan also describes the hard-shell series with 304 stainless steel, environmentally friendly spray paint, strong bearing capacity, good wear resistance, stable shape and long life. The transparent door is specified as PC / polycarbonate, a material used for good toughness, strength, corrosion resistance and temperature tolerance.

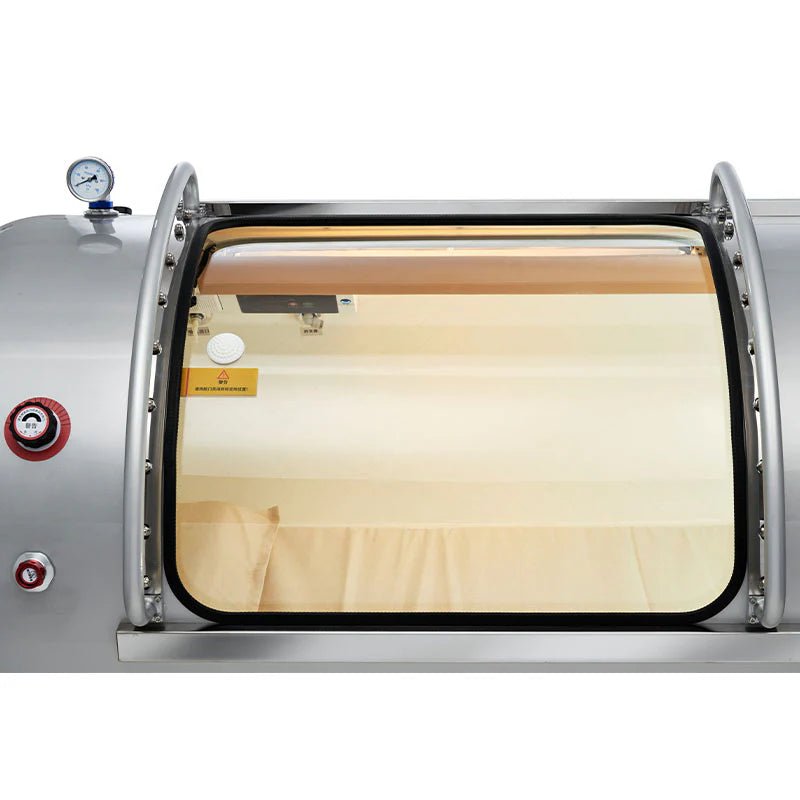

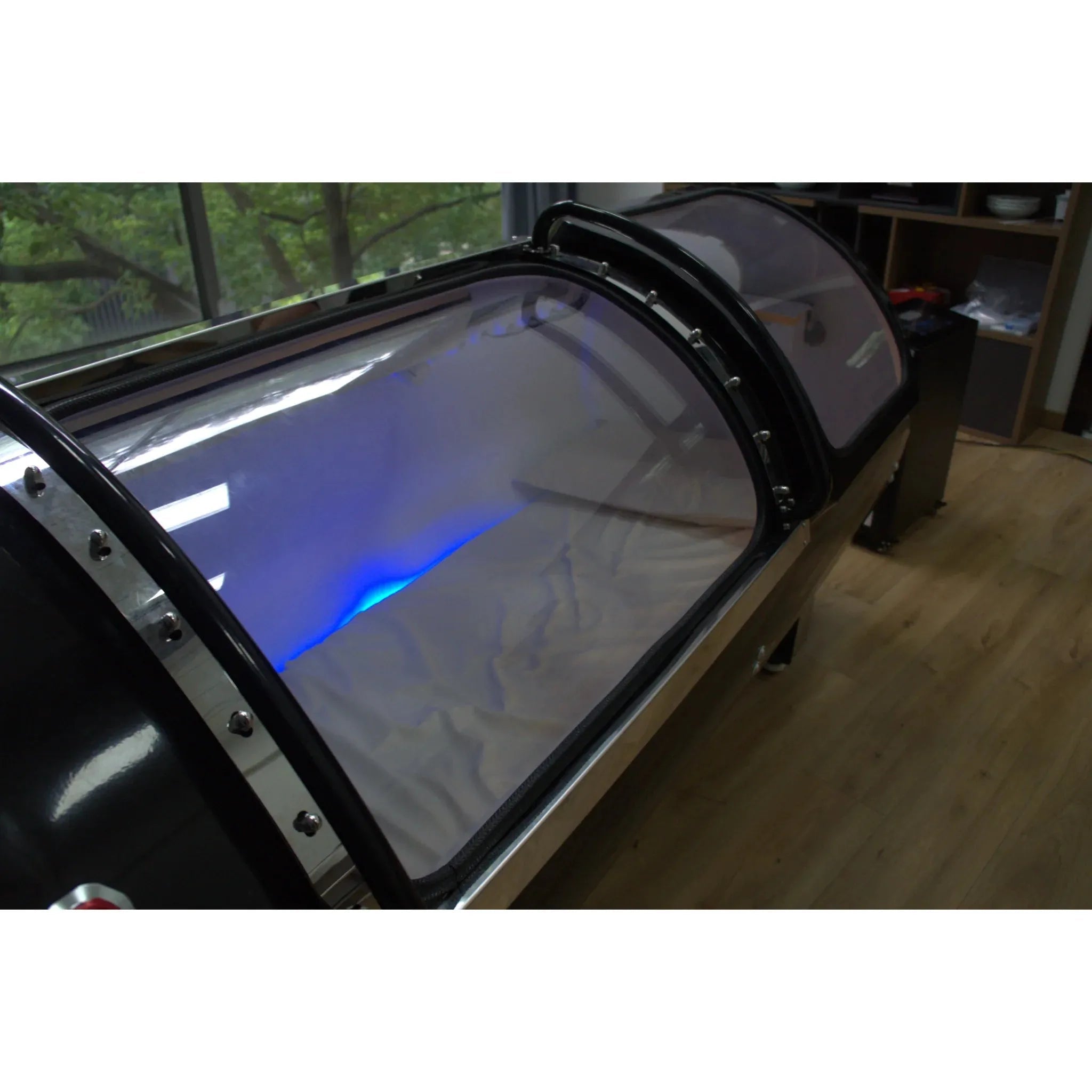

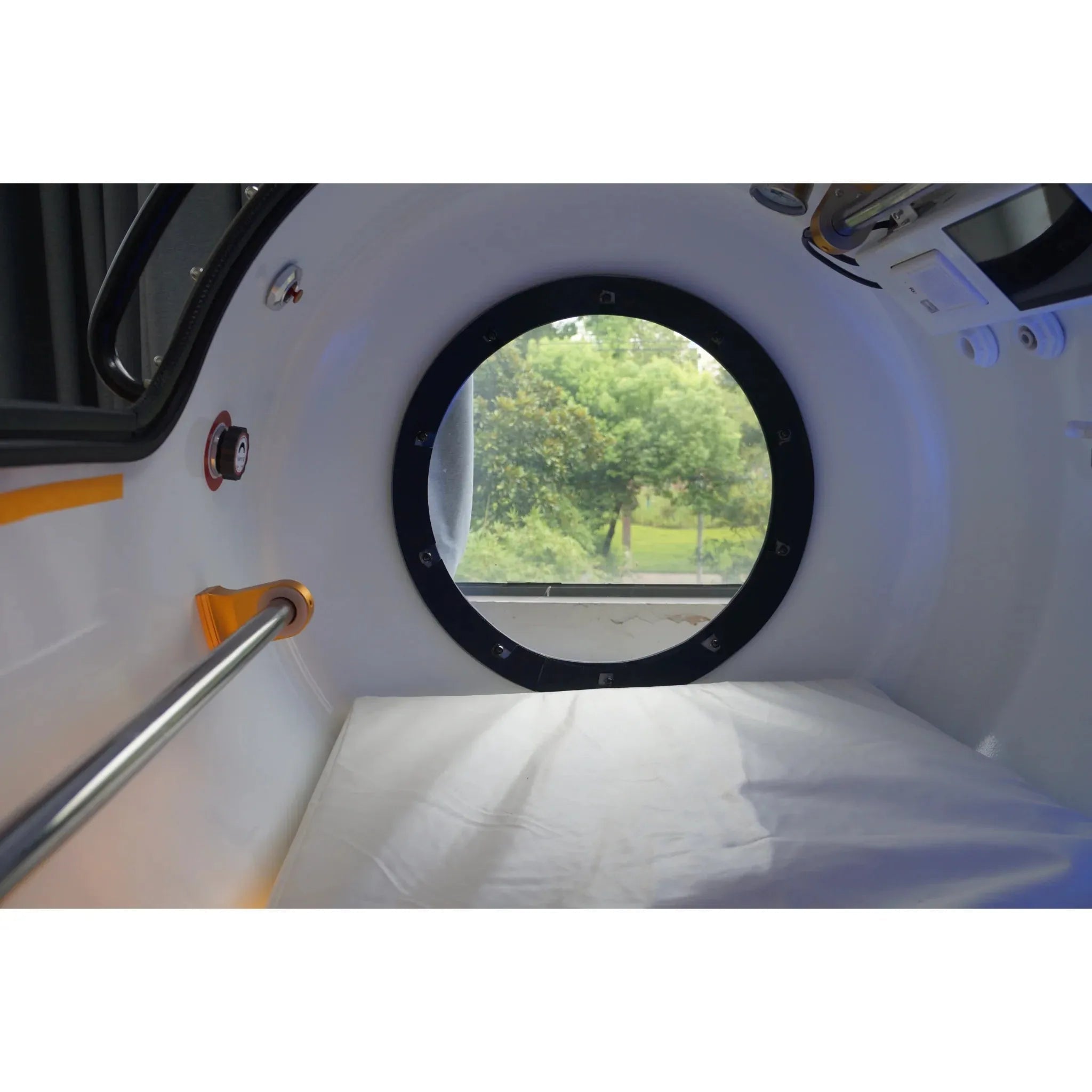

Transparent sliding door and sense of space
The wide transparent door is one of the most important user advantages of the HP2202-90. It provides a better view into and out of the chamber, makes it easier for the operator to follow along, and can contribute to a quieter experience for users who want more light and a less enclosed feeling. Macypan describes the door as a slide-type entry door with a wide transparent viewing window.

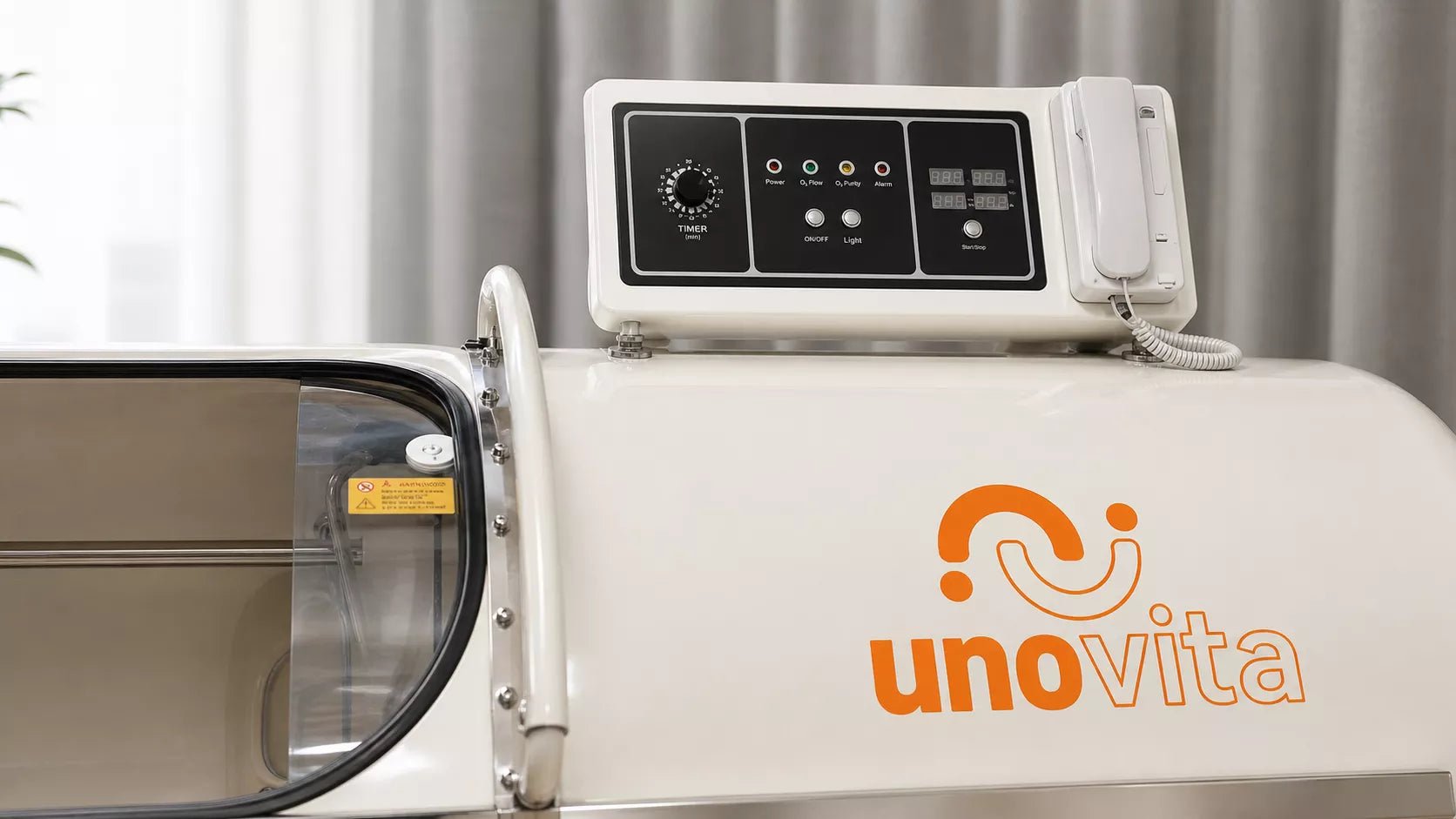

Digital control and dual communication
The HP2202-90 has a digital display of central operating data such as pressure, oxygen purity, humidity and temperature. Macypan also describes inside/outside control panels, intercom telephone, automatic digital display and rotary timer system where usage time can be preset. This makes the model particularly relevant for professional environments where operator control, user communication and overview are important.

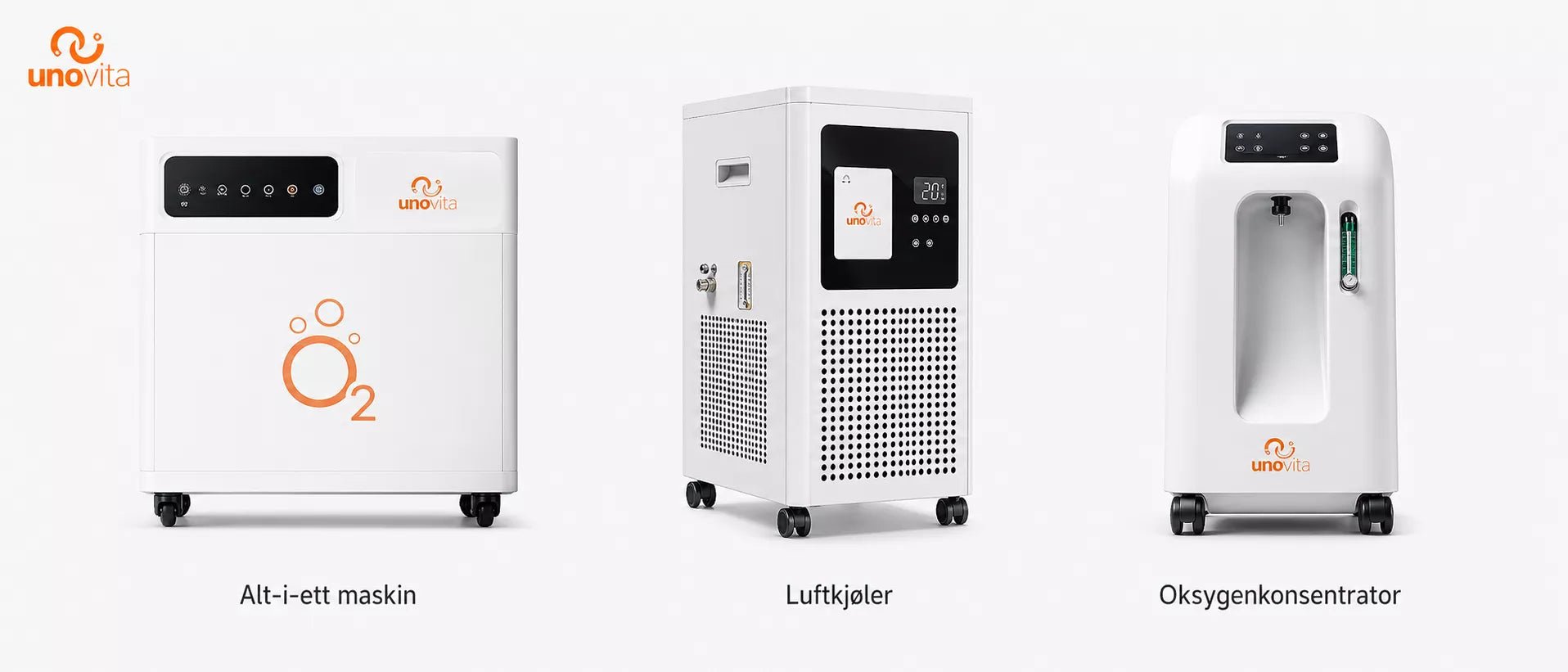

All-in-one system machine
The HP2202-90 is delivered as a system with chamber cabin and all-in-one machine. The manufacturer describes the system machine as a combination of air compressor, oxygen concentrator and air dryer, with air cooling/air conditioner as optional or depending on delivery setup. This provides a more integrated and professional installation than solutions where all components are handled separately.

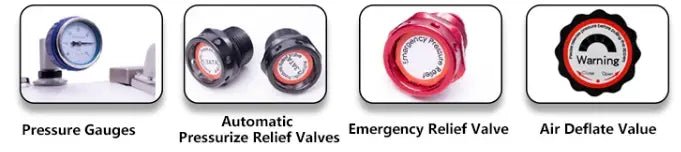

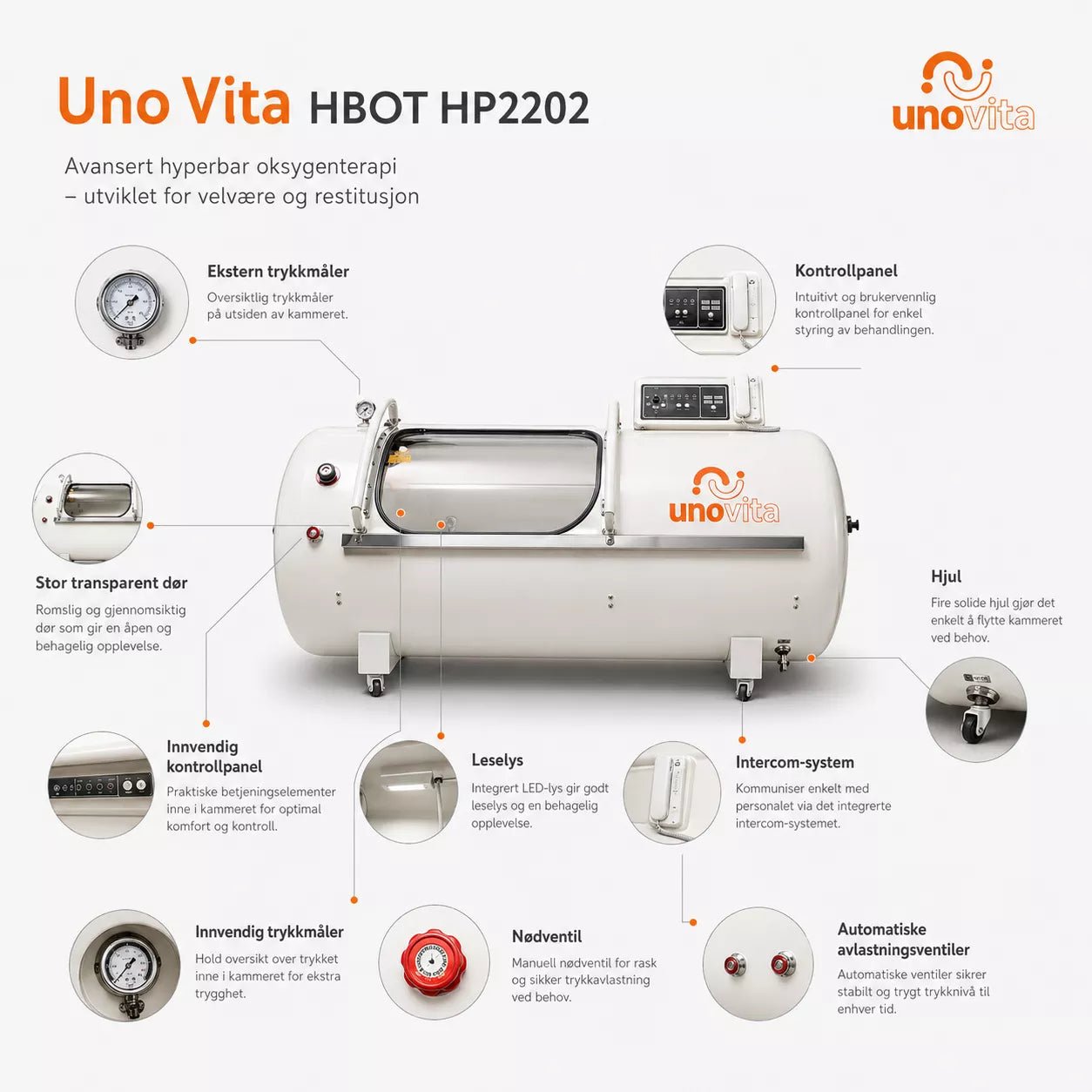

Security features
The HP2202-90 is described with internal and external pressure gauges, automatic pressure relief valves, emergency pressure relief valves and air relief valves. This provides better control and an overview during use, but does not replace training, manual-based use, risk assessment, qualified follow-up when necessary and local safety routines.

Difference to smaller HP2202 models
The HP2202 series is available in several sizes. HP2202-75 is a narrower model, HP2202-85 is a medium size, while HP2202-90 is the L-size model with 90 cm width/height and approx. 200 kg chamber weight. Macypan lists the HP2202-90 as 220 x 90 x 90 cm and 2.0 ATA. This makes the HP2202-90 best suited when the customer wants a 2.0 ATA hard-shell chamber with extra space and a more premium feeling of space.

Suitable for
Uno Vita – Macypan HP2202-90 2.0 ATA is suitable for clinics, spas, wellness centers, recovery rooms, sports environments, fitness centers, hotels, premium private installations and professional actors who want a hard-shell HBOT chamber with a higher pressure level, good comfort and a clear premium profile.

Recommended positioning on Uno Vita
This product should be positioned as a professional hard-shell HBOT chamber for well-being, oxygen focus, recovery routines and premium recovery, not as a product that treats illness. Macypan uses stronger medical language in some places on its own pages, but for Norwegian/EU-adapted publishing, Uno Vita should avoid formulations about treatment, disease, cure, medical results or clinical effects without a correct regulatory basis.

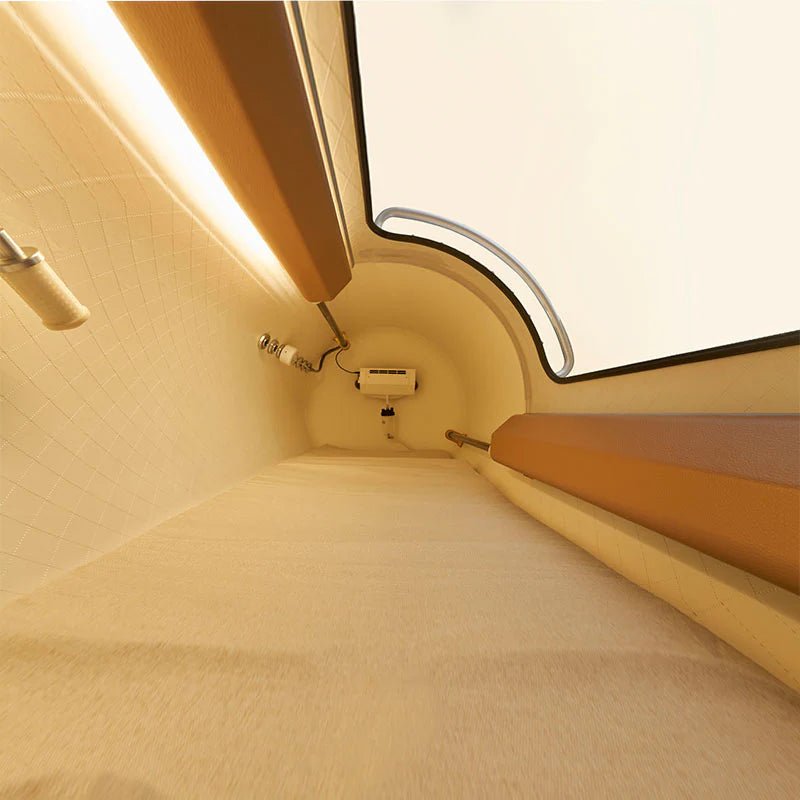

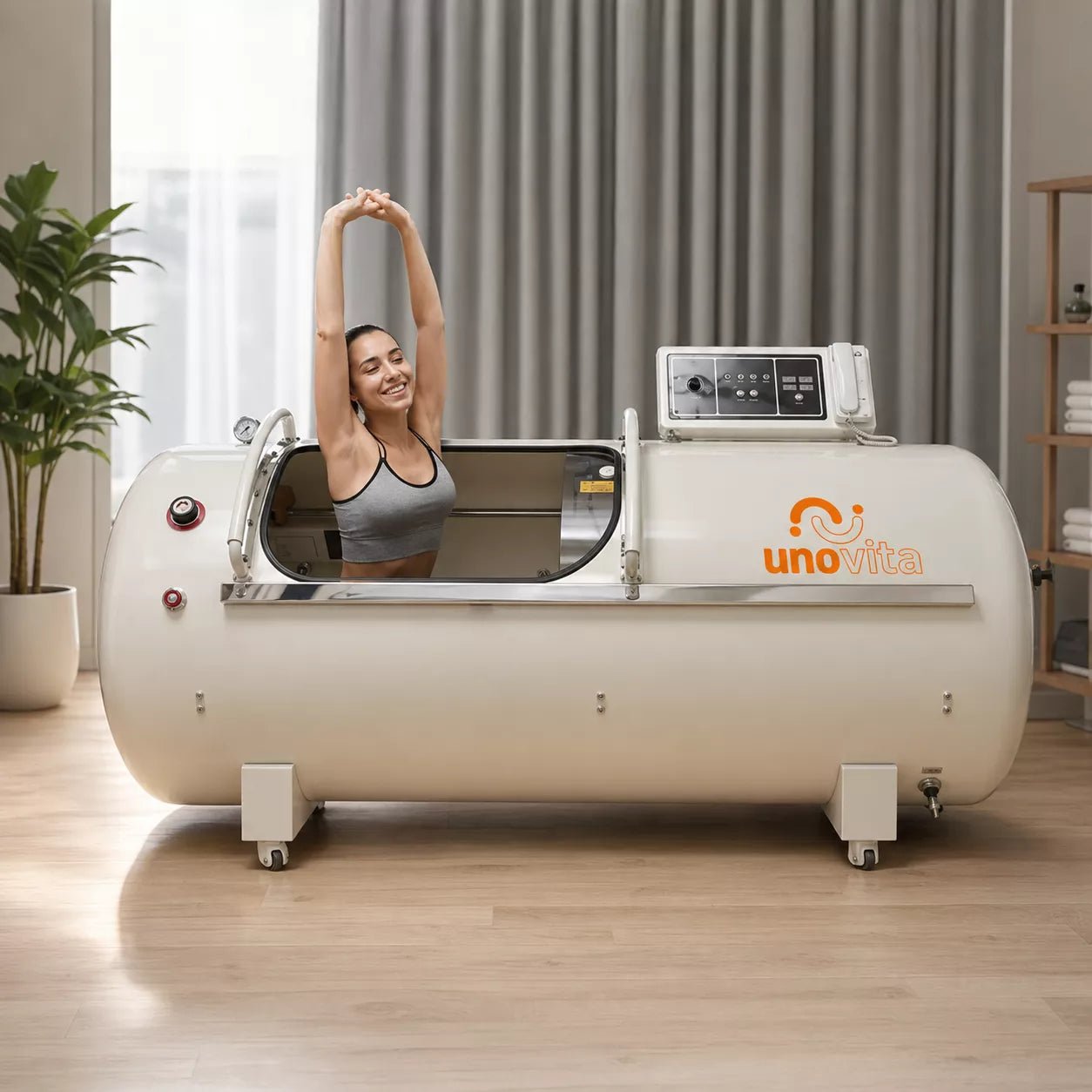

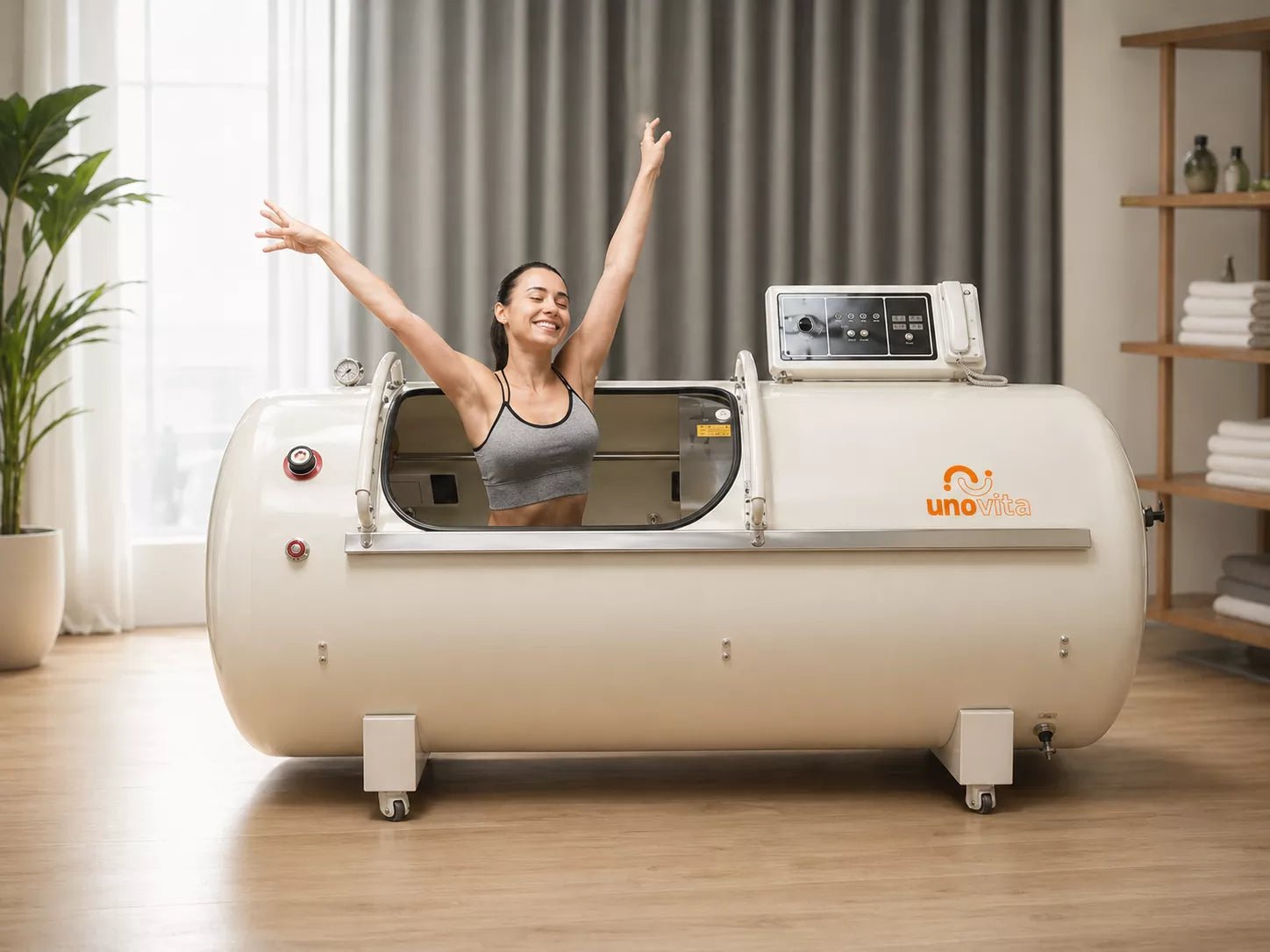

User experience
During a session, the user lies in a hard, transparent and pressurized chamber while oxygen is supplied via mask or headset. The transparent door provides a view, and the intercom makes it possible to communicate with a person outside the chamber. The digital display provides an overview of key operating parameters, and the timer function makes the session easier to structure.

Four important aspects of HBOT use
When using HBOT, there are four factors in particular that should be considered: duration per session, frequency of use, chamber pressure and oxygen content. These points should always be adapted to the user, purpose, tolerance, safety procedures, the manufacturer's manual and any advice from qualified healthcare personnel.

FAQ

What is the Uno Vita – Macypan HP2202-90?
Uno Vita – Macypan HP2202-90 is a large hard-shell horizontal HBOT chamber with 2.0 ATA pressure level, transparent sliding door, digital control, intercom and all-in-one system machine.

What makes the HP2202-90 different from the HP2202-85?
The HP2202-90 is larger and gives a more spacious feel. HP2202-90 is specified with 220 × 90 × 90 cm and approx. 200 kg chamber weight, while the HP2202-85 is a more compact model in the same hard-shell 2.0 ATA series.

What does 2.0 ATA mean?
2.0 ATA means that the chamber works at elevated pressure compared to normal atmospheric pressure. 2.0 ATA is a higher pressure level than typical soft 1.3-1.5 ATA chambers, and therefore use should occur with clear training, pressure equalization routines and safety procedures.

How is oxygen supplied?

Uno Vita - Macypan HP2202-90 2.0 ATA - Large hard-shell HBOT chamber

The Uno Vita – Macypan HP2202-90 2.0 ATA is a large, hard-lying hyperbaric oxygen chamber for customers who want a more robust, professional and comfortable HBOT experience than soft chambers can usually provide. With a chamber size of 220 × 90 × 90 cm, the model provides an extra sense of space, good lying comfort and a more exclusive user experience for clinics, spas, recovery centres, training environments, premium homes and professional wellness concepts.

HP2202-90 is an L-size hard-shell model with 2.0 ATA pressure level. It has been developed for environments where stable construction, user-friendly operation, operator control, communication and visual premium quality are important. Macypan describes the model with a slide-type entry door, wide transparent viewing surface, interphone system for two-way communication, automatic air pressure control and digital display technology that shows operating data such as pressure, oxygen purity, humidity and temperature.

Why choose Uno Vita - Macypan HP2202-90 2.0 ATA?
The HP2202-90 is suitable for customers who want a large and professional hard-shell HBOT chamber with 2.0 ATA and a better sense of space than more compact hard-shell chambers. The transparent sliding door provides light, overview and a less enclosed experience. Intercom and one-button communication enable the user inside the chamber to communicate with the operator outside, which is an important advantage in professional environments. The model also has an internal pressure gauge so that the user can monitor the pressure during the push-up and push-down phase.

The chamber is built as a hard-shell system in stainless steel and polycarbonate. Macypan states that the HP2202 series uses stainless steel + polycarbonate, and that the construction has a transparent door, digital display, timer, intercom, wheels and automatic pressure control. This gives a solid and more professional look than soft portable chambers and makes the model well suited for clinics, spas, premium recovery rooms and high-end private installations.

Main benefits

• Large hard-shell HBOT chamber in L-size
• 2.0 ATA pressure level
• 220 × 90 × 90 cm chamber size
• Capacity stated by the manufacturer as two people / one adult and one child, depending on use and routines
• Stainless steel and polycarbonate according to the manufacturer's specification
• Large transparent sliding door for better light, overview and sense of space
• Digital display of pressure, oxygen purity, humidity and temperature
• Automatic air pressure control
• Intercom / interphone system for two-way communication
• One-button communication for service or emergency needs
• Internal pressure gauge so that the user can monitor the pressure from the inside
• Timer function from 0-120 minutes according to the manufacturer's description
• Eye protection LED light inside the chamber
• Special air pump design for door, so the door is easier to open and close
• Wheels on the unit for easier positioning and moving
• All-in-one system machine with air compressor, oxygen concentrator and air treatment
• 72 L/min air flow and 10 L/min oxygen flow according to the manufacturer's HP2202-90 specification
• Dual air filter / double air filtration
• Suitable for professional wellness, clinic, spa, recovery and premium home

Technical key data

Model: Uno Vita – Macypan HP2202-90
Manufacturer: Shanghai Baobang Medical Equipment Co., Ltd.
Type: Hard-shell horizontal HBOT chamber
Category: Hardt hyperbaric oxygen chamber / hard lying hyperbaric chamber
Pressure: 2.0 ATA
Chamber size: 220 × 90 × 90 cm
English size: 87 × 35 × 35 inches
Chamber weight: approx. 200 kg
Chamber material: Stainless steel + polycarbonate according to manufacturer
Capacity: The manufacturer states two people / one adult and one child, depending on configuration and local routines
System machine: All-in-one machine
System machine size: 76 × 45 × 65 cm
System machine weight: approx. 80 kg
Airflow: 72 L/min according to Macypan's HP2202-90 specification
Oxygen flow: 10 L/min according to Macypan's HP2202-90 specification
Air filter: Dual / double filtration
Voltage: 110/220 VAC ±10%
Oxygen concentrator: 47 × 46 × 69 cm, 10 L/min, approx. 28 kg according to the manufacturer
Air conditioner / air cooler: 47 × 46 × 69 cm, approx. 35 kg according to the manufacturer, stated as optional/depending on the delivery setup
Position of use: Lying down
Display: Digital display for pressure, oxygen purity, temperature and humidity
Communication: Intercom / interphone and one-button communication
Safety features: Internal/external pressure gauge, automatic pressure relief, emergency pressure relief and air relief valves according to manufacturer
Mobility: Wheels on the unit
Area of use: Clinic, spa, wellness, recovery, sports environments, premium homes and professional operations

Materials and construction
Uno Vita – Macypan HP2202-90 is a hard-shell model made with stainless steel and polycarbonate according to the manufacturer's specification. Macypan also describes the hard-shell series with 304 stainless steel, environmentally friendly spray paint, strong bearing capacity, good wear resistance, stable shape and long life. The transparent door is specified as PC / polycarbonate, a material used for good toughness, strength, corrosion resistance and temperature tolerance.

Transparent sliding door and sense of space
The wide transparent door is one of the most important user advantages of the HP2202-90. It provides a better view into and out of the chamber, makes it easier for the operator to follow along, and can contribute to a quieter experience for users who want more light and a less enclosed feeling. Macypan describes the door as a slide-type entry door with a wide transparent viewing window.

Digital control and dual communication
The HP2202-90 has a digital display of central operating data such as pressure, oxygen purity, humidity and temperature. Macypan also describes inside/outside control panels, intercom telephone, automatic digital display and rotary timer system where usage time can be preset. This makes the model particularly relevant for professional environments where operator control, user communication and overview are important.

All-in-one system machine
The HP2202-90 is delivered as a system with chamber cabin and all-in-one machine. The manufacturer describes the system machine as a combination of air compressor, oxygen concentrator and air dryer, with air cooling/air conditioner as optional or depending on delivery setup. This provides a more integrated and professional installation than solutions where all components are handled separately.

Security features
The HP2202-90 is described with internal and external pressure gauges, automatic pressure relief valves, emergency pressure relief valves and air relief valves. This provides better control and an overview during use, but does not replace training, manual-based use, risk assessment, qualified follow-up when necessary and local safety routines.

Difference to smaller HP2202 models
The HP2202 series is available in several sizes. HP2202-75 is a narrower model, HP2202-85 is a medium size, while HP2202-90 is the L-size model with 90 cm width/height and approx. 200 kg chamber weight. Macypan lists the HP2202-90 as 220 x 90 x 90 cm and 2.0 ATA. This makes the HP2202-90 best suited when the customer wants a 2.0 ATA hard-shell chamber with extra space and a more premium feeling of space.

Suitable for
Uno Vita – Macypan HP2202-90 2.0 ATA is suitable for clinics, spas, wellness centers, recovery rooms, sports environments, fitness centers, hotels, premium private installations and professional actors who want a hard-shell HBOT chamber with a higher pressure level, good comfort and a clear premium profile.

Recommended positioning on Uno Vita
This product should be positioned as a professional hard-shell HBOT chamber for well-being, oxygen focus, recovery routines and premium recovery, not as a product that treats illness. Macypan uses stronger medical language in some places on its own pages, but for Norwegian/EU-adapted publishing, Uno Vita should avoid formulations about treatment, disease, cure, medical results or clinical effects without a correct regulatory basis.

User experience
During a session, the user lies in a hard, transparent and pressurized chamber while oxygen is supplied via mask or headset. The transparent door provides a view, and the intercom makes it possible to communicate with a person outside the chamber. The digital display provides an overview of key operating parameters, and the timer function makes the session easier to structure.

Four important aspects of HBOT use
When using HBOT, there are four factors in particular that should be considered: duration per session, frequency of use, chamber pressure and oxygen content. These points should always be adapted to the user, purpose, tolerance, safety procedures, the manufacturer's manual and any advice from qualified healthcare personnel.

FAQ

What is the Uno Vita – Macypan HP2202-90?
Uno Vita – Macypan HP2202-90 is a large hard-shell horizontal HBOT chamber with 2.0 ATA pressure level, transparent sliding door, digital control, intercom and all-in-one system machine.

What makes the HP2202-90 different from the HP2202-85?
The HP2202-90 is larger and gives a more spacious feel. HP2202-90 is specified with 220 × 90 × 90 cm and approx. 200 kg chamber weight, while the HP2202-85 is a more compact model in the same hard-shell 2.0 ATA series.

What does 2.0 ATA mean?
2.0 ATA means that the chamber works at elevated pressure compared to normal atmospheric pressure. 2.0 ATA is a higher pressure level than typical soft 1.3-1.5 ATA chambers, and therefore use should occur with clear training, pressure equalization routines and safety procedures.

How is oxygen supplied?
Oxygen is supplied via an oxygen mask or headset. Macypan states an oxygen flow of 10 L/min for the HP2202-90.

Does the HP2202-90 have an intercom?
Yes. The model is described with an interphone/intercom system for two-way communication, as well as one-button communication from inside the chamber.

Does the model have a digital display?
Yes. Macypan automatically provides digital display technology that displays data such as pressure, oxygen purity, humidity and temperature.

Can the HP2202-90 be moved?
The manufacturer describes wheels on the unit, so that it can be moved or positioned more easily. Due to the weight and size, moving should always be done under control and according to installation routines.

Is the HP2202-90 for home or professional use?
It can be relevant for premium homes, but is particularly suitable for professional environments such as clinics, spas, recovery centres, fitness centers and wellness concepts.

Can the HP2202-90 be used by two people?
Macypan describes the HP2202-90 as an L-size model with capacity for two people / one adult and one child, depending on use and configuration. Practical capacity should be assessed based on safety, comfort, user height, local routine and operator responsibility.

Important information about the use of HBOT and pressure chambers
The information on this page is general product information and should not be understood as medical advice. Hyperbaric oxygen, pressure chambers and HBOT equipment are not intended to diagnose, treat, cure or prevent disease outside approved medical frameworks and relevant professional follow-up.

Pressure chambers must always be used in accordance with the manufacturer's manual, local safety procedures, current regulations and any assessment by qualified healthcare personnel. People with lung disease, pressure equalization problems, ear or sinus problems, fever, cold, recent surgery, pregnancy, severe claustrophobia, unstable blood pressure or other medical problems should clarify use before a session.

For safe operation, the chamber must be used in a clean, well-ventilated environment. Avoid oil, grease, sparks, flames, unauthorized electrical products, heat-generating devices and static-generating materials in or near the chamber. Ensure training, maintenance, antistatic routine, functioning valves, proper air supply and continuous opportunity for communication during use.
