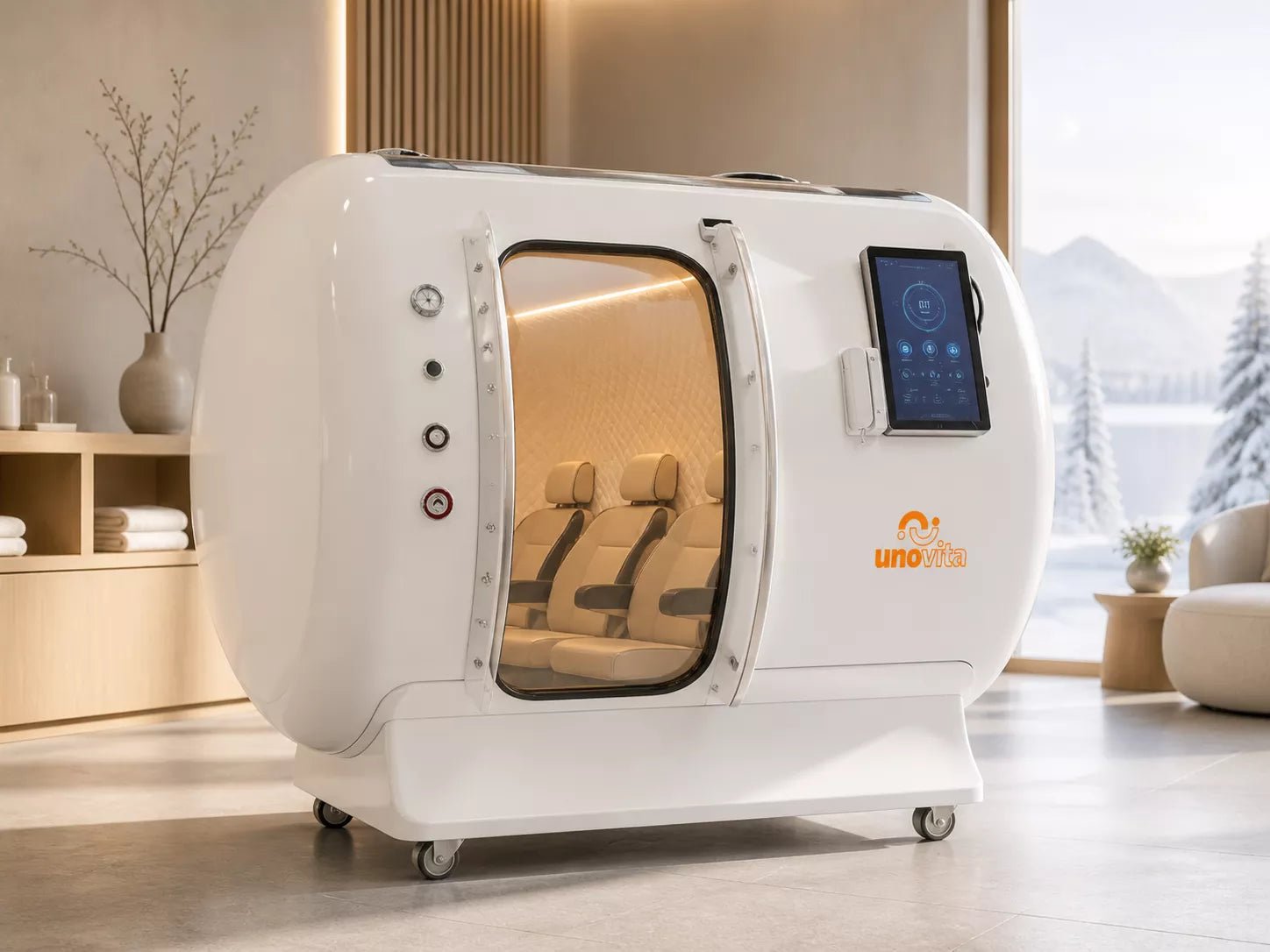

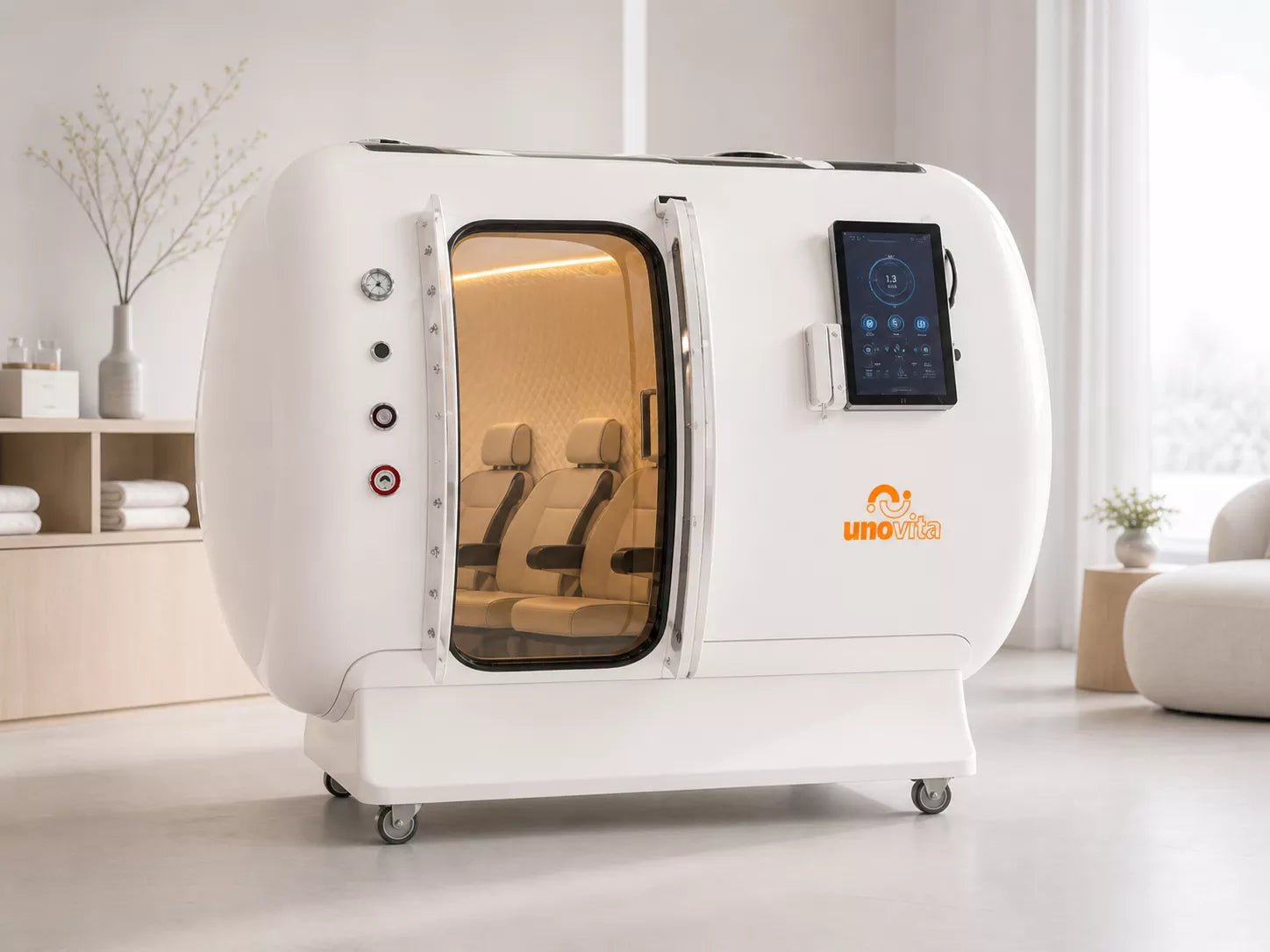

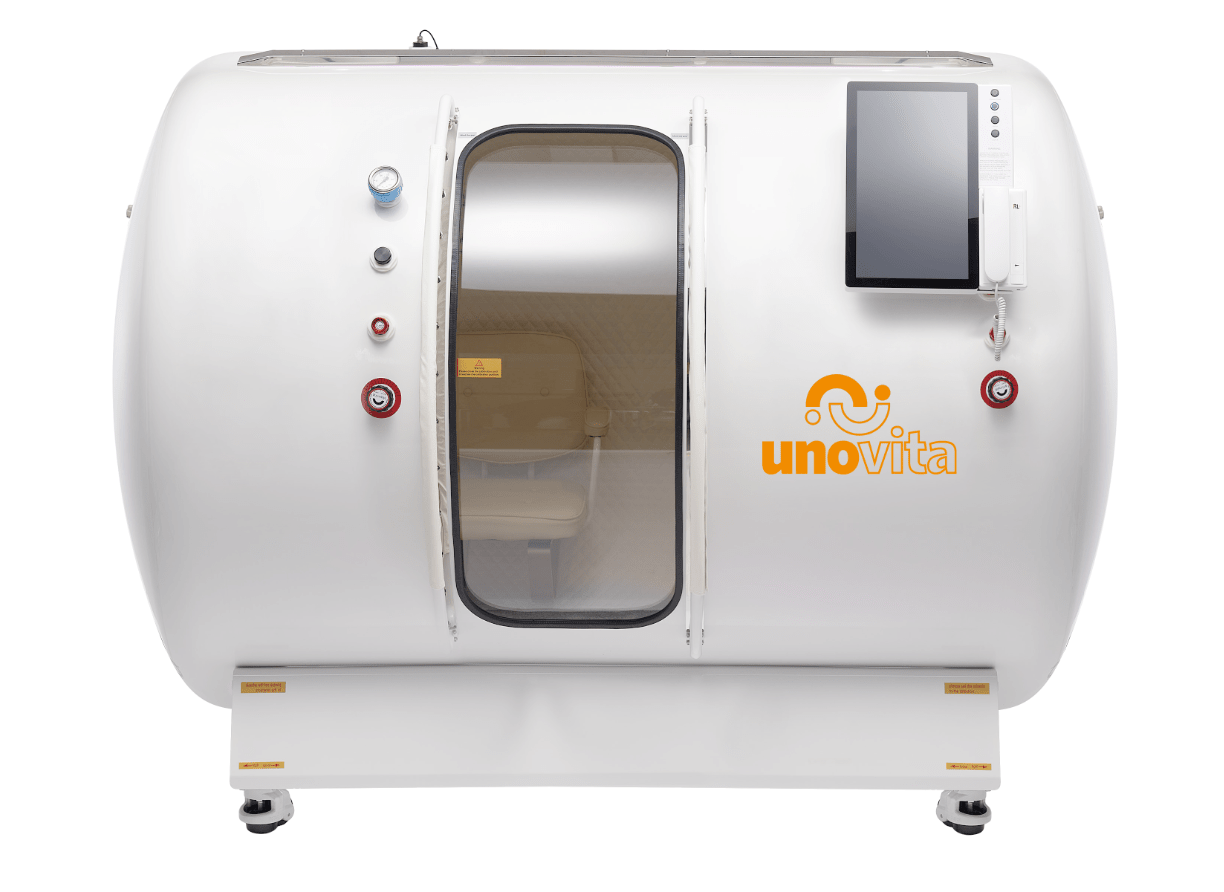

Uno Vita – Macypan HE5000Plus 2.0 ATA hard-shell multiplace HBOT chamber

Uno Vita – Macypan HE5000Plus 2.0 ATA is a large, professional hard-shell multiplace HBOT chamber developed for environments that want high capacity, premium comfort and a more exclusive user experience than traditional one-person pressure chambers. The model is the largest and most luxurious multiplace model in Macypan's HE5000 series and is particularly relevant for clinics, spas, hotels, fitness centres, sports environments, recovery centers and commercial wellness concepts.

Note! The images may differ, the system may be delivered in slightly different configurations, colors and furnishings.

The HE5000Plus has been developed for 4 people sitting or semi-lying, with the possibility of 4–5 users depending on the layout, comfort requirements and selected interior solution. The interior configuration can be customized with beds, benches, four seats, a sofa/lounge setup or motorized captain's chairs. This makes the model very flexible for professional environments that want to offer a premium HBOT experience with high capacity, strong visual value and a more comfort-oriented user journey.

Why choose Uno Vita - Macypan HE5000Plus 2.0 ATA?

Uno Vita – Macypan HE5000Plus 2.0 ATA is developed for players who want more than a standard HBOT chamber. This is a large multiplace solution with flexible furnishings, professional presentation and the option to create a separate premium HBOT room inside the chamber. Instead of a single lying chamber, the HE5000Plus can be configured for multiple users and different experiences, from clinic and recovery use to spa, lounge, sports recovery and high-end wellness.

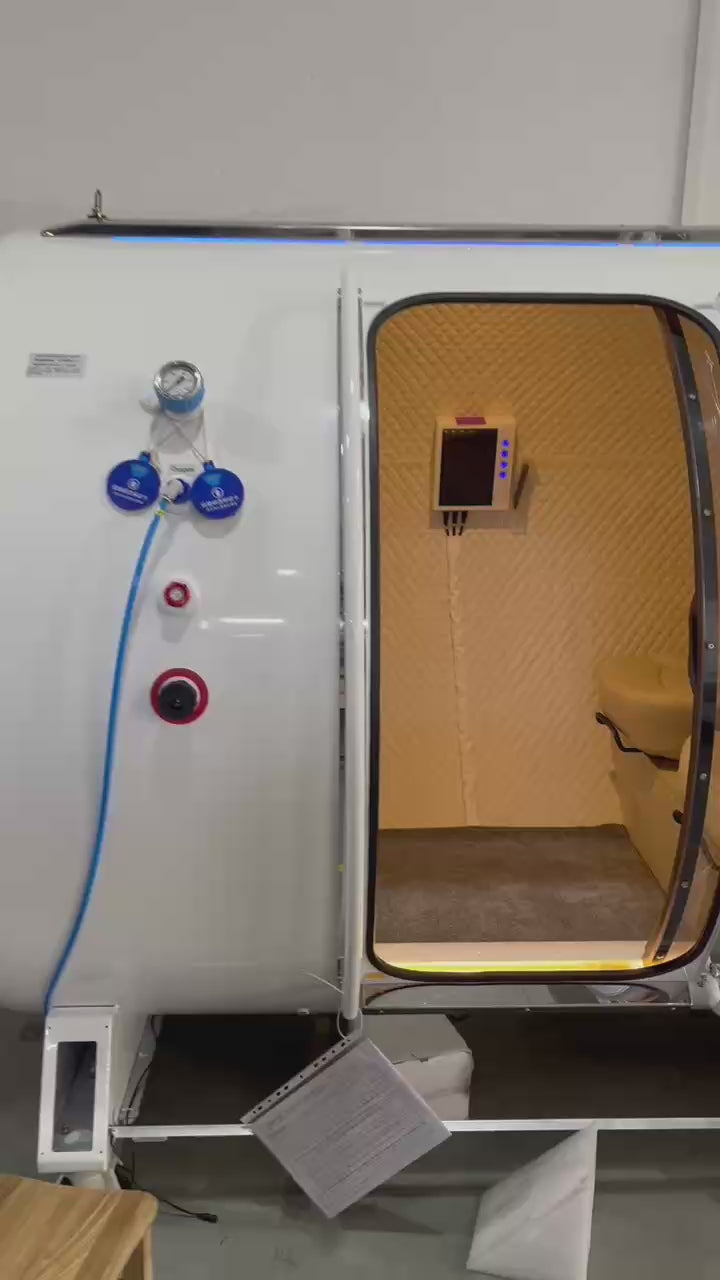

The model has a large linear sliding door with a door-closing sensor, which makes entry and exit easier and provides extra control before pressurisation. The rust-free, integrated construction is stated to be formed without joints, with high durability and reduced noise when pressure increases. The manufacturer also describes several noise-reducing technologies and operating noise of ≤45 dB, which is a strong comfort argument for spas, clinics, hotels and commercial wellness environments.

Main benefits

• Large hard-shell multiplace HBOT chamber
• Uno Vita Configuration: 2.0 ATA
• Pressure range stated by manufacturer: 1.0–2.0 ATA
• Designed for 4 people sitting or semi-lying
• Can be configured for 4-5 users depending on layout and comfort requirements
• 95% oxygen purity according to manufacturer

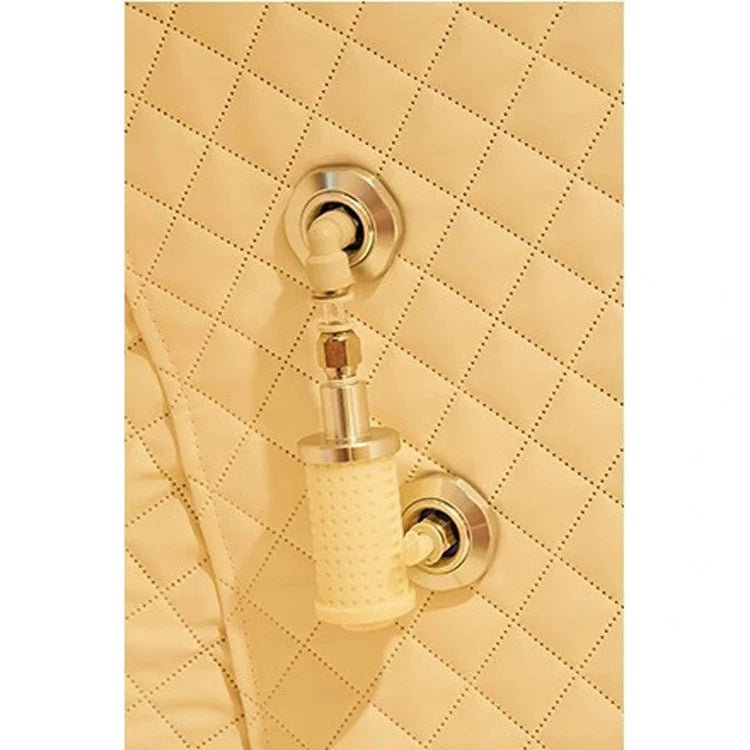

• Four oxygen outlets / four oxygen inhale settings in the chamber
• 2 × 10 L oxygen concentrators
• 240 L/min airflow
• 2580 × 1651 × 1832 mm chamber size
• 500 × 1160 mm door size
• Stainless construction / stainless steel
• Integrated construction without joints according to the manufacturer
• Large linear sliding door with door-close sensor
• Touch screen / touchscreen board
• Shows oxygen concentration, oxygen flow, pressure, humidity and temperature
• Large transparent PC/polycarbonate door
• CO₂ removal/venting system
• Anion air purification / negative ion system
• Effective cooling and humidity reduction
• Oil-free, efficient compressor
• Noise reduction system, manufacturer states ≤45 dB operating noise
• Lockable, non-slip metal wheels
• Two-way communication system
• Emergency valve that the manufacturer describes with a pressure reduction of approx. 20 seconds
• Dual pressure gauges and digital display

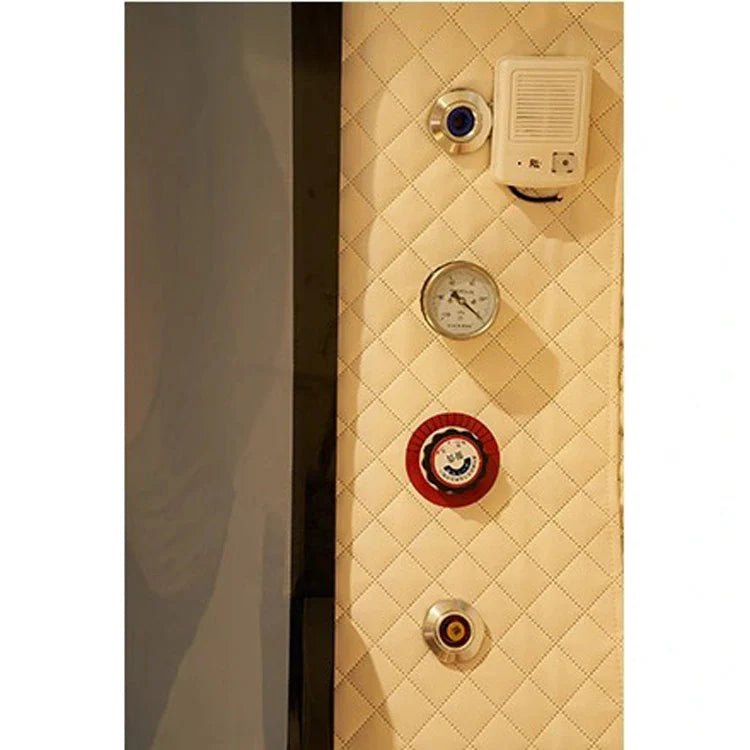

• Triple pressure display with internal mechanical, external mechanical and digital pressure display
• Automatic pressure relief valves
• Manual pressure relief valve with internal and external control
• Five-stage progressive pressure relief according to manufacturer
• Option for TV, sound, Bluetooth and holder for screen/tablet/phone
• Possibility of automatic lifting chair / motorized chair as an option
• Color, logo, language, parameter and performance customization can be offered by agreement
• Suitable for clinics, spas, hotels, sports, recovery and premium wellness

Technical key data

Model: Uno Vita – Macypan HE5000Plus
Manufacturer: Shanghai Baobang Medical Equipment Co., Ltd.
Type: Hard-shell multiplace HBOT chamber
Category: Large hyperbaric oxygen chamber / hard type multiplace chamber
Uno Vita Configuration: 2.0 ATA
Stated pressure range: 1.0-2.0 ATA
Capacity: 4 people, with the possibility of 4–5 people depending on the layout and routines
Oxygen purity: 95% according to manufacturer
Oxygen intake: Four oxygen inhale settings / four oxygen intakes
Chamber size: 2580 × 1651 × 1832 mm
Door size: 500 × 1160 mm
Net chamber weight: approx. 450 kg
Material: Stainless steel
Door/window: PC / polycarbonate according to the manufacturer's material description
Movable wheels / touch screen: Yes
All-in-one machine: Enhanced air compressor + air conditioner
All-in-one machine size: 1720 × 350 × 650 mm
All-in-one machine weight: approx. 100 kg
Voltage all-in-one machine: 110/220/230/240 V
Air flow: 240 L/min
Power consumption all-in-one machine: 2200 W
Temperature range: 5–15 °C
Oxygen concentrators: 2 units × 10 L
Oxygen concentrator size: 47 × 46 × 69 cm per unit
Oxygen concentrator weight: approx. 28 kg per unit
Voltage oxygen concentrators: 110/220/230/240 V
Power consumption oxygen concentrator: 500 W per unit
Oxygen flow: 10 L per concentrator, 2 × 10 L system
Oxygen intake: Oxygen mask or oxygen headset
Operating noise: The manufacturer states ≤45 dB, depending on the installation and operating environment
Use position: Sitting, semi-lying, lounge, bed solution or customized layout
Possible interior equipment: TV, sound, Bluetooth, screen holder, tablet holder, phone holder, electric chair and other comfort configuration by agreement
Area of use: Clinic, spa, hotel, recovery centre, sports environment, fitness centre, professional wellness and larger premium private installations
Manufacturer-specified certifications/documentation: CE / ISO / EMC / TUV / SGS, ISO9001 and ISO13485 mentioned by manufacturer. Complete compliance documentation must be verified before import, publication and professional use.

What is included?

The manufacturer describes the HE5000Plus system as a complete setup consisting of chamber cabin, enhanced air compressor, air conditioner and 2 × 10 L oxygen concentrators. For Uno Vita, this should be formulated as the chamber being delivered complete in accordance with the chosen delivery setup and final order confirmation. Options, special configurations, layout and extra comfort equipment must be clarified when ordering.

Layout and interior configurations

The HE5000Plus can be adapted according to the area of use. The manufacturer provides several layout options:

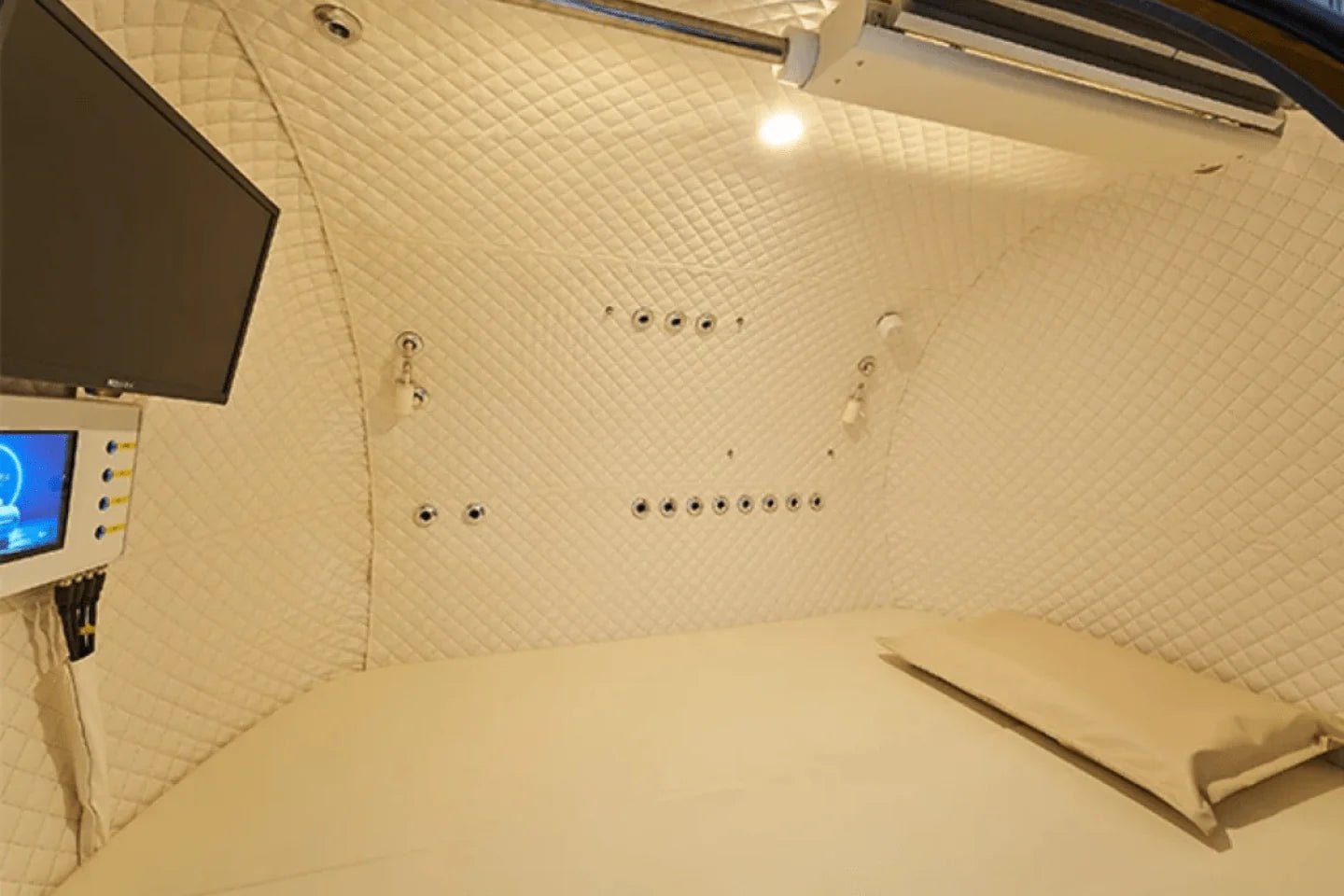

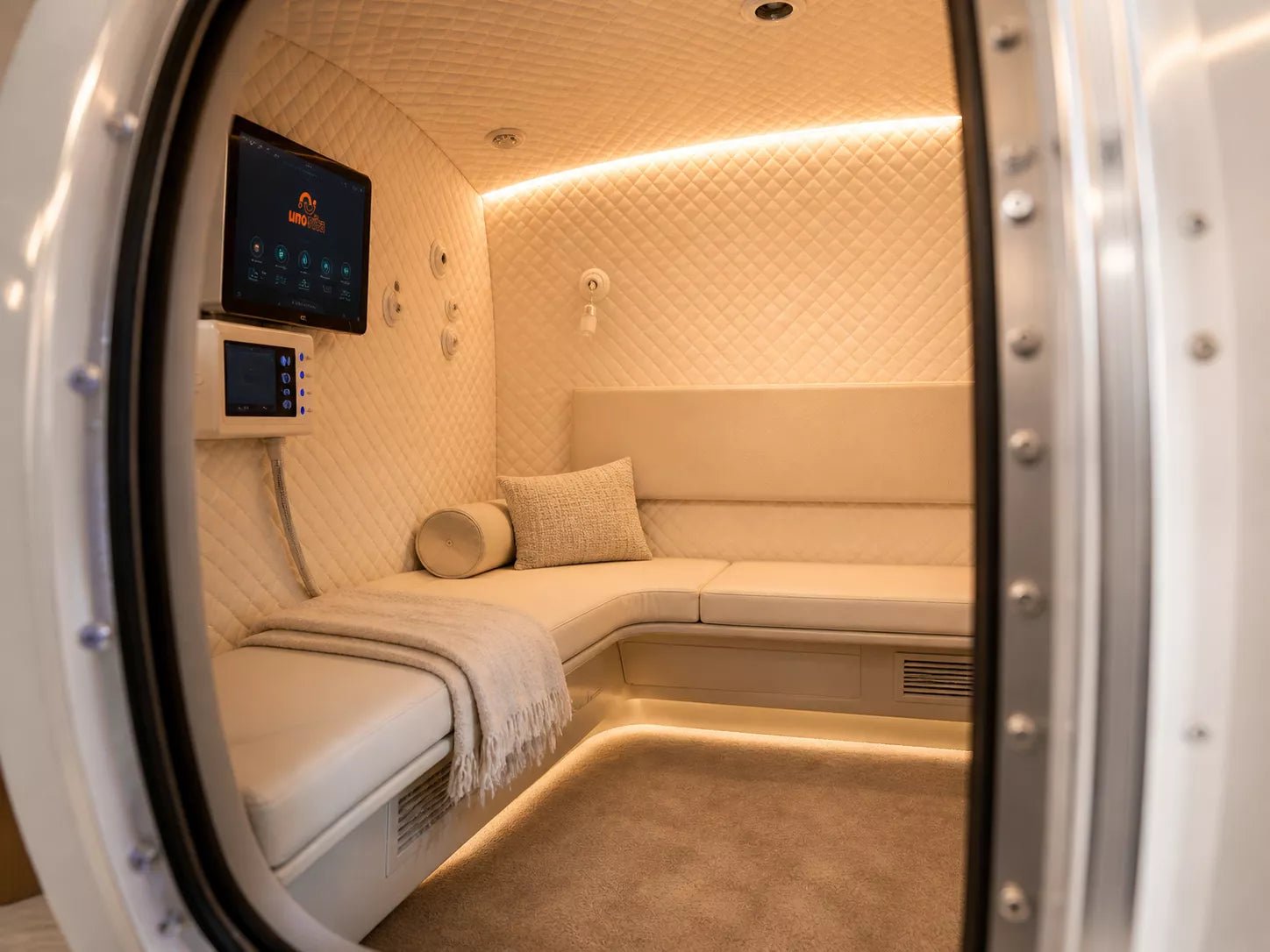

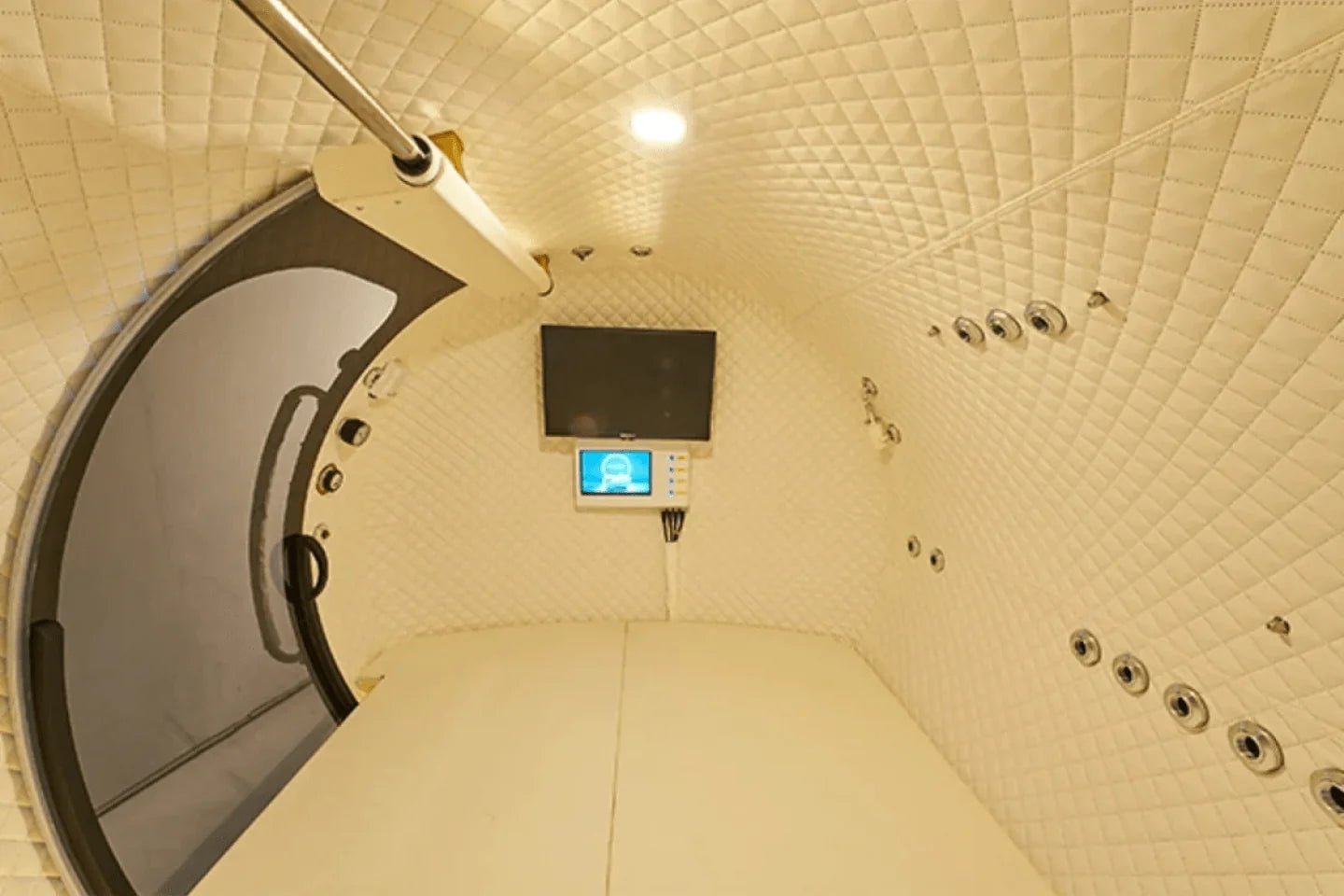

Bed type with mattress for up to 3 people

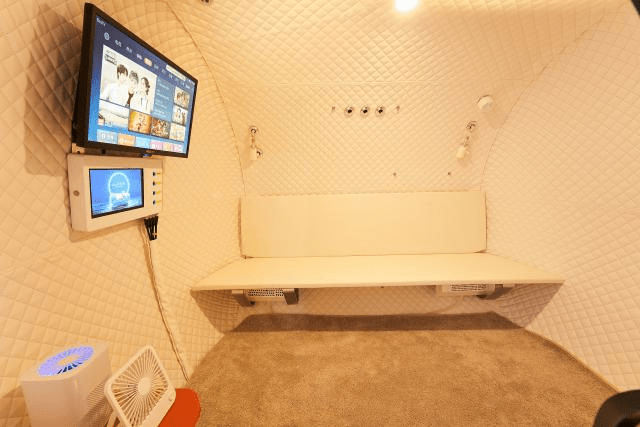

Benches for several users, typically 4–5 people

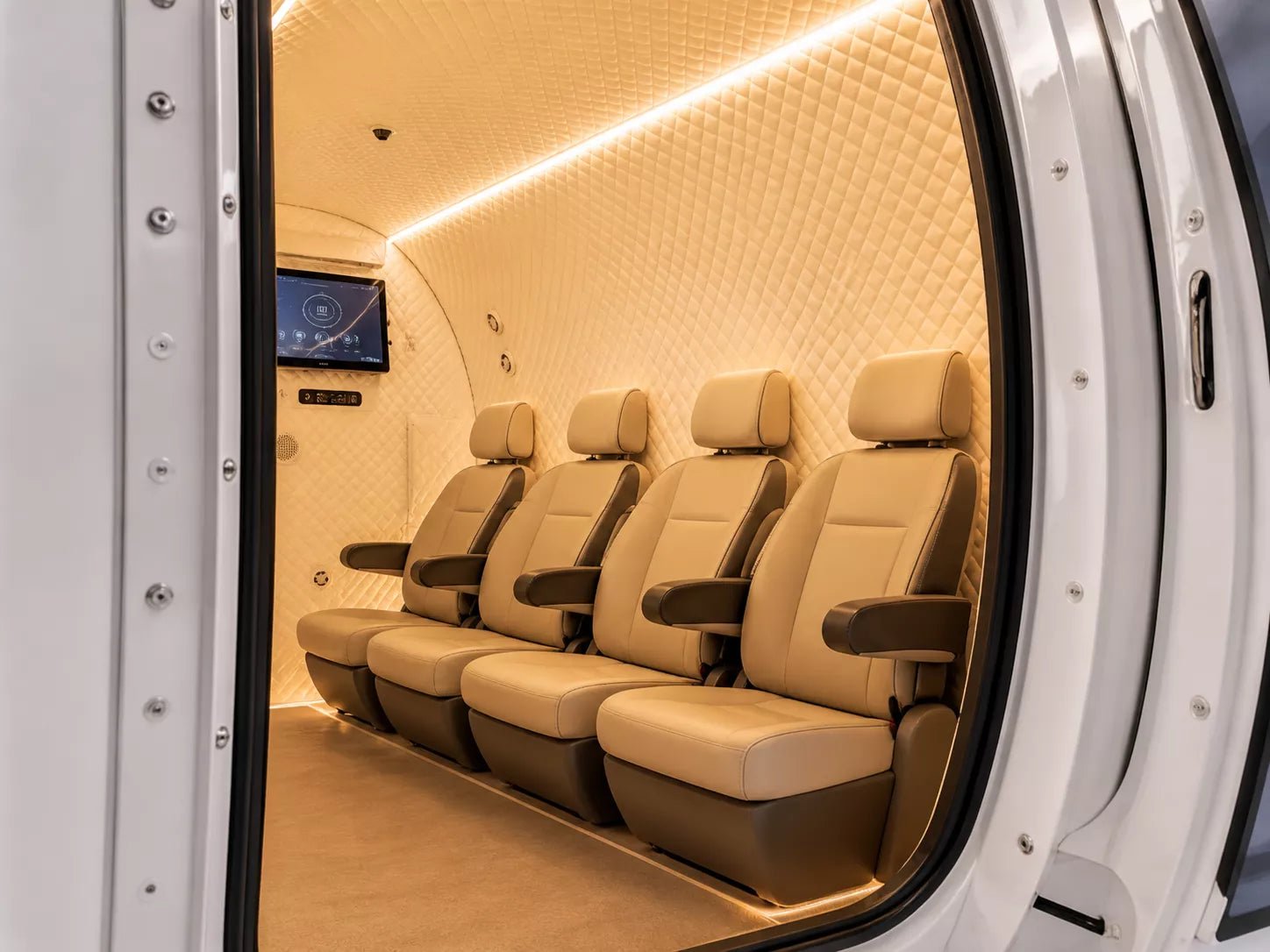

Quadruple seats for 4 people

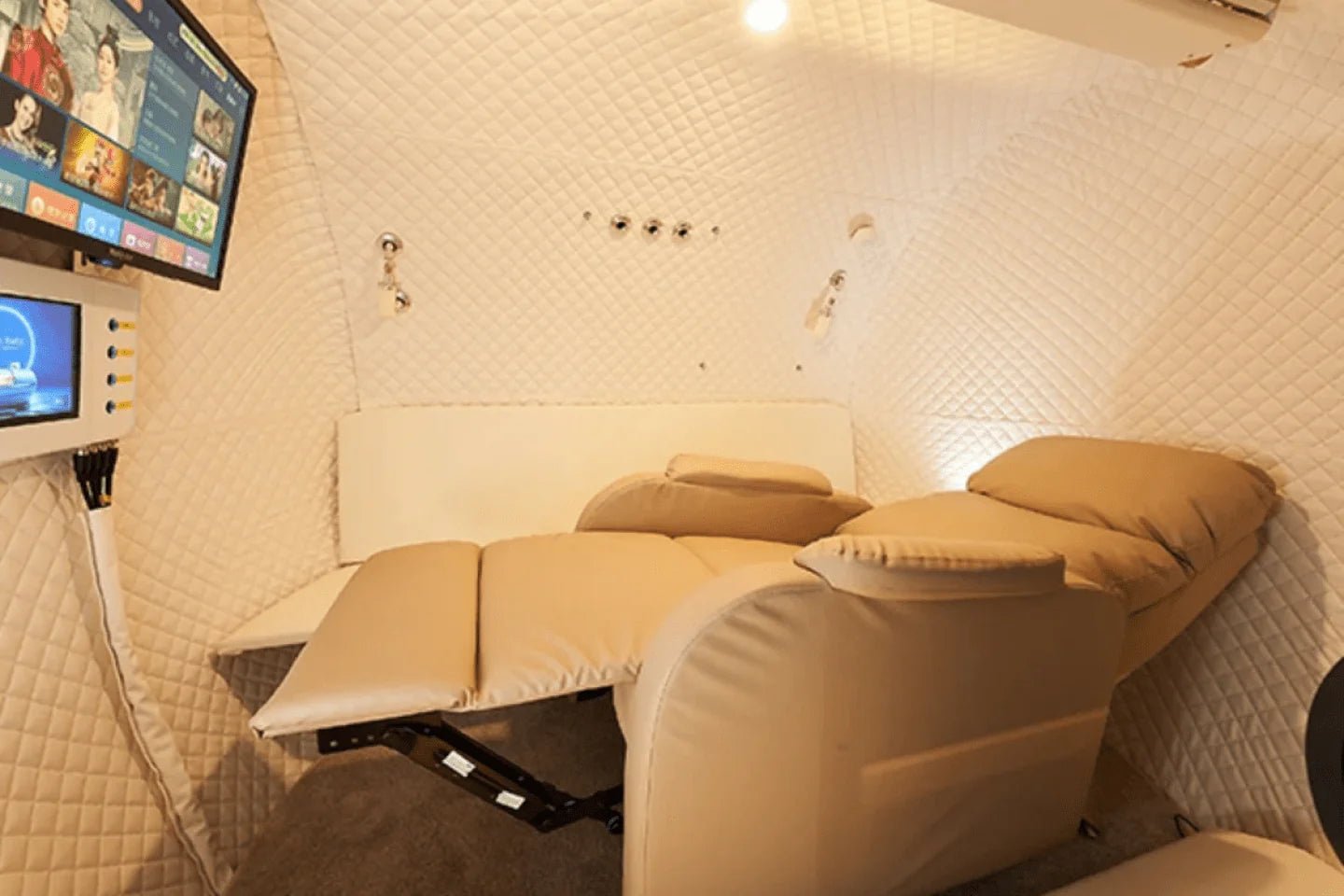

Luxurious sitting/lounge sofas for 2 people

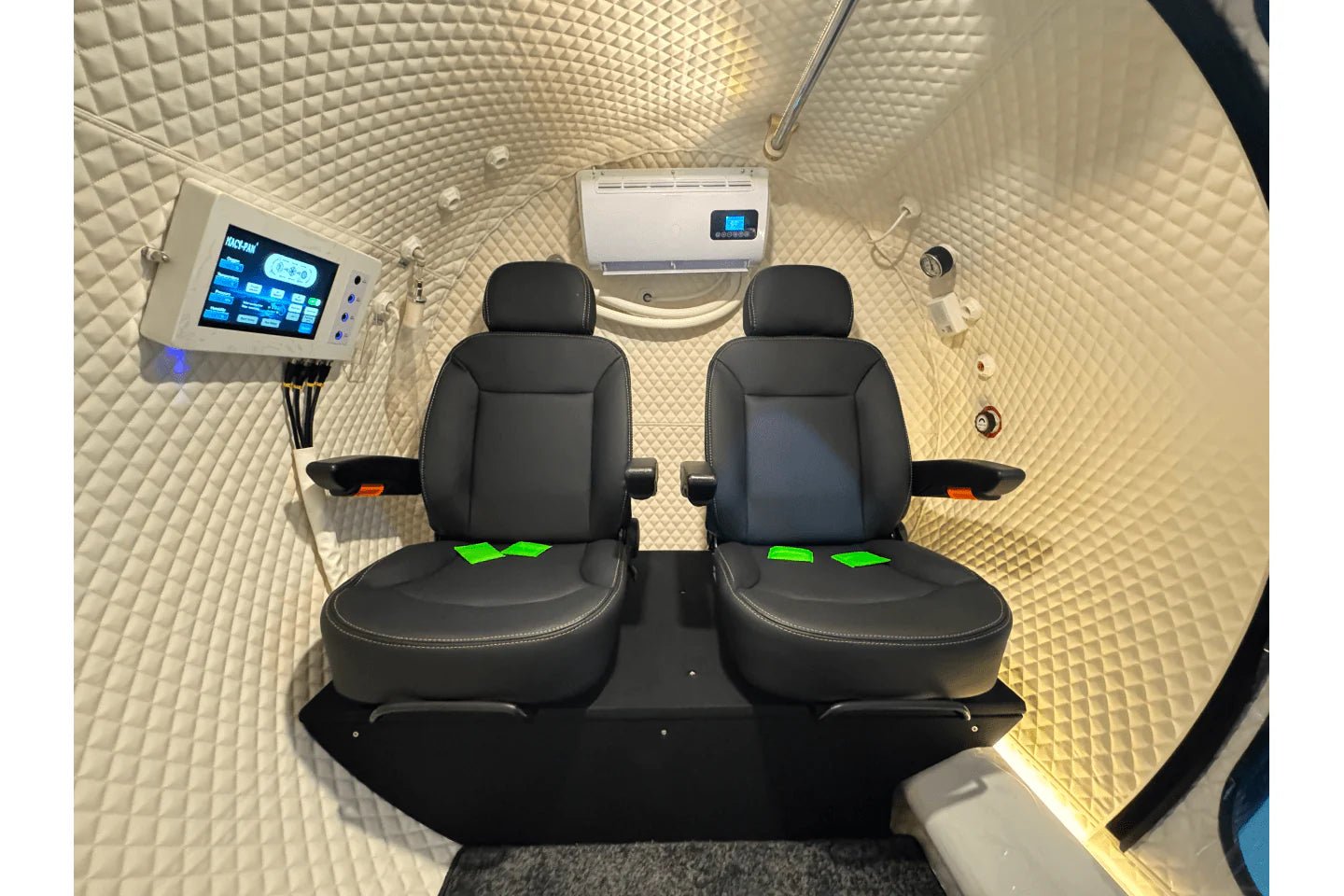

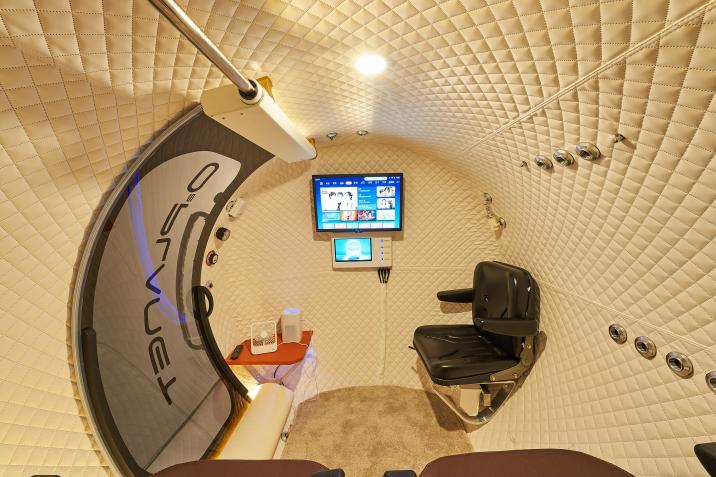

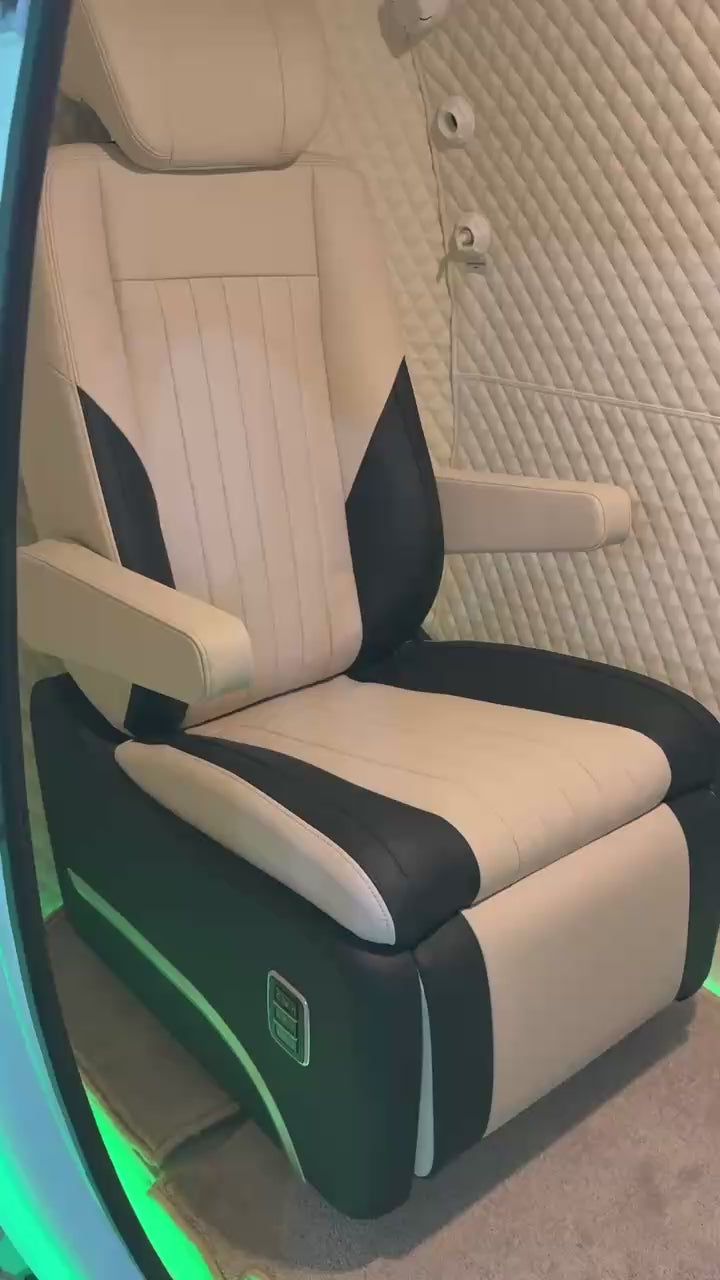

Motorized captain's chairs for 4 people

For Uno Vita, this should be described as options or configurations by agreement, so that the final solution is adapted to the room, target group, operation and desired customer experience.

Materials and construction

Uno Vita – Macypan HE5000Plus is specified with stainless construction and integrally shaped chamber cabin without joints. The manufacturer highlights this as a solution for high durability, better stability and less noise when pressure builds up. The round chamber structure is described as developed for balanced pressure distribution and better shape stability than traditional square chambers.

The transparent door/window is made of PC / polycarbonate according to the manufacturer's material description. Polycarbonate is used in many technical applications where impact strength, clarity and dimensional stability are important.

Large sliding door and accessibility

The large linear sliding door is a central part of the HE5000Plus experience. The door has a door-closing sensor and is designed for easier entry and exit. The large transparent surface provides better visibility, more light and a less enclosed experience for the users, while the operator can observe the chamber from the outside.

Air quality, CO₂ handling and anion air purification

The HE5000Plus is specified with a carbon dioxide removal/venting system to reduce CO₂ build-up in the chamber. The model is also described with an anion air purification / negative ion system to contribute to a fresher chamber environment. For the Uno Vita, this should be described as comfort and air quality functions, not as medical effects. Claims about viruses, bacteria or disease prevention should not be published.

All-in-one machine and cooling system

The all-in-one machine combines efficient air cooling and an improved air compressor. The manufacturer describes water cooling system with adjustable temperature and air direction, humidity reduction, drier and cleaner air experience, wide cooling fan outlet for better cooling efficiency, high performance motor, multi-cylinder air intake, noise reduction and fast heat dissipation. The compressor is oil-free, and the manufacturer describes that the compressed air does not contain oil-related particles from the compressor.

Oxygen concentrators

The HE5000Plus comes with 2 × 10 L oxygen concentrators. The manufacturer states 95% oxygen purity, 10 L flow per concentrator, 500 W power consumption per unit and oxygen supply via oxygen mask or oxygen headset. The chamber has four oxygen outlets / oxygen inhale settings, so that several users can receive oxygen at the same time, depending on the chosen use and configuration.

Noise reduction and comfort

Macypan states several noise reduction technologies and operational noise of ≤45 dB. This makes the HE5000Plus particularly relevant for spas, clinics, hotels and recovery centers where peace, comfort and a premium experience are important. Built-in lighting, ambient lighting, the option for TV/sound/Bluetooth and motorized chairs can contribute to a more exclusive and pleasant user experience.

Communication and control

The HE5000Plus is described with a two-way communication system and touch screen that shows oxygen concentration, oxygen flow, pressure, humidity and temperature. Internal and external control panels make it possible to control start, stop and relevant operating parameters. This is particularly important in professional environments where operator and user must be able to communicate and follow along during the session.

Installation and operation

The manufacturer describes the chamber as modular, easy to transport, install and operate, with labeled air connections, non-slip lockable wheels and mirrored controls inside and out. For the Uno Vita, this should be formulated soberly: installation and training must take place in accordance with the delivery set-up, manual and local safety procedures. Professional customers should plan rooms, electricity, ventilation, flooring, access, training and service before ordering.

Security and control functions

The HE5000Plus is described with eight safety systems and six quality inspections. The eight safety features include door leak detection, door-close sensor that detects whether the door is properly closed, four sets of automatic pressure valves for constant pressure and prevention of abnormal pressure, power failure alarm, triple pressure display with internal mechanical pressure gauge, external mechanical pressure gauge and digital display, emergency valve for rapid pressure reduction, manual pressure relief valve with internal and external operation, five-stage progressive pressure relief, CO₂ venting and internal/external control panels.

The six quality inspections include raw material inspection, assembly test, 72 hour aging test, full system test with machines, final inspection and package inspection before transport.

These functions provide important technical and commercial quality arguments, but do not replace training, maintenance, risk assessment and correct use.

Certifications and documentation

The manufacturer states CE, ISO, EMC, TUV and SGS, as well as ISO9001 quality system and ISO13485 for medical device quality management. For Uno Vita, this should be referred to as manufacturer-provided documentation, and the complete Declaration of Conformity, test documents, manuals, compliance documentation and relevant EU/EEA assessment should be verified before marketing, import and professional use.

Customization options

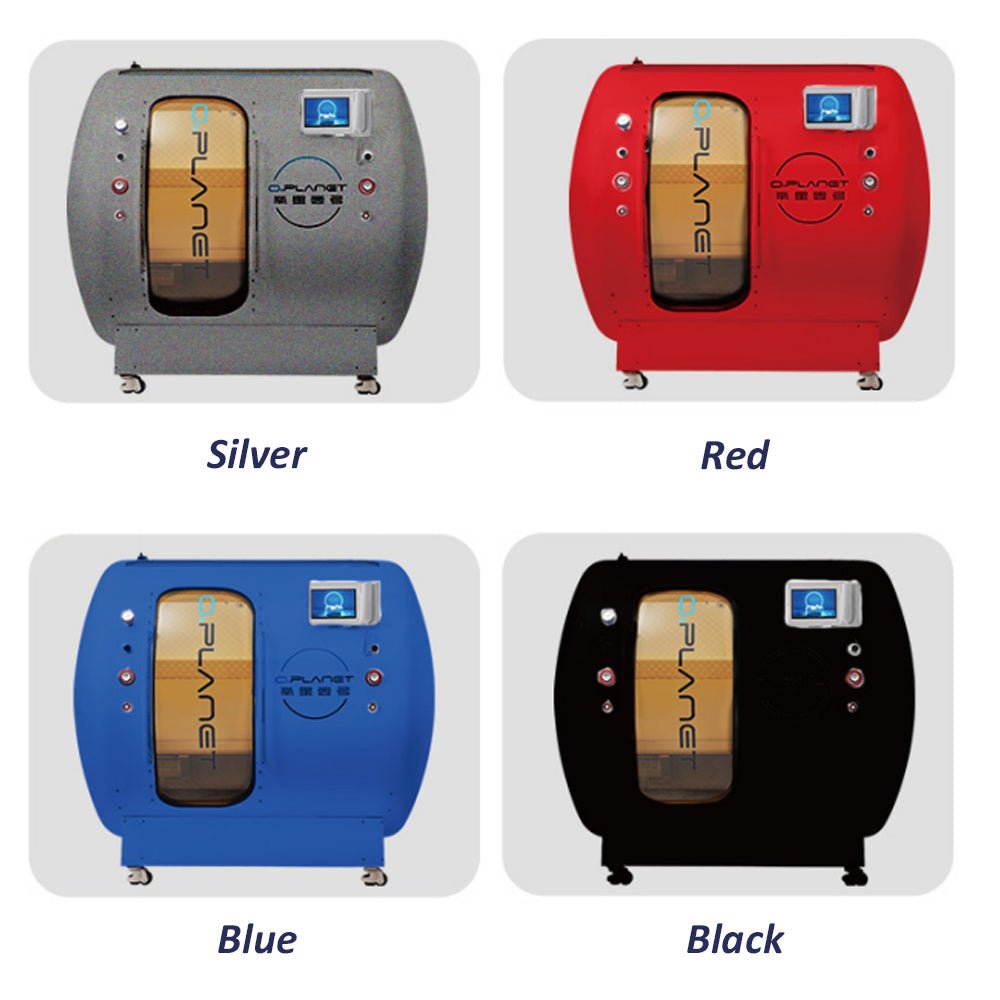

The manufacturer describes several customization options, including color and logo customization, internal layout, language customization for the system, and parameter/performance customization as needed. For Uno Vita, this is relevant for clinics, spas, hotels and larger players who want a customized premium HBOT concept.

Difference to HE5000 and HE5000 Mini

The HE5000Mini is a more compact model, the HE5000 is the standard model, and the HE5000Plus is the largest and most luxurious model in the range. The HE5000Plus is best suited when the customer wants maximum interior space, higher visual value, flexible layout and professional capacity.

Difference to HE5000-Fort

The HE5000-Fort is a more compact hard-shell sitting model for 1-2 users. The HE5000Plus is a larger 4-person / 4-5-person multiplace solution with significantly more interior volume, more layout choices and greater commercial capacity. HE5000-Fort is suitable when the customer wants a premium 1-2-user experience, while HE5000Plus is suitable when the goal is greater capacity and a more extensive professional installation.

Suitable for

Uno Vita – Macypan HE5000Plus 2.0 ATA is suitable for clinics, spas, wellness centers, recovery rooms, gyms, hotels, sports environments, high-end private installations and professional players who want a large multiplace HBOT chamber with high comfort, flexible furnishings and a premium profile.

Recommended positioning on Uno Vita

This product should be positioned as a large premium hard-shell multiplace HBOT chamber for wellness, oxygen focus, breathing, relaxation, recovery routines, professional wellness and commercial recovery. It should not be marketed with claims to diagnose, treat, cure or prevent disease.

User experience

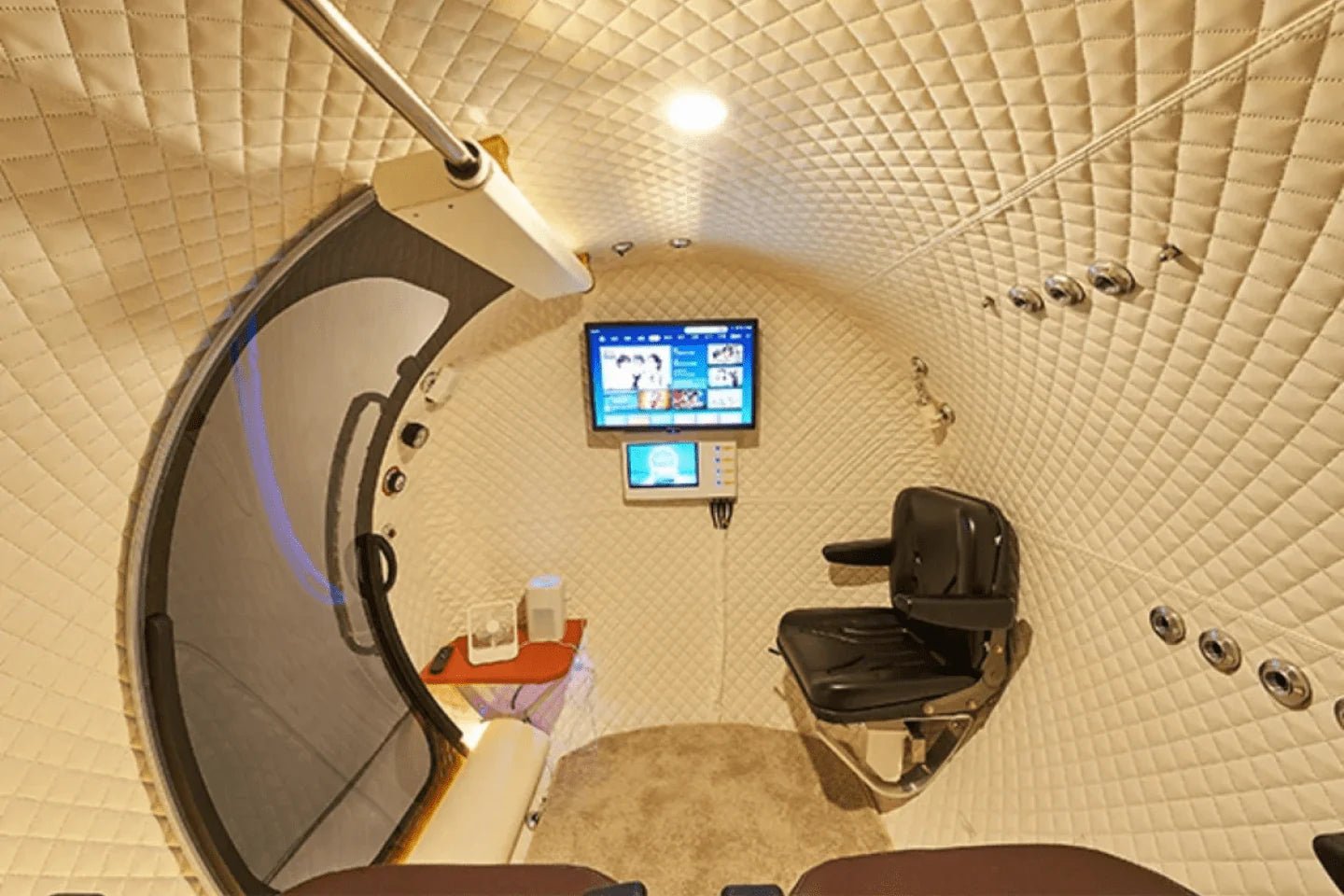

During a session, users stay in a large pressurized hard-shell chamber with flexible furnishings. Depending on the configuration, the chamber can be used with a seating arrangement, lounge arrangement, semi-recumbent chairs, bed solution or motorized captain's chairs. The large sliding door, the transparent construction, the air management, the lighting and the possibility of TV/Bluetooth can contribute to a more comfortable and premium experience in longer sessions.

Four important aspects of HBOT use

When using HBOT, four factors in particular should be considered: duration per session, frequency of use, chamber pressure and oxygen content. These points should always be adapted to the user, purpose, tolerance, safety procedures, the manufacturer's manual and any advice from qualified healthcare personnel.

FAQ

What is the Uno Vita – Macypan HE5000Plus?
Uno Vita – Macypan HE5000Plus is a large hard-shell multiplace HBOT chamber with 2.0 ATA, 4-person capacity, flexible layout options, large sliding door, 95% oxygen purity, four oxygen outlets, all-in-one machine, 240 L/min airflow and 2 × 10 L oxygen concentrators.

Is this the 2.0 ATA version?
Yes. Uno Vita describes this model as the 2.0 ATA version. The manufacturer states a pressure range of 1.0–2.0 ATA.

Is this the 10 liter version?
Yes. The HE5000Plus is described with 2 × 10 L oxygen concentrators. Each concentrator is specified with 10 L flow and 95% oxygen purity.

How many people can use the HE5000Plus?
The manufacturer describes the model as a 4-person chamber. Depending on the layout, use for 4–5 people is also described. For Uno Vita, the wording "4 people, possibly 4-5 people depending on the layout, comfort requirements and local routines" is recommended.

What layout options are available?
The manufacturer describes the bed solution with mattress, benches, quadruple seats, luxurious sitting/lounge sofas and motorized captain's chairs. Final layout should be clarified when ordering.

Does the HE5000Plus have CO₂ handling?
Yes. The manufacturer describes a carbon dioxide removal device / CO₂ venting to reduce the accumulation of carbon dioxide in the chamber.

Does the HE5000Plus have TV and Bluetooth?
The manufacturer describes that TV, sound, Bluetooth stereo and other equipment can be installed in the chamber. This should be clarified as an option or part of the chosen configuration.

What differentiates the HE5000Plus from the HE5000-Fort?
The HE5000-Fort is a more compact 1-2 user seated model. The HE5000Plus is a larger 4-person / 4-5-person multiplace solution with a much larger interior volume and more extensive commercial capacity.

Can the HE5000Plus be customized with Uno Vita logo and colors?
The manufacturer describes color and logo customization as possible. For Uno Vita, this should be handled after agreement and final design approval.

Can the HE5000Plus be used in professional environments?
Yes. The model is particularly relevant for clinics, spas, hotels, recovery rooms, sports environments and professional wellness. Professional use requires planning of rooms, electricity, ventilation, training, safety routines, documentation and service.

Important information about the use of HBOT and pressure chambers
The information on this page is general product information and should not be understood as medical advice. Hyperbaric oxygen, pressure chambers and HBOT equipment are not intended to diagnose, treat, cure or prevent disease outside approved medical frameworks and relevant professional follow-up.

Pressure chambers must always be used in accordance with the manufacturer's manual, local safety procedures, current regulations and any assessment by qualified healthcare personnel. People with lung disease, pressure equalization problems, ear or sinus problems, fever, cold, recent surgery, pregnancy, severe claustrophobia, unstable blood pressure or other medical problems should clarify use before a session.

For safe operation, the chamber must be used in a clean, well-ventilated environment. Avoid oil, grease, sparks, flames, unauthorized electrical products, heat-generating devices and static-generating materials in or near the chamber. Ensure training, maintenance, antistatic routine, functioning valves, proper air supply and continuous opportunity for communication during use.
