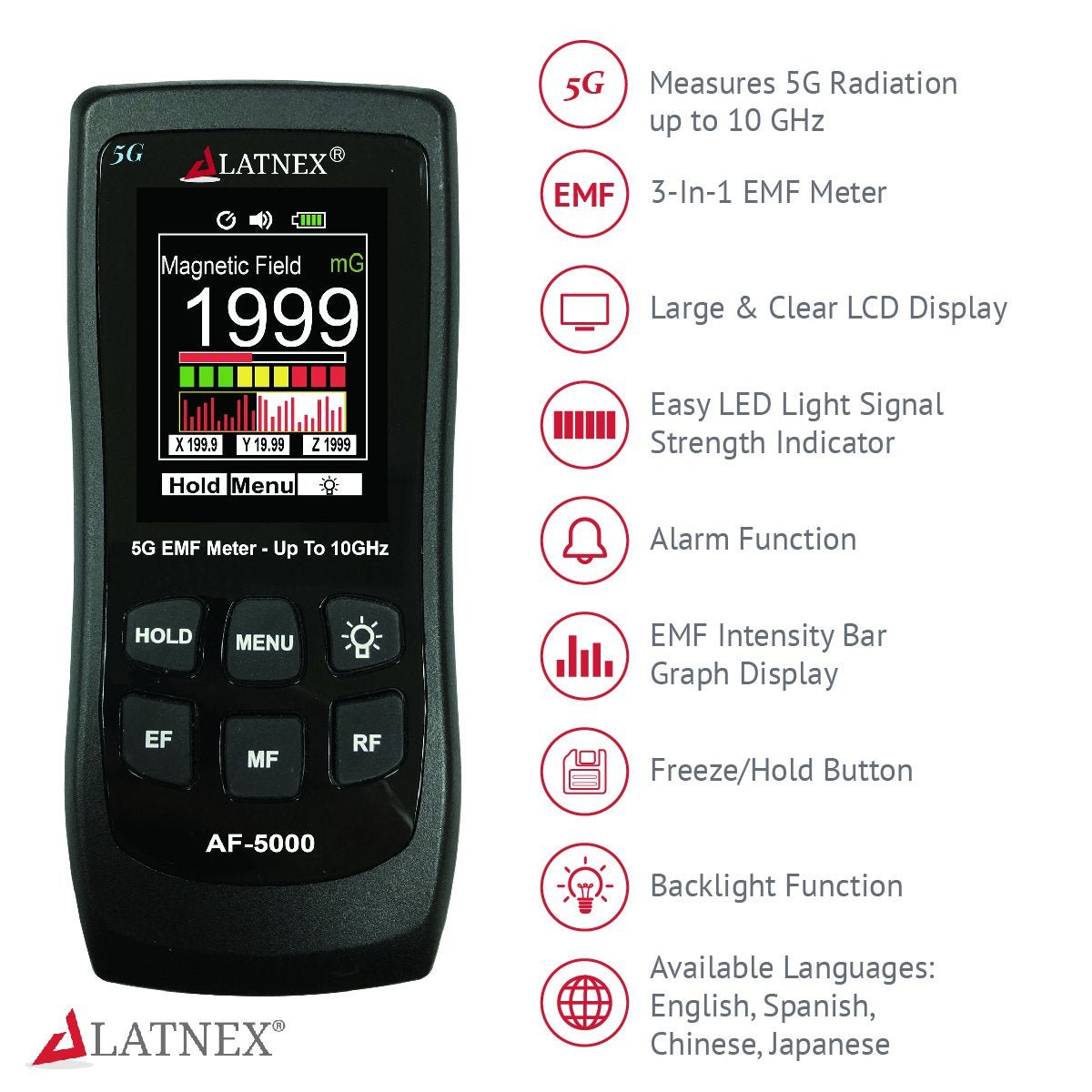

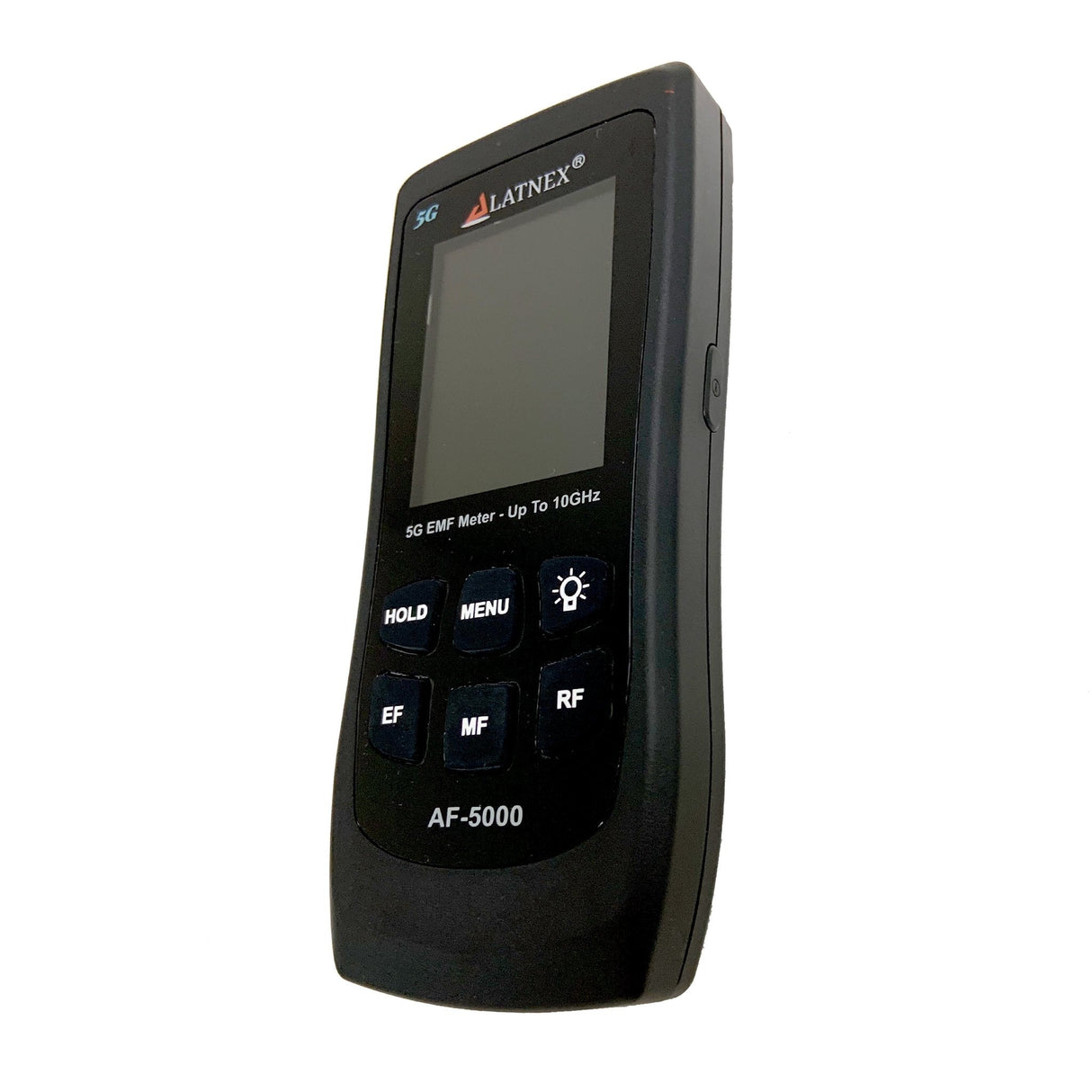

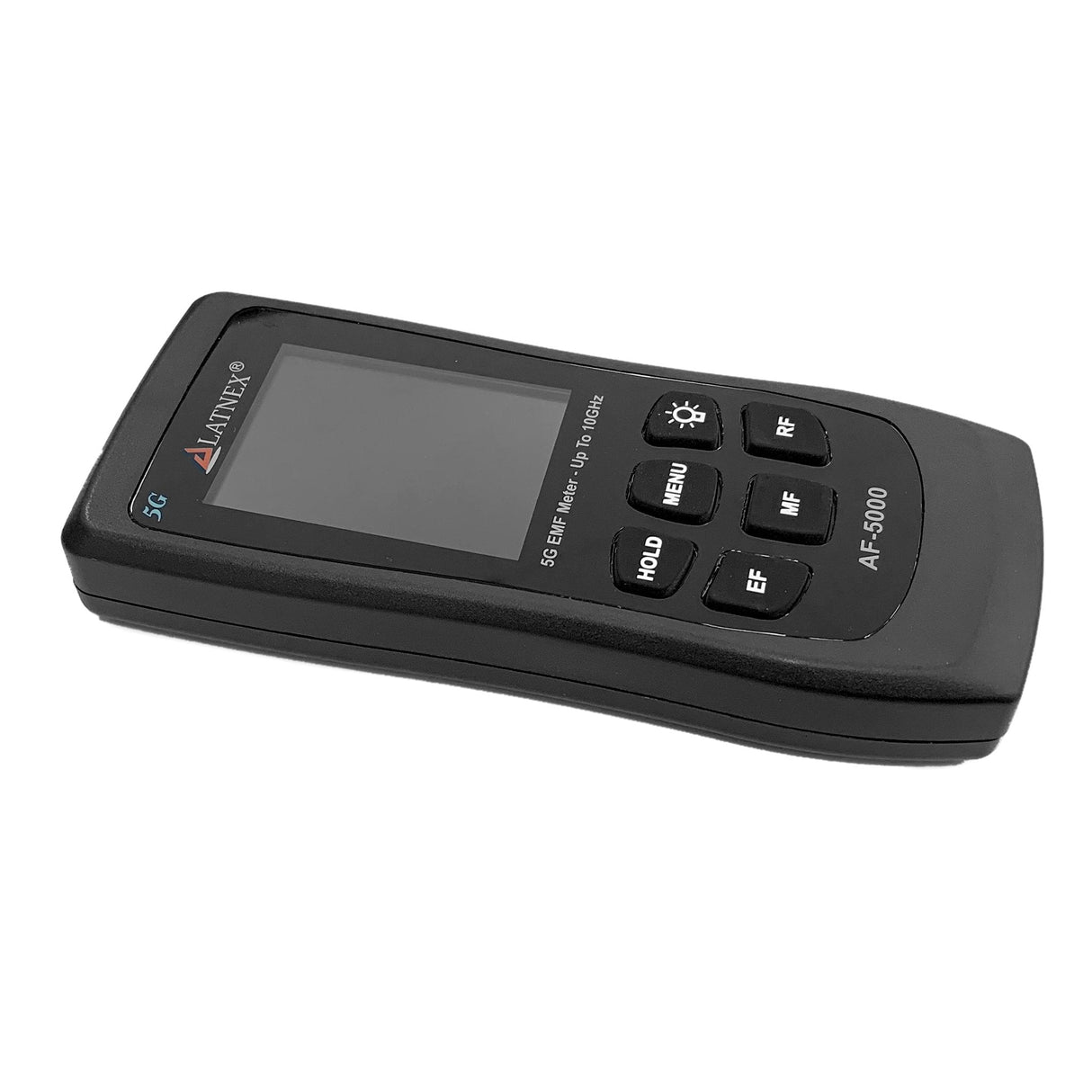

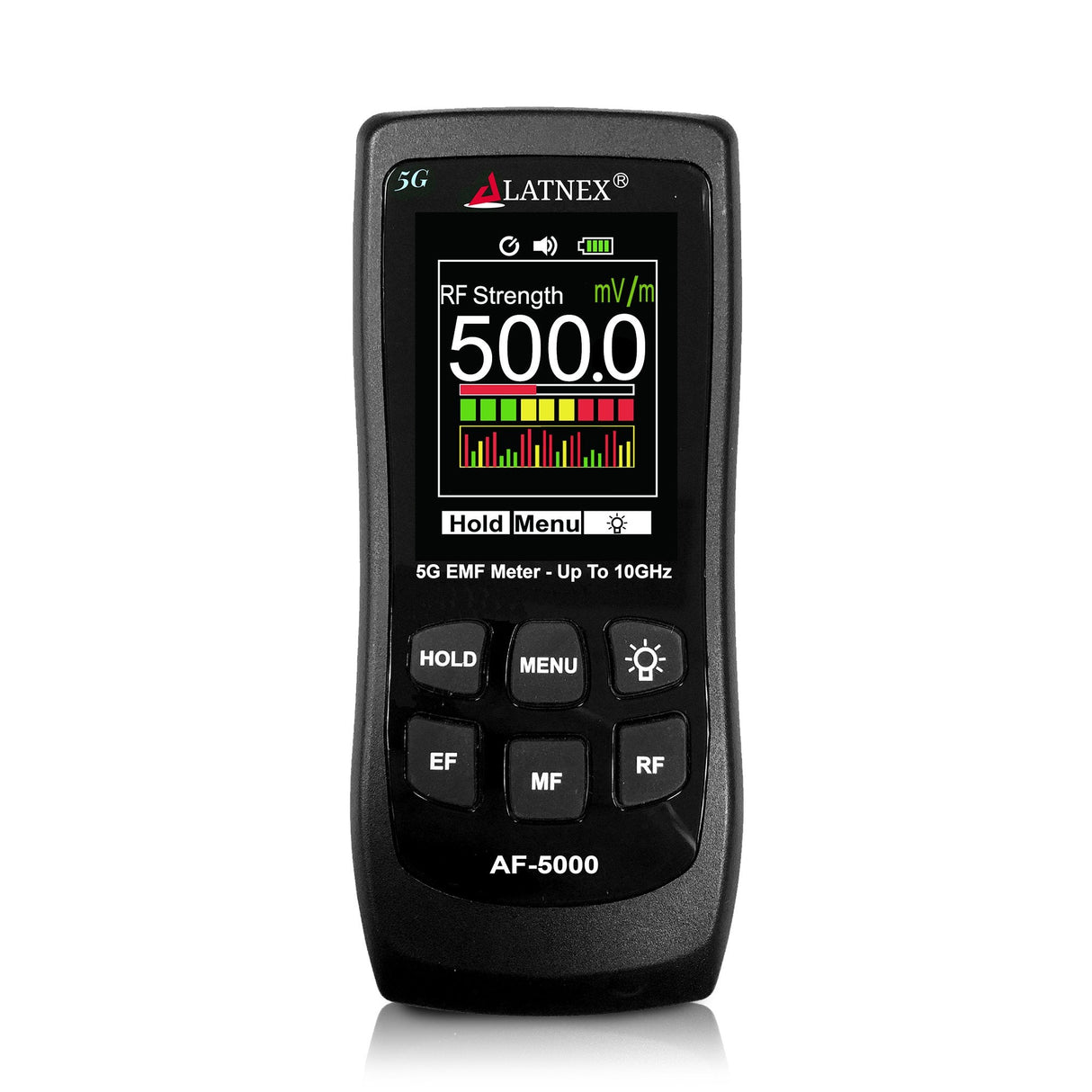

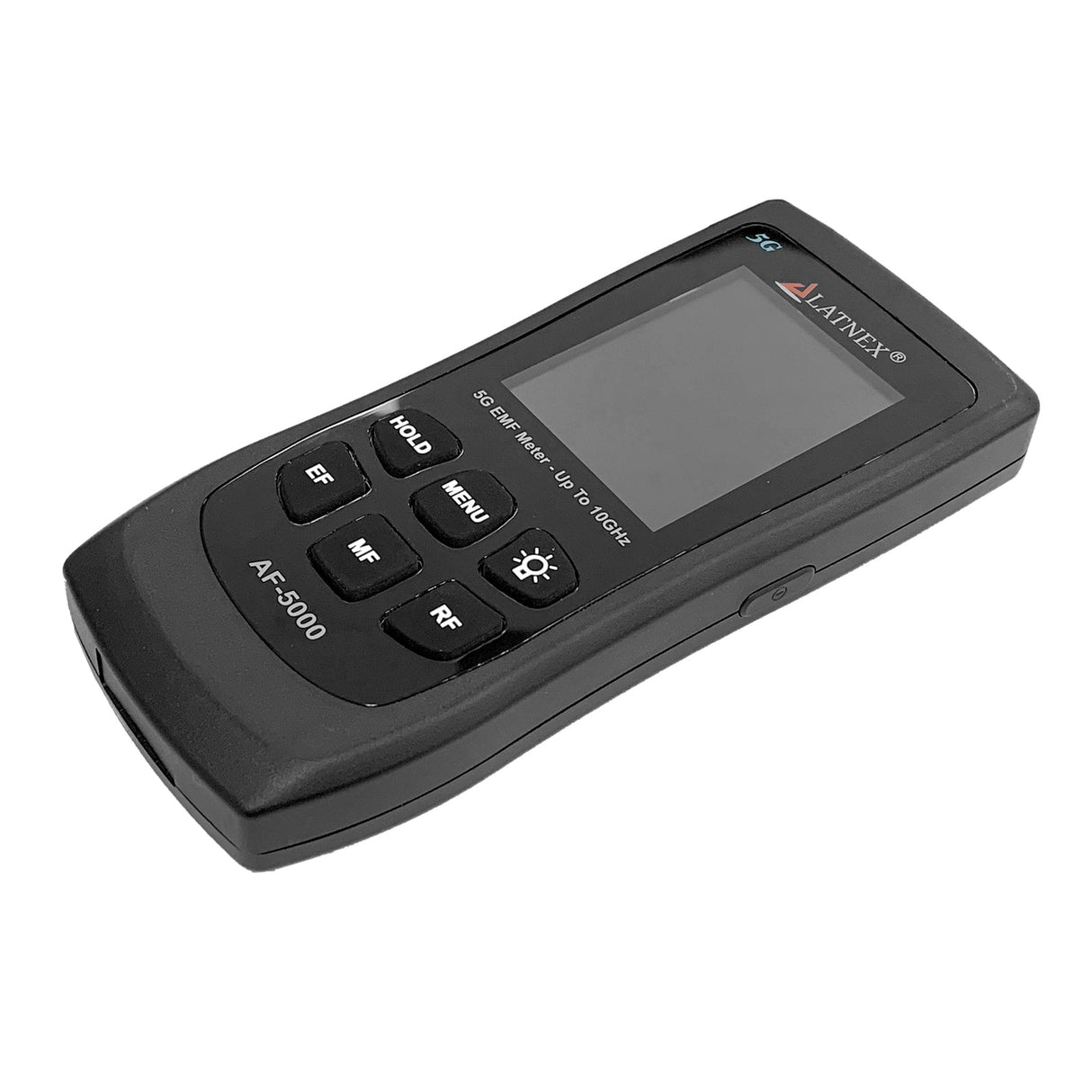

AF-5000 multifield 5G EMF meter: advanced measuring instrument for measuring electromagnetic fields

The AF-5000 multifield 5G EMF meter is a ground-breaking, compact device designed to measure electromagnetic fields (EMF), electric fields and RF strength with high precision and accuracy. This measuring instrument is particularly useful for both professionals and private individuals who wish to monitor and minimize exposure to electromagnetic radiation in their surroundings. With advanced features and a wide measurement range, the AF-5000 provides a comprehensive assessment of ambient EMF levels, including measurement of 5G radiation, low-frequency electric fields and high-frequency RF fields.

Advantages and effects of the AF-5000 multifield 5G EMF meter

• Accurate 3-axis measurements of electromagnetic fields
  The AF-5000 uses three individual sensors to measure electromagnetic fields along the x, y and z axes. This measurement method provides a detailed overview of the exposure and ensures high accuracy and reliability in the measurements. This is particularly useful in home environments, workplaces and for personal use where understanding the EMF levels is important for health and well-being.


• Measurement of electric fields
  The device can also measure low-frequency electric fields that can contribute to electrical pollution. Such information is critical for those who want to reduce exposure in everyday environments, especially in places with high electrical activity. The AF-5000 ensures that the user can easily map electrical exposure and take preventive measures where necessary.


• RF strength and 5G monitoring
  With a wide measurement spectrum from 50 MHz to 10 GHz, the AF-5000 can measure high-frequency electromagnetic fields, including radiation from wireless devices and modern 5G networks. This provides valuable insight into how exposure from these sources affects the environment, especially with regard to increased 5G coverage and the spread of wireless networks.

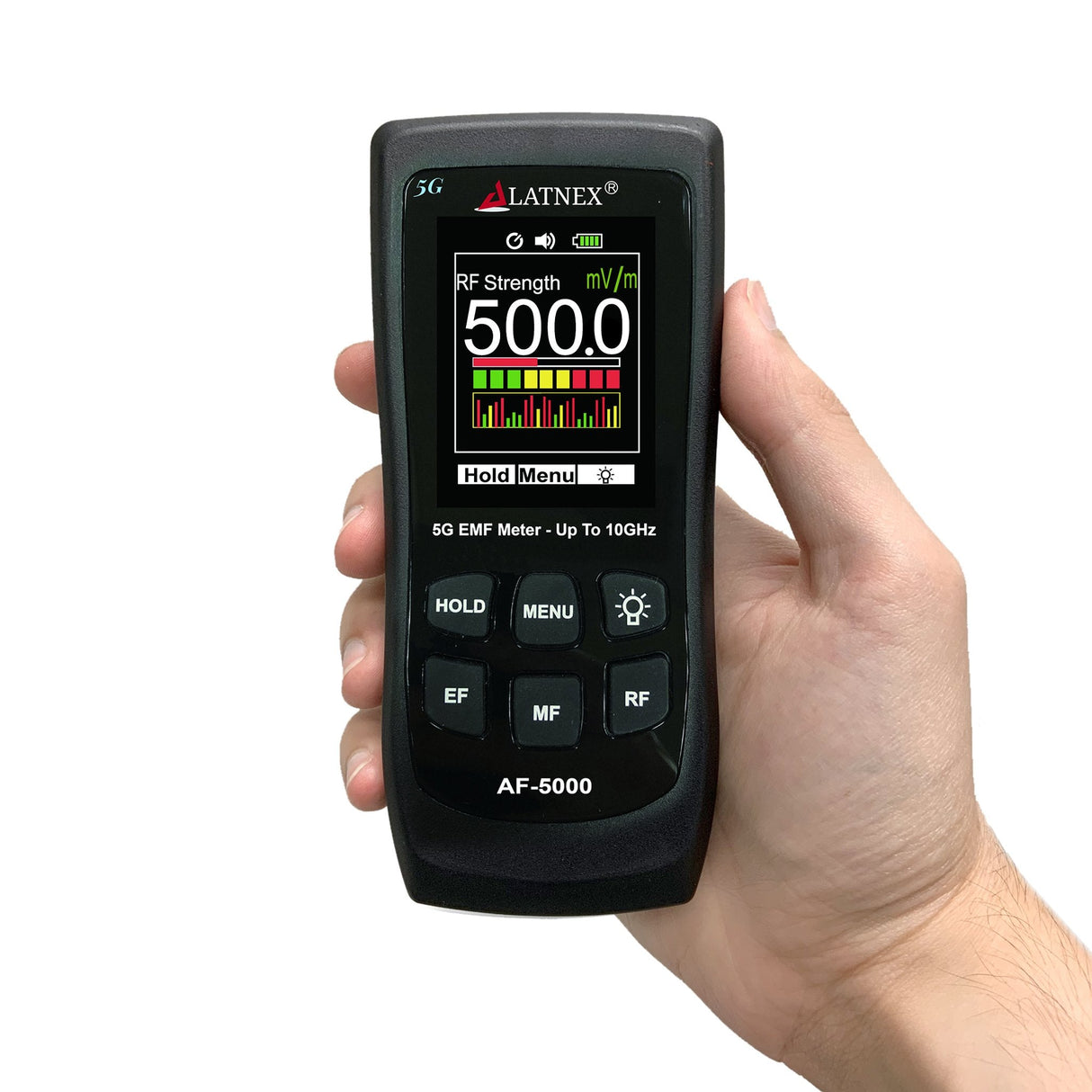

• Portable and user-friendly design
  The AF-5000 is lightweight and compact, making it ideal for use on the go. The large, colorful TFT LCD screen of 2.4 inches makes the readings clear, and the data hold function allows the user to keep results on the screen for easier reading. This provides extra convenience when measuring different EMF sources in different environments.


• High accuracy and reliability
  The device is designed to deliver reliable, high-precision readings, with multiple measurement units and resolutions to suit different needs. With specifications that support measurements in both microtesla (µT) and milligauss (mG), as well as RF field strength in dBm, µW/m² and other units, the AF-5000 provides a comprehensive analysis of the environment's EMF exposure.

Reliable EMF meter to monitor radiation levels

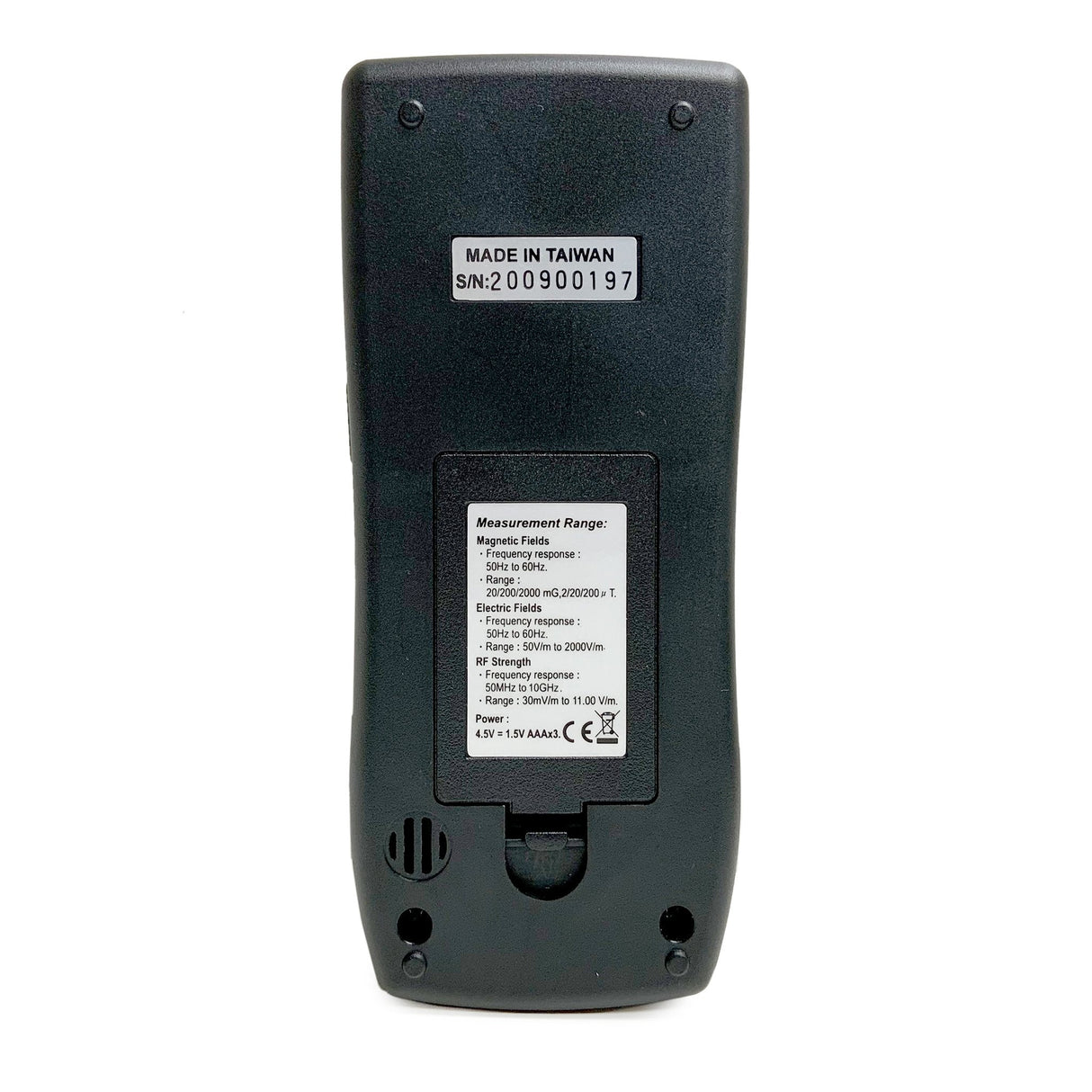

Technical specifications for the AF-5000 multifield 5G EMF meter

Electromagnetic field:

• Area: 20/200/2000 mG, 2/20/200 µT.
• Resolution: 0.02/0.1/1 mG or 0.02/0.1/1 µT.
• Frequency Response: 50/60 Hz.
• Sensor: Triple axis (x, y, z).
• Accuracy: ± (15% + 100 dgt).

Electric field:

• Sensor type: Low frequency electric fields.
• Area: 50 V/m to 2000 V/m.
• Frequency Response: 50/60 Hz.
• Accuracy: ± (7% + 50 dgt).

RF strength field:

• Sensor type: RF strength.
• Frequency range: 50 MHz to 10 GHz.
• Accuracy: ± 2 dB at 2.45 GHz.
• Units of measurement: uW/m², mW/m², µW/cm², mV/m, mA/m and dBm.
• Specified measurement range: 0.02 uW/m² to 554.6 mW/m².
• Display resolution: 0.02 µW/m², 0.2 µA/m, 0.2 mV/m, 0.002 µW/cm², 2 dB.

Other important features:

• Display: 4-digit, 2.4-inch color TFT LCD display for clear display of results.
• Sample rate: 1 second per reading.
• Battery life: About 8 hours.
• Battery: 1.5 V AAA alkaline batteries x 3.
• Audible alarm: Buzzer.
• Operating temperature: 5 °C to 40 °C, below 80% relative humidity.
• Storage temperature: -10 °C to 60 °C, below 70% relative humidity.
• Weight: 120 g.
• Dimensions: 115mm (L) x 60mm (W) x 21mm (H).

Conclusion

The AF-5000 multifield 5G EMF meter is a reliable, advanced and user-friendly tool for measuring and monitoring electromagnetic fields, electric fields and RF strength. This device provides the user with valuable insight into the level of electromagnetic exposure in various environments and enables a safer approach to daily exposure to EMF sources. It is ideal for both home use and professional applications and represents a powerful tool in the work for a healthier and safer everyday life.
