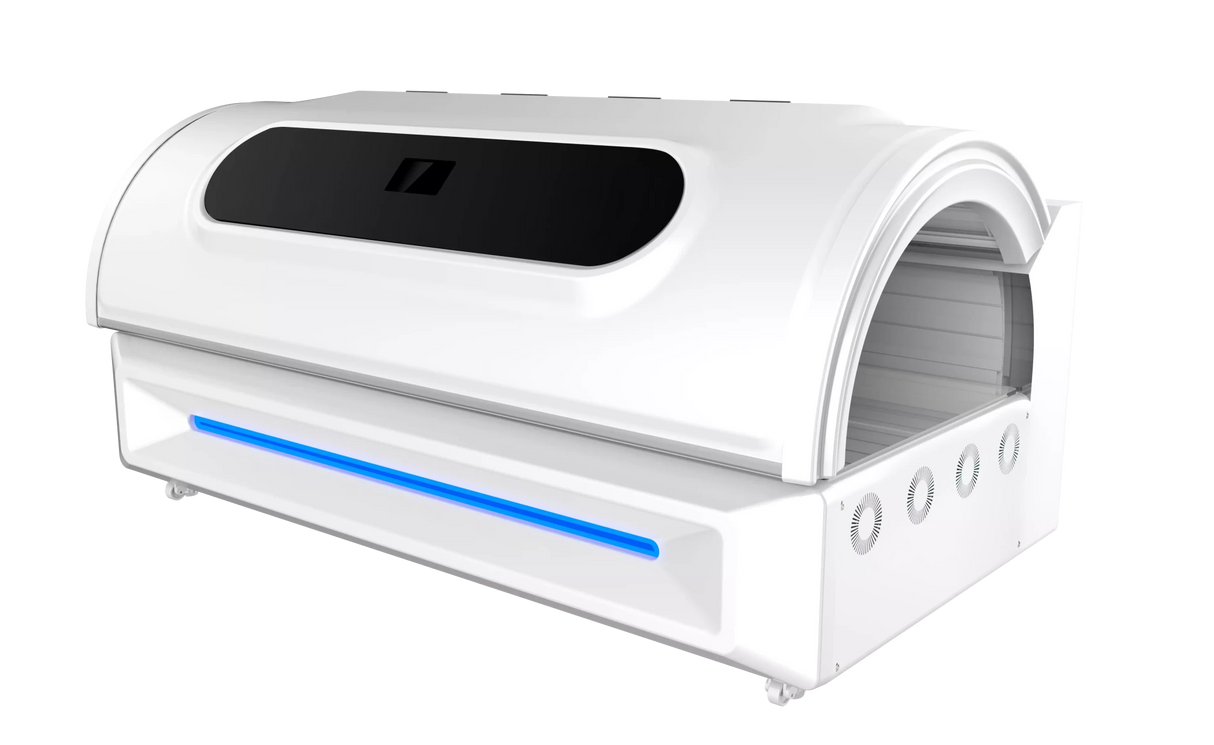

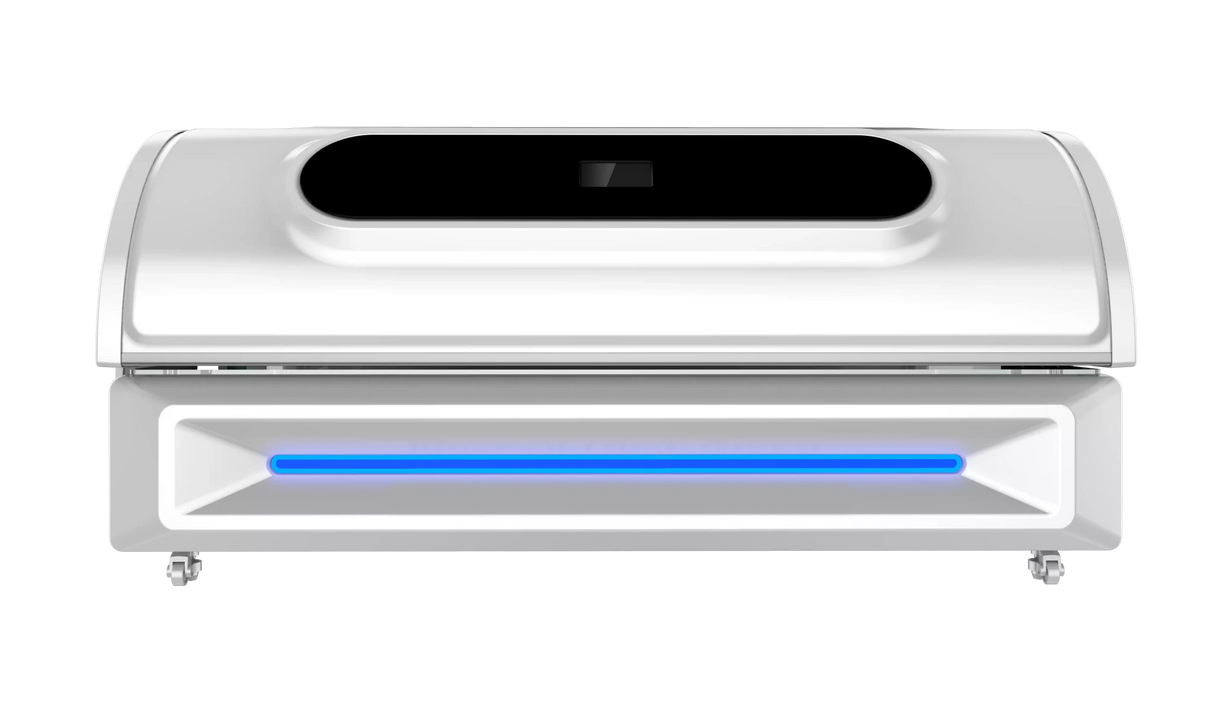

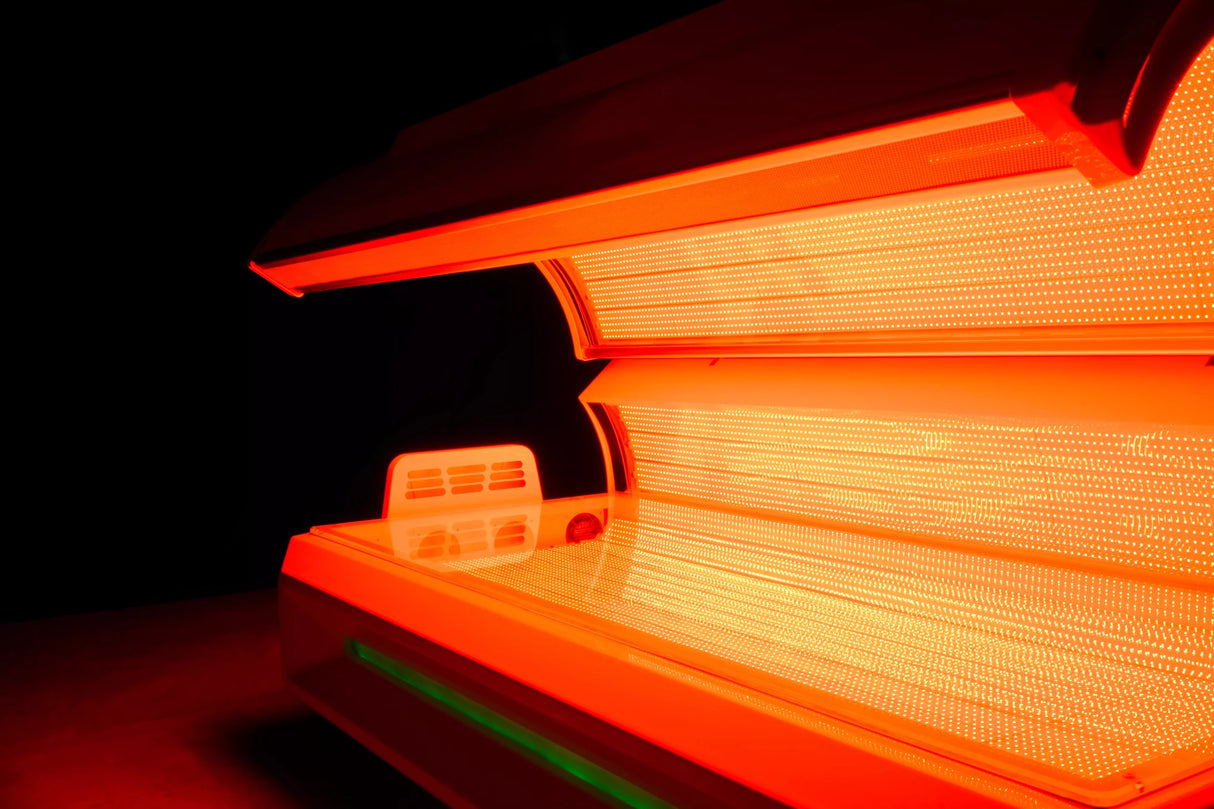

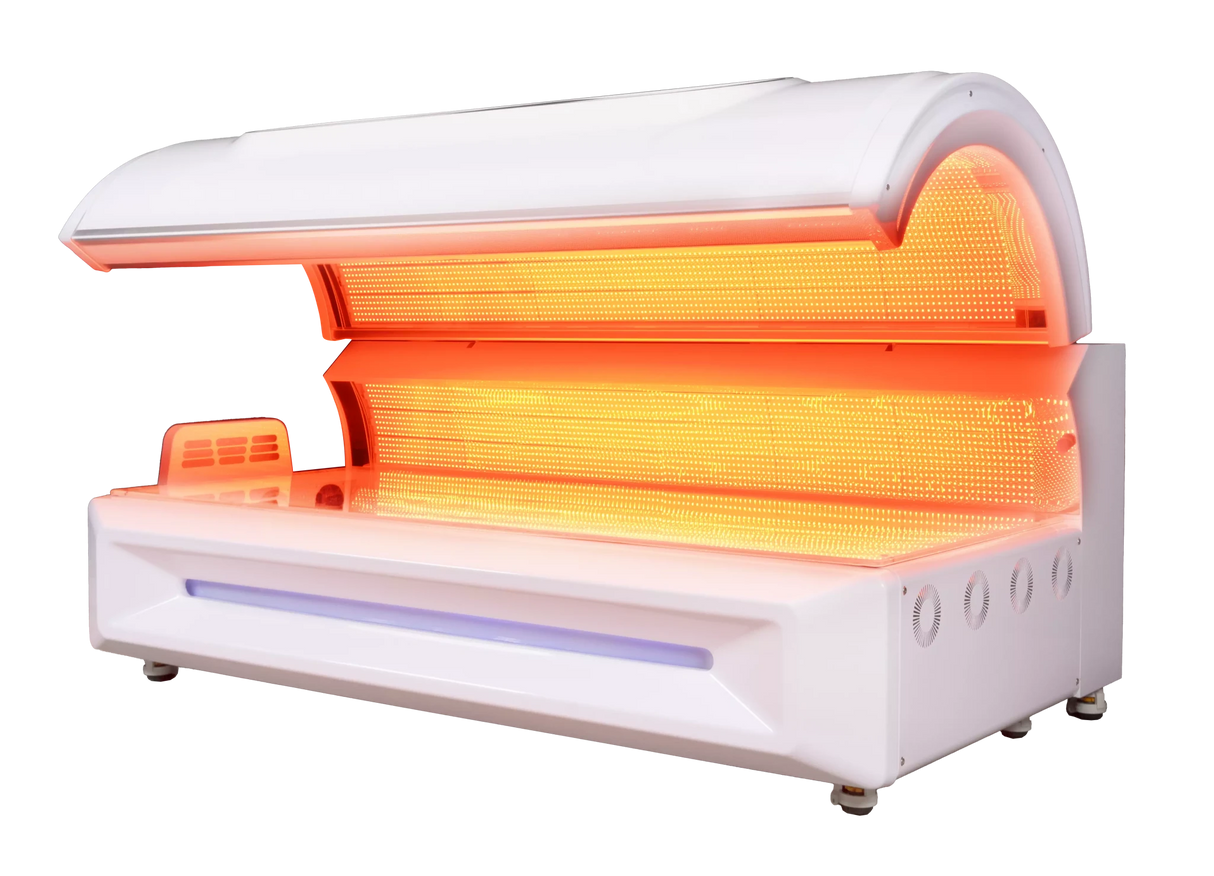

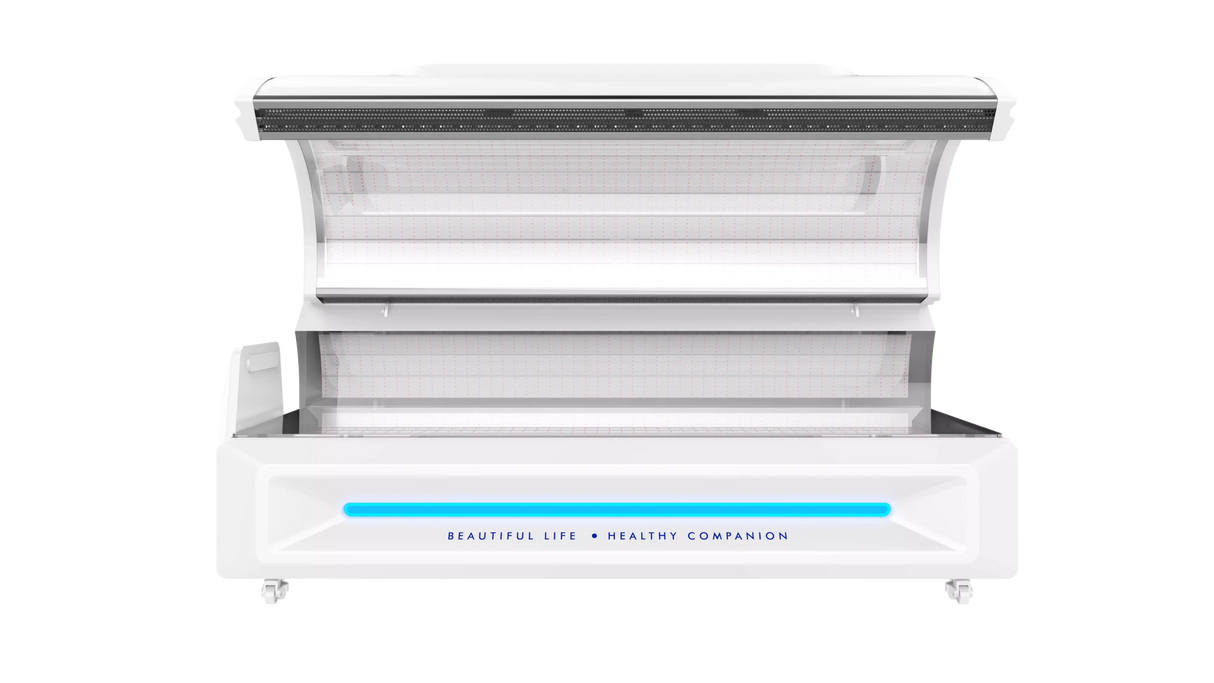

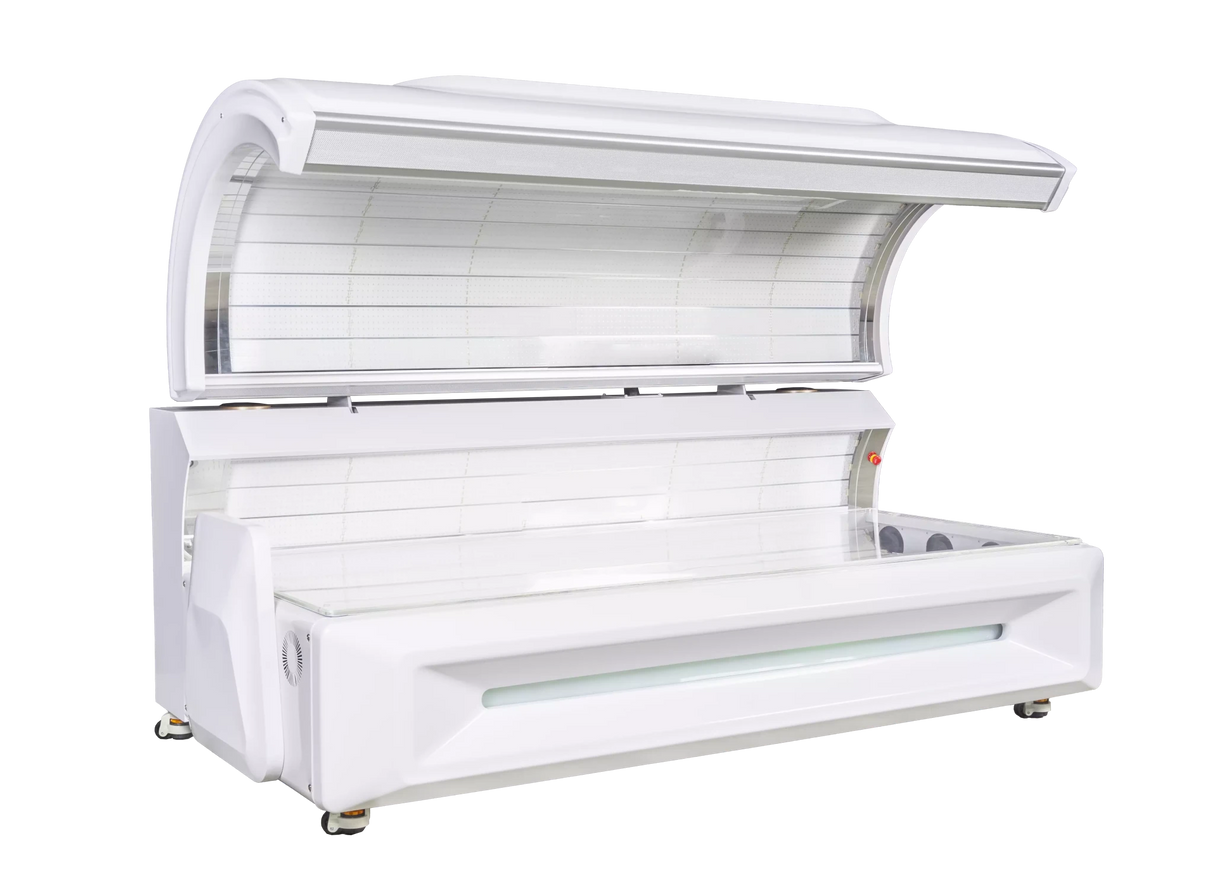

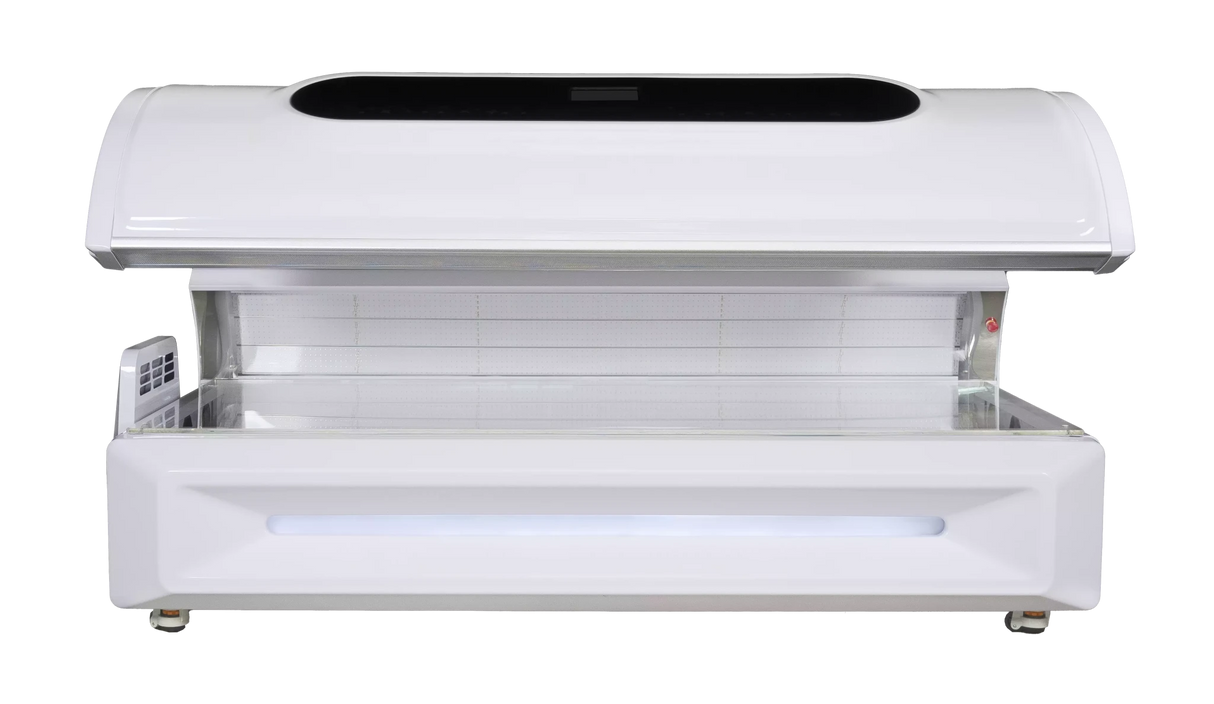

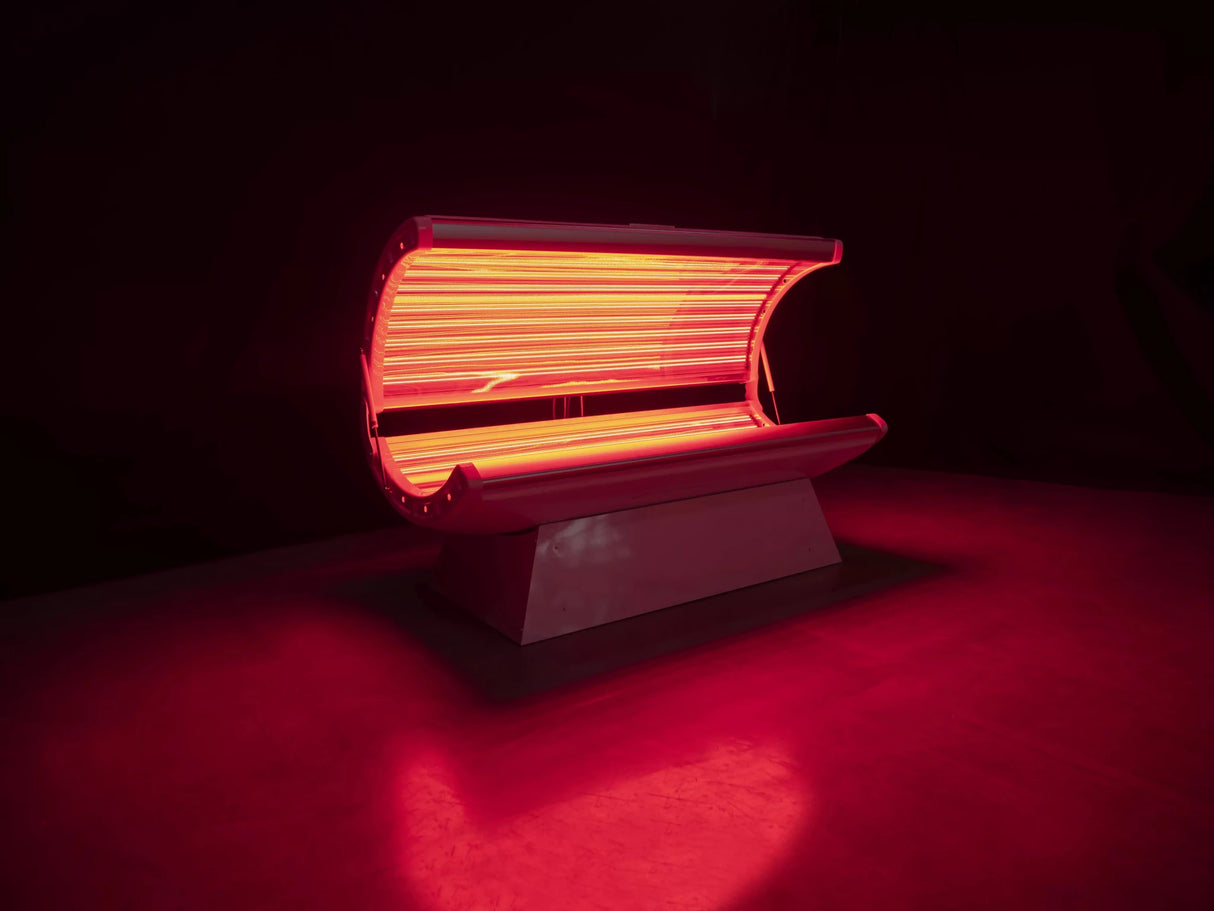

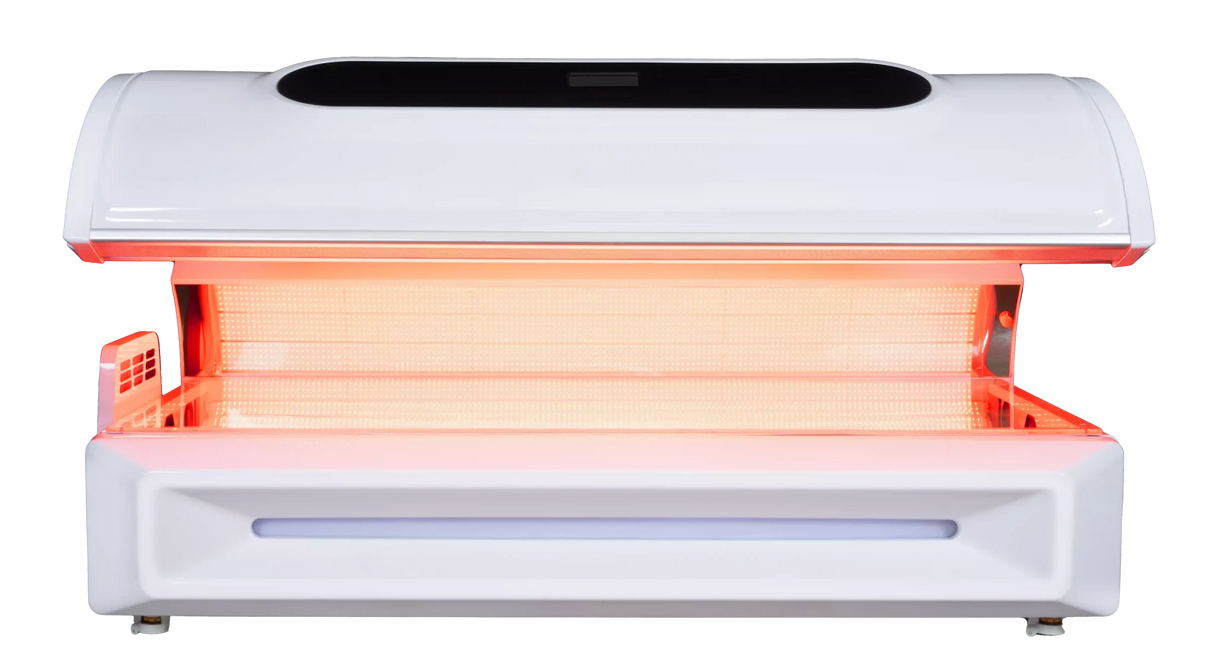

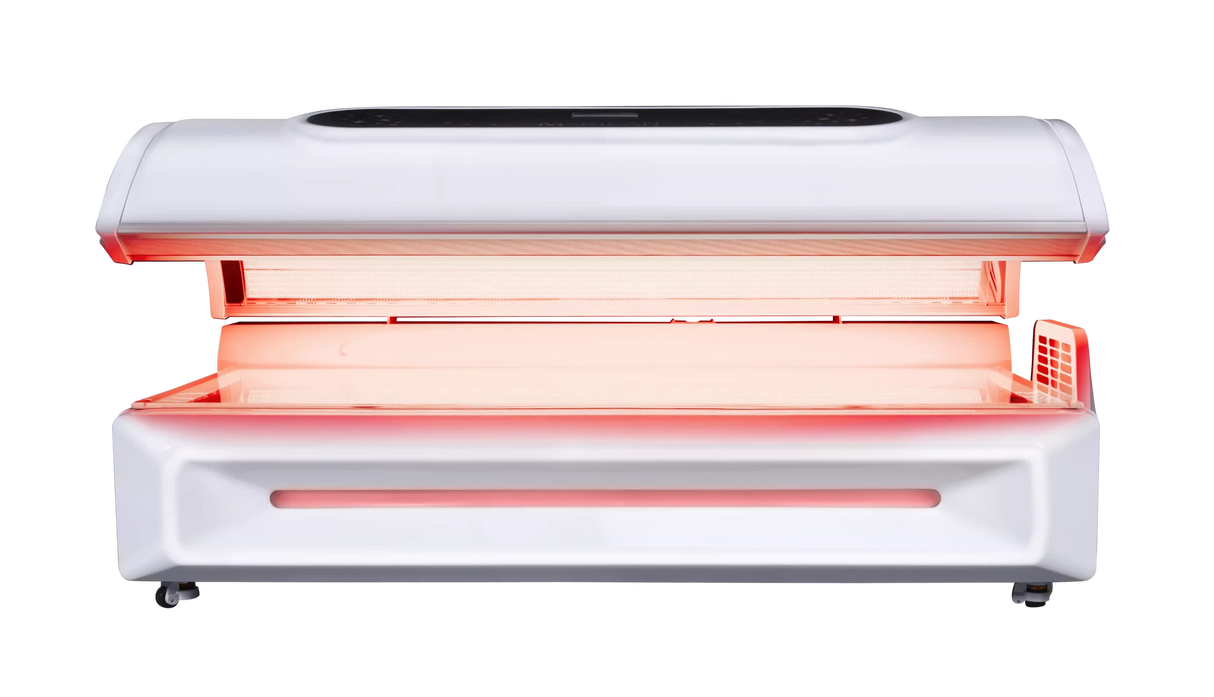

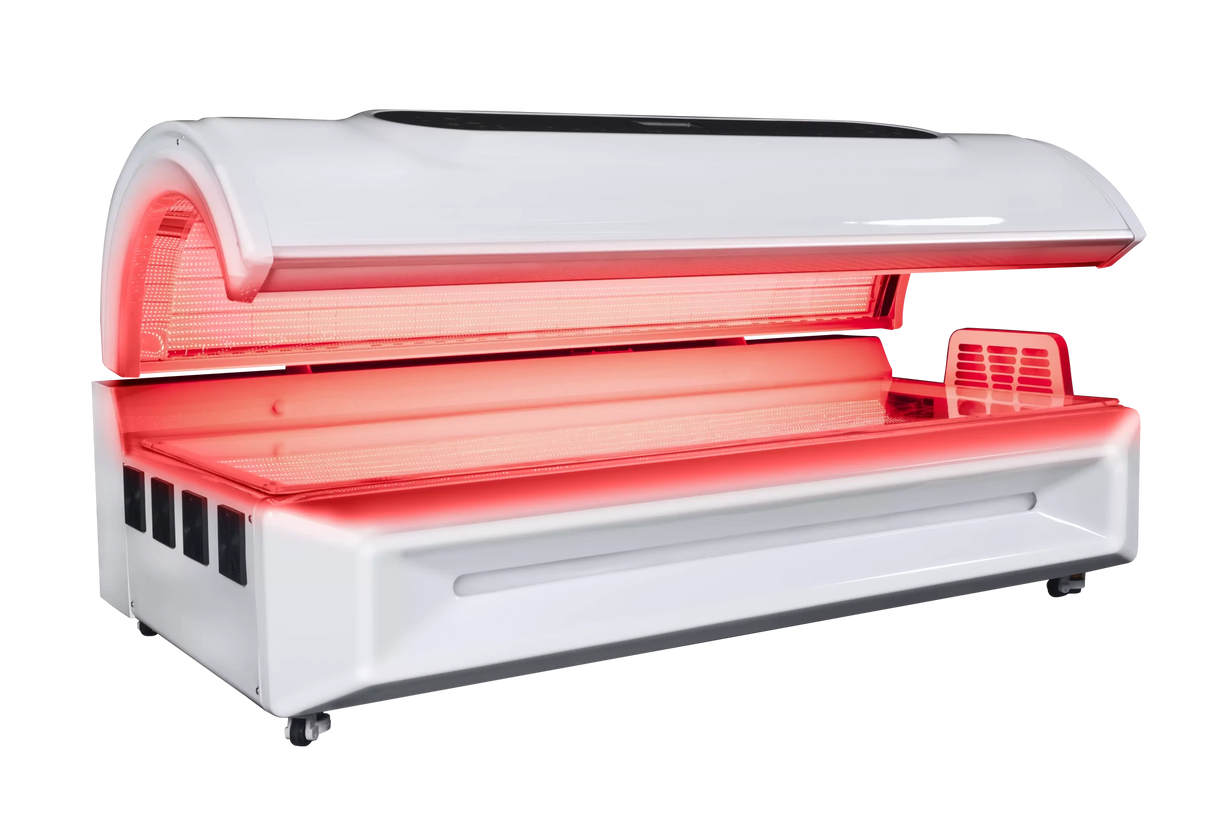

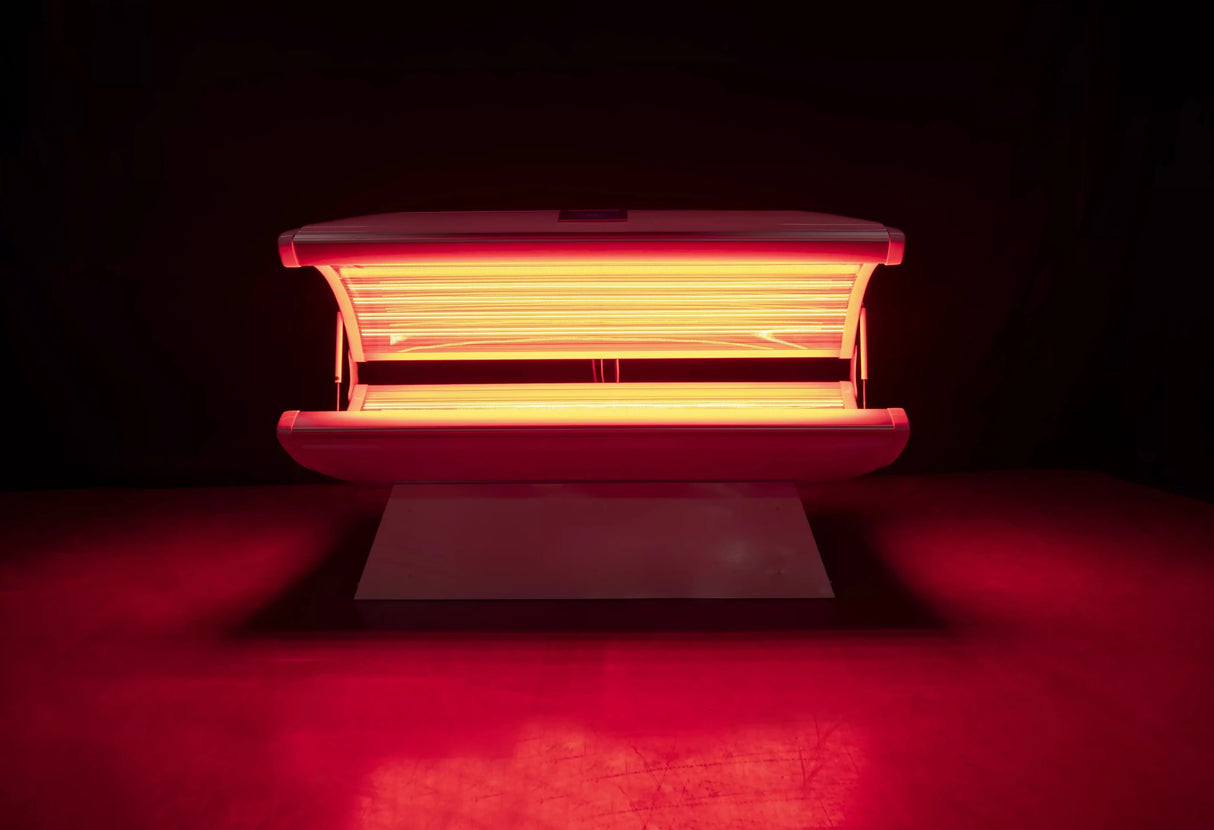

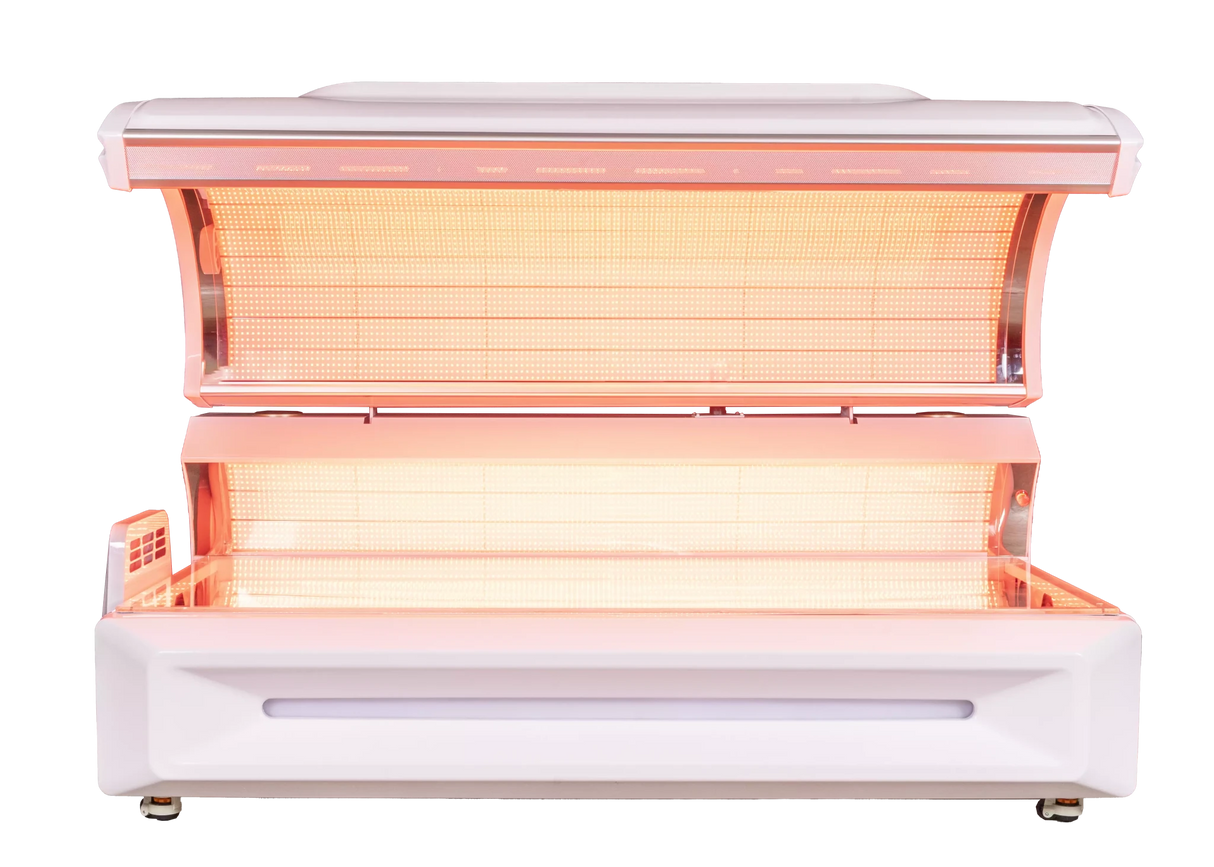

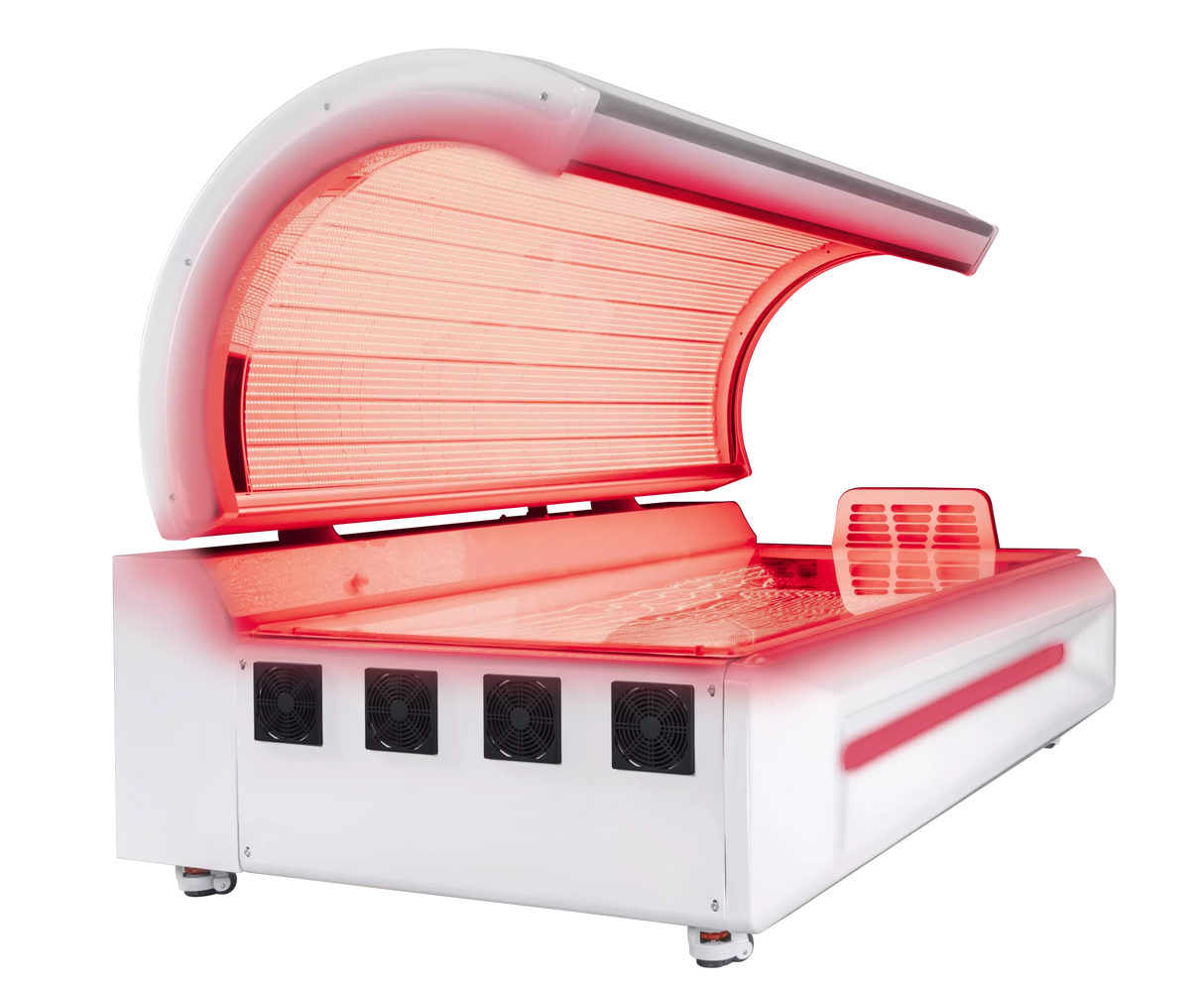

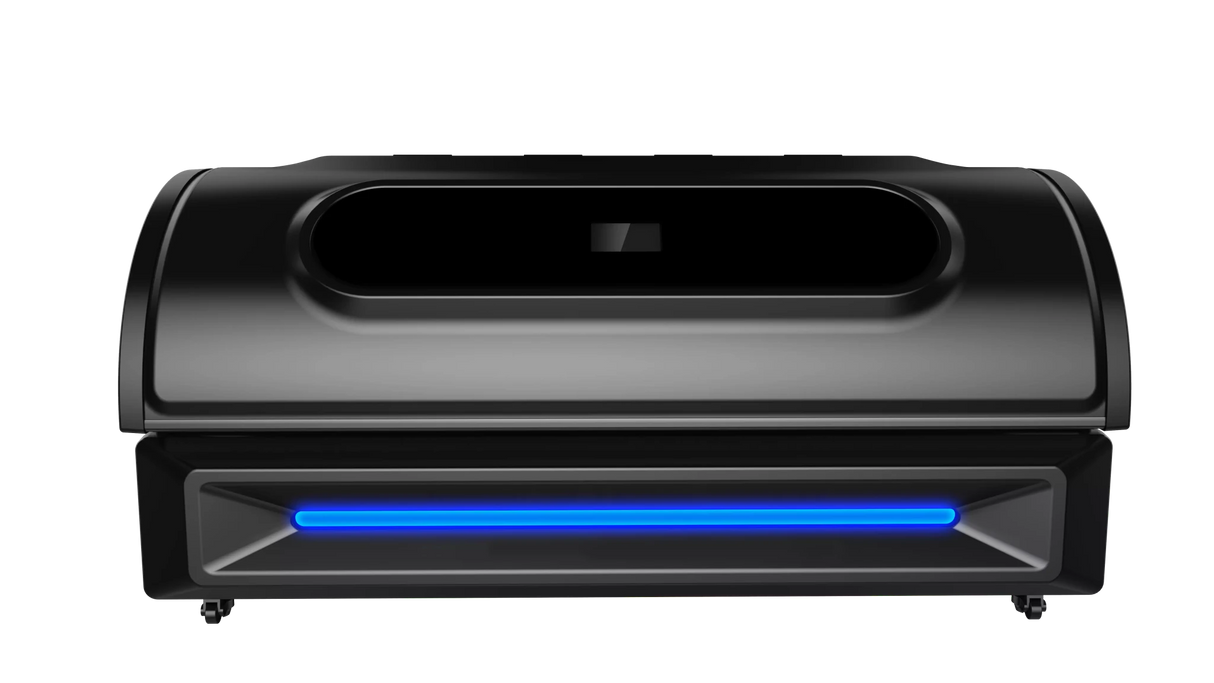

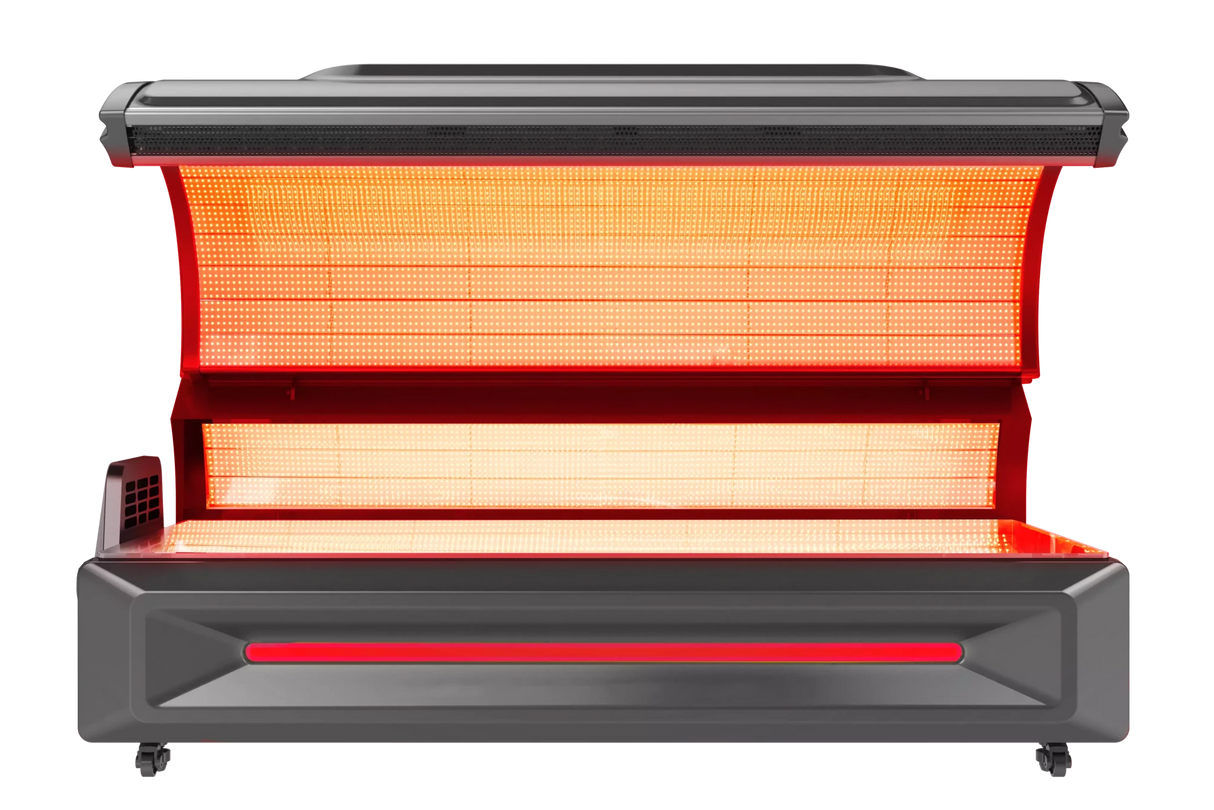

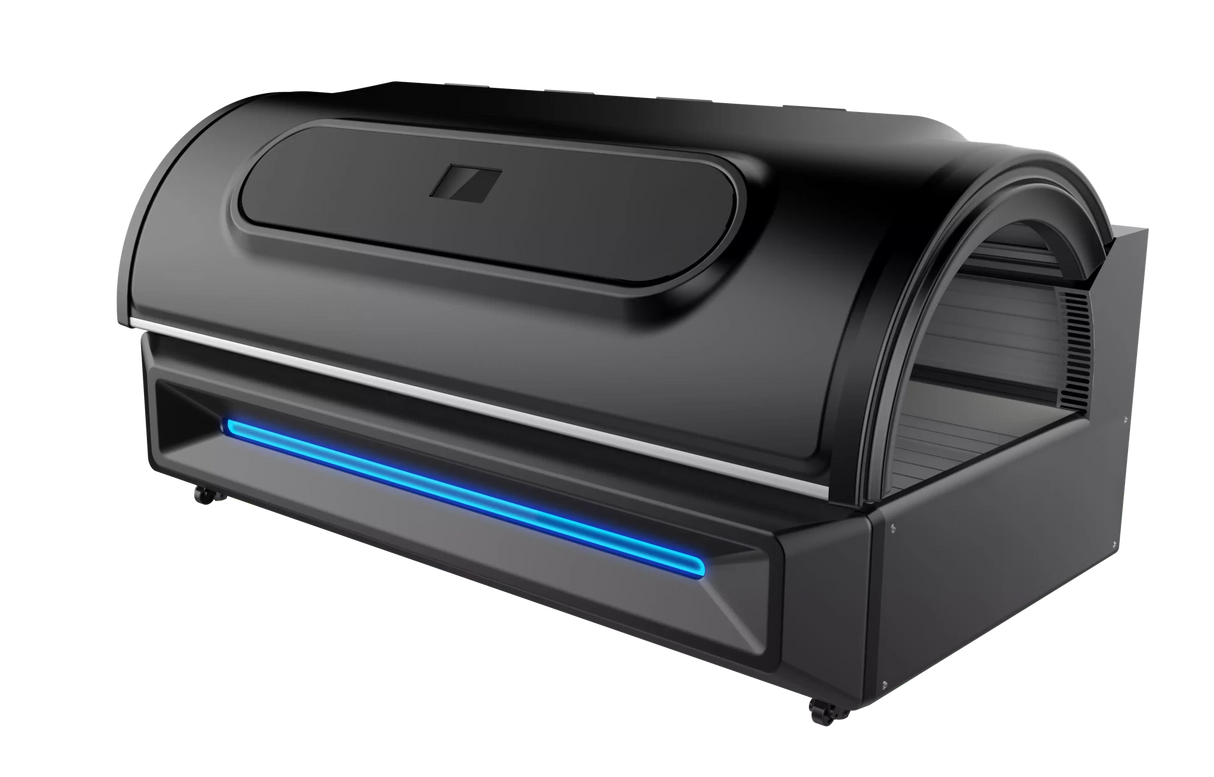

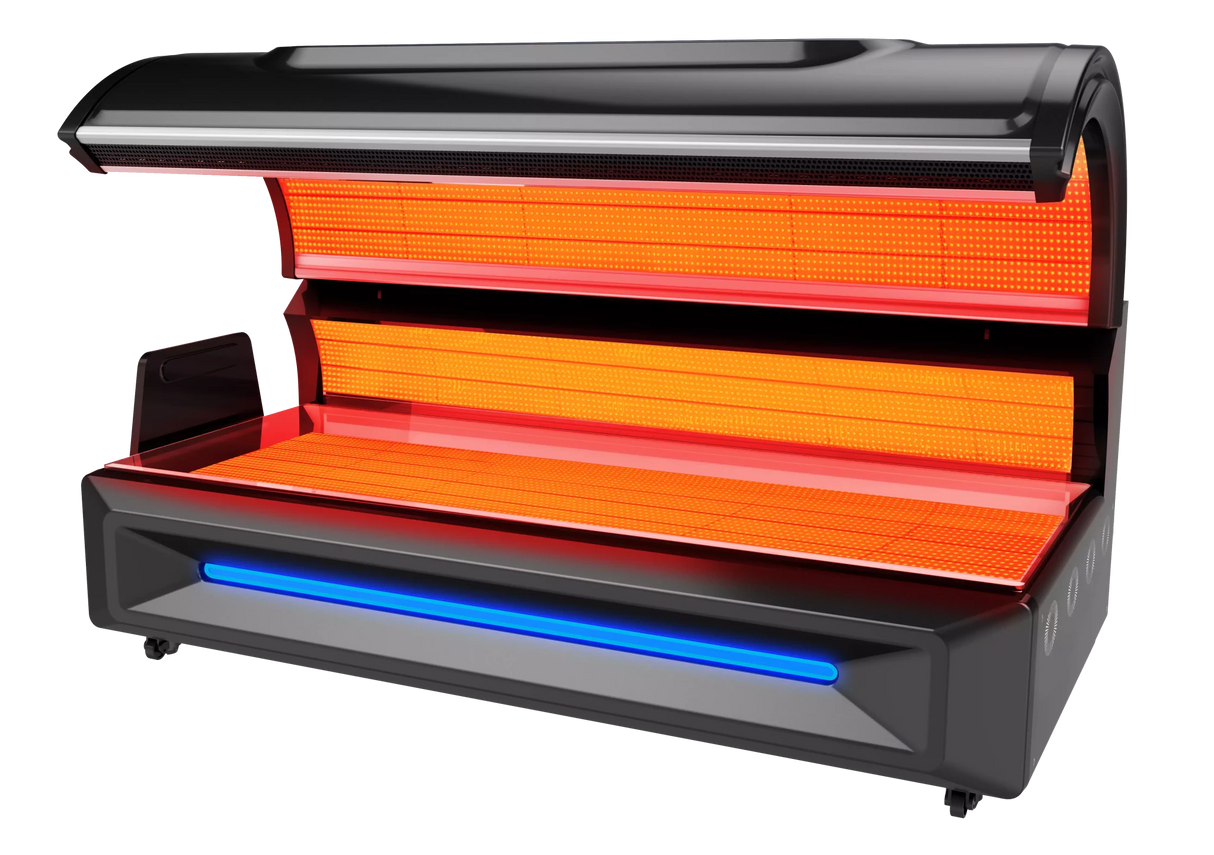

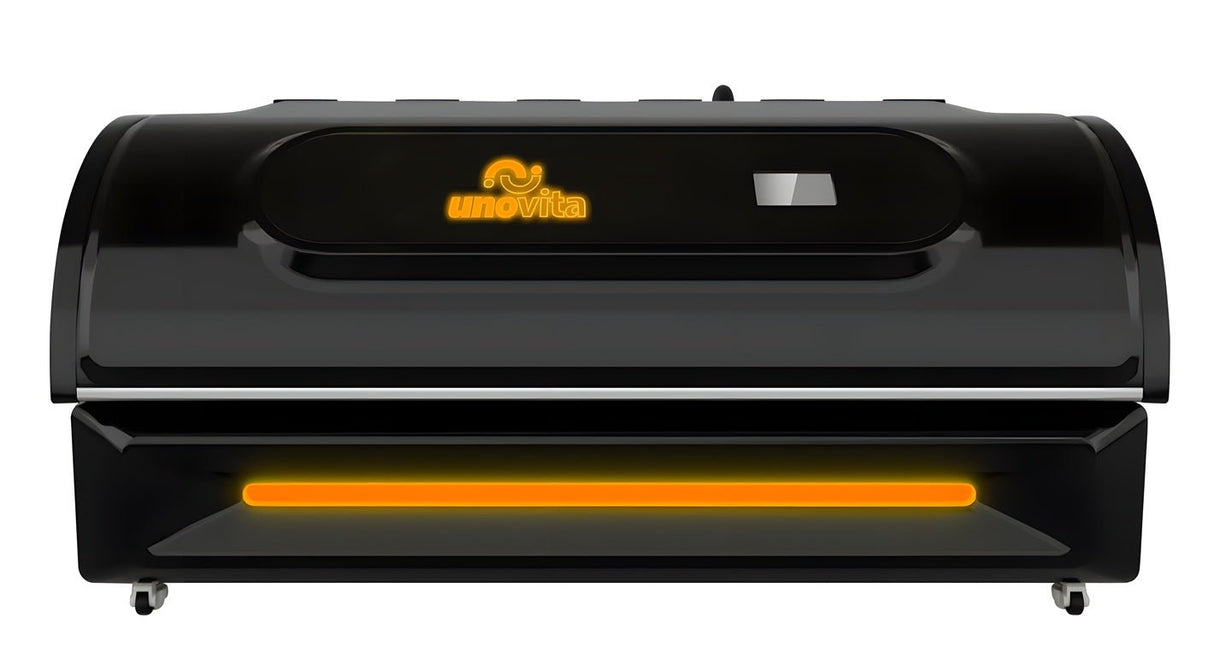

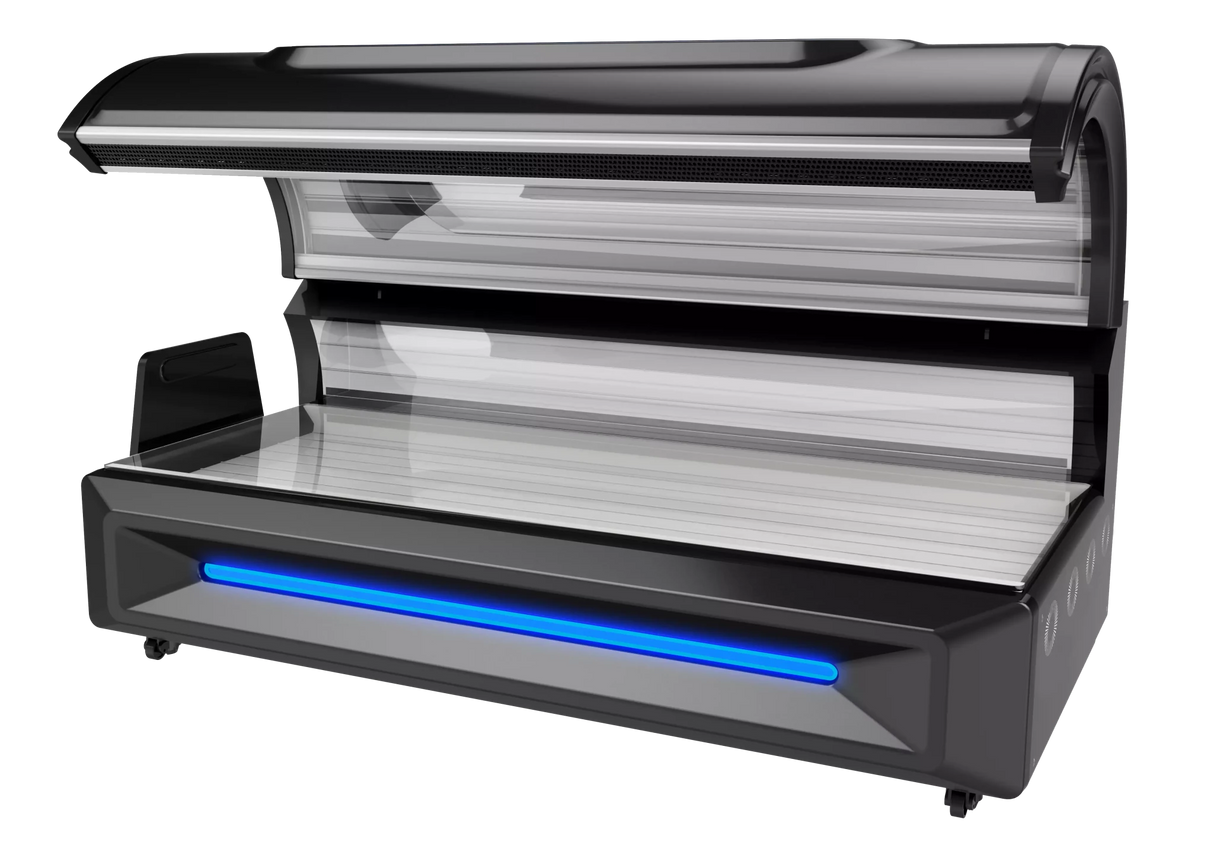

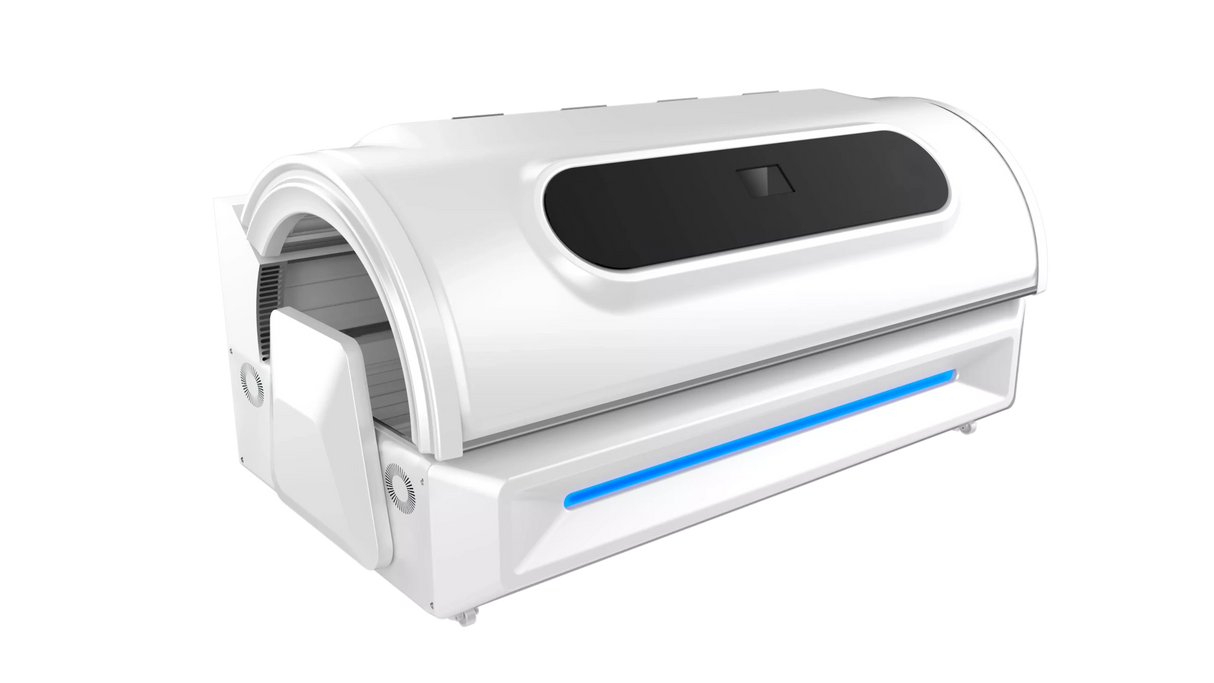

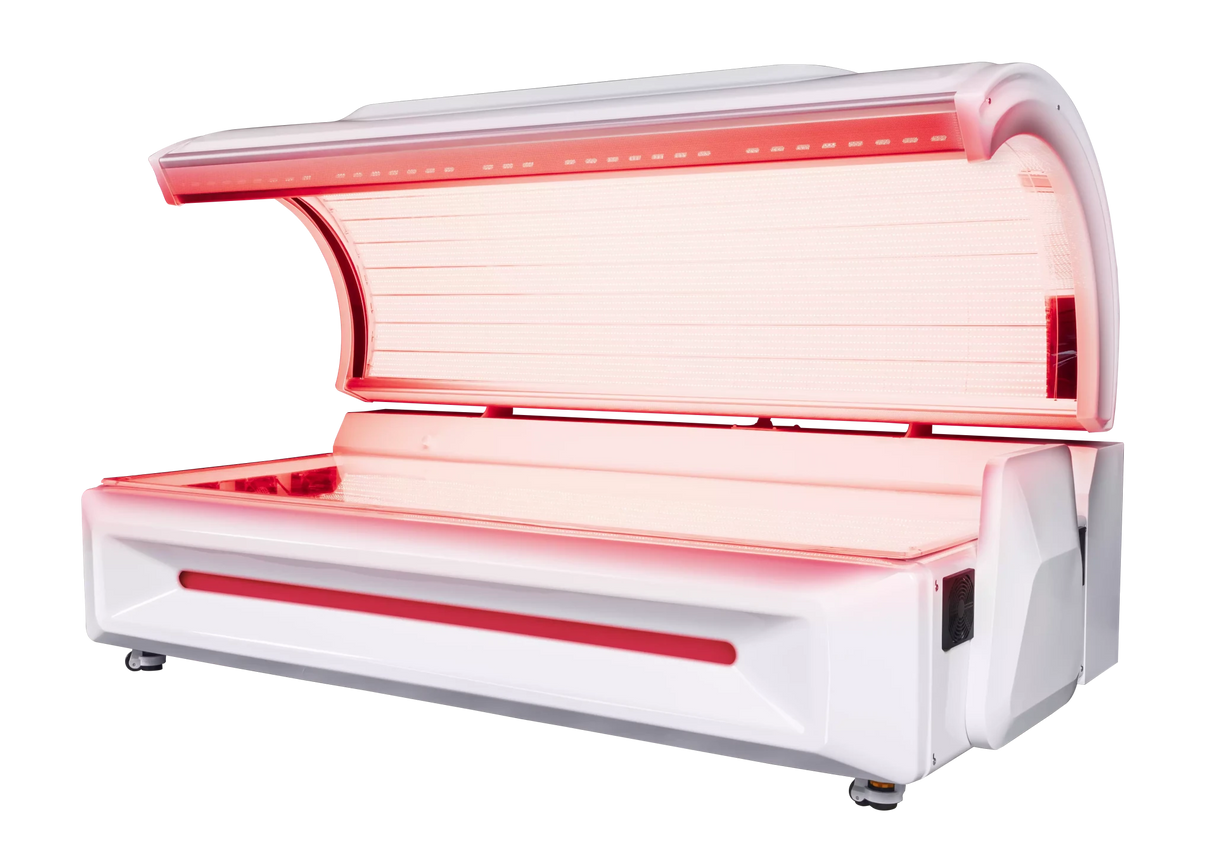

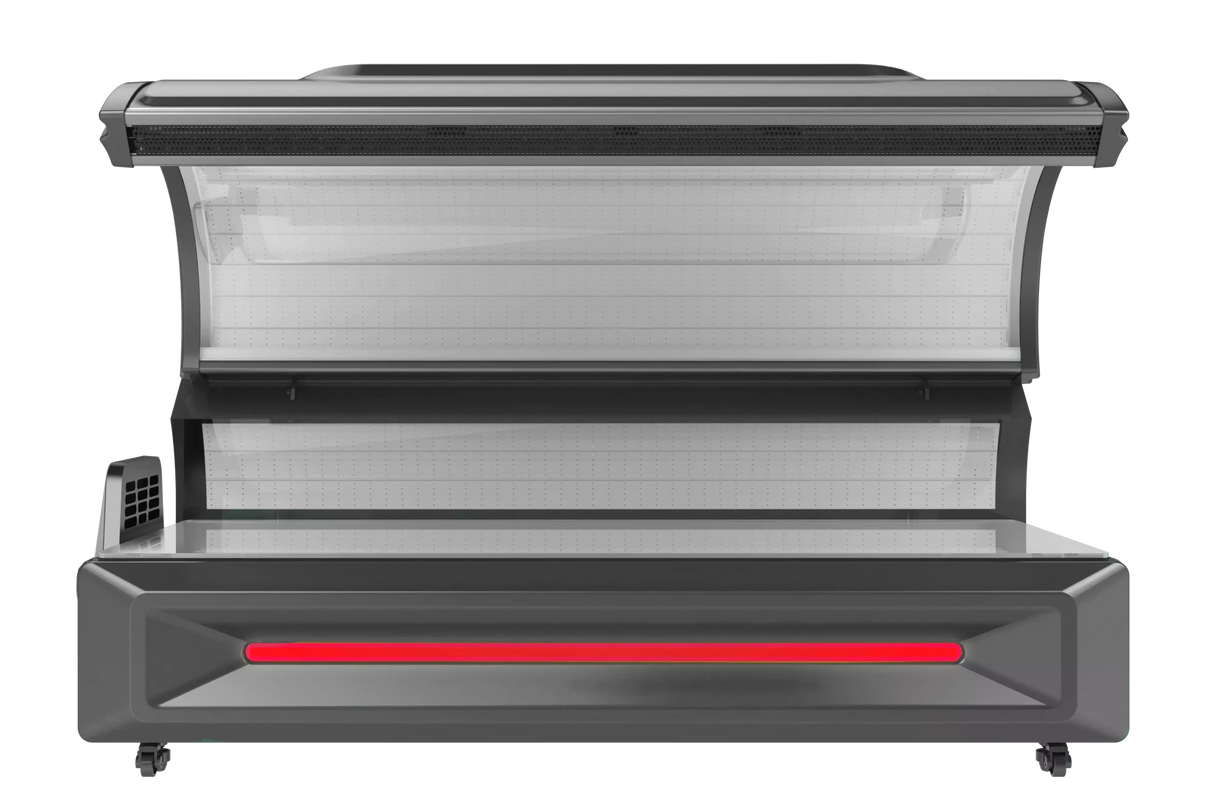

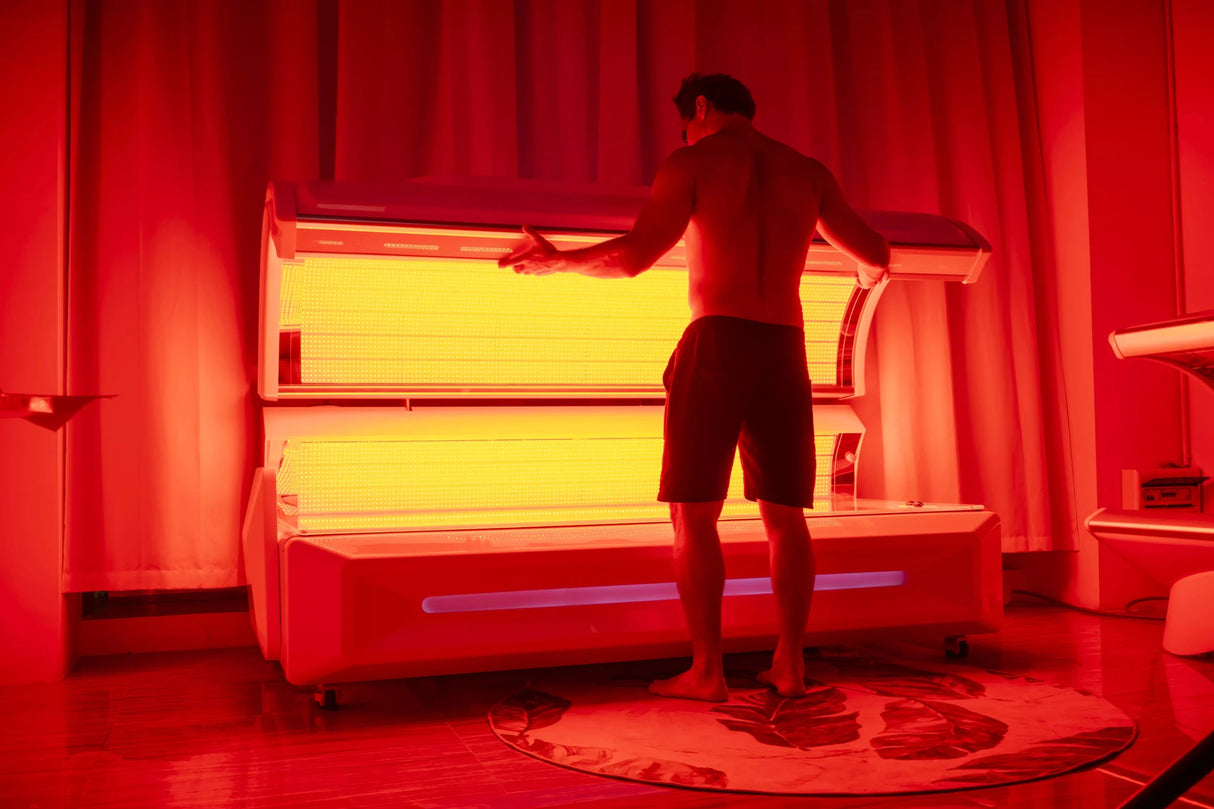

Uno Vita Merican Light Therapy Bed M6N – Top Model for Professional Whole Body Photobiomodulation (PBM)

Uno Vita American Light Therapy Bed M6N represents the highest standard in professional whole-body photobiomodulation (PBM). This advanced system has been developed for clinical and professional use where maximum effect, precision, safety and comfort are essential. With a total of 41,600 high-quality EPISTAR® LEDs, the M6N delivers an even, deep and comprehensive light distribution over the entire body. The system combines five carefully selected wavelengths – 633 nm, 660 nm, 810 nm, 850 nm and 940 nm – with individual control, stepless pulse frequency from 0 to 15,000 Hz and precise control of light intensity. The result is a tailor-made, whole-body photobiological stimulation that can be adapted to different needs and areas of use. M6N has been developed for clinics, rehabilitation centres, sports facilities and luxury spas that want one of the market's most advanced and documented light therapy systems. The system is specially designed according to Uno Vita's specifications. It is possible to get it in several colors (black and white are standard), and the wave ends can be customized. We are happy to give price by agreement, shipping method more more. The standard is boat/car, which gives a delivery time from order of up to 3 months. Air freight is possible but more expensive.

Overall mode of action and photobiological basis
Merican M6N is based on the principles of photobiomodulation, where specific wavelengths of red and near-infrared light are absorbed by the cells' mitochondria. This can stimulate the production of ATP, affect redox balance, modulate signaling pathways and support the body's natural regeneration processes. The system's high effect, even surface coverage and precise control make it possible to deliver a consistent and repeatable whole-body dose within the optimal biological response window.

Potential health and wellness benefits of professional use
Photobiomodulation with Merican M6N can support the cells' natural energy turnover through increased mitochondrial ATP production and contribute to reduced fatigue and exhaustion. The system can contribute to the reduction of oxidative stress and support the cells' antioxidative defence. The release of nitric oxide can support microcirculation, blood flow and oxygen delivery to tissues. PBM can stimulate fibroblasts and support collagen and elastin production in skin, cartilage and connective tissue, as well as contribute to improved skin tone, elasticity and glow. Furthermore, the technology can support the reduction of inflammation, pain relief and faster recovery in muscles after physical activity. PBM can also contribute to the support of nerve function, tissue repair, wound healing, immune response, hormone balance and regulation of the circadian rhythm through the influence of melatonin. The full-body exposure means that the skin, muscles, connective tissue, circulation and lymphatic system can be stimulated at the same time, which gives a holistic effect. The system combines high performance, safety and comfort for daily clinical use in professional settings.

Technical details and specifications
Model: M6N-66889+
LEDs: 41,600 pcs Taiwan EPISTAR® 0.2 W 2835 LED chips
Wavelengths and power distribution: 633 nm – 8,320 diodes / approx. 1,200 W, 660 nm – 8,320 diodes / approx. 1,150 W, 810 nm – 8,320 diodes / approx. 1,050 W, 850 nm – 8,320 diodes / approx. 950 W, 940 nm – 8,320 diodes / approx. 850W
Total rated power: approx. 6,500 W
Irradiance at skin level: approx. 80–140 mW/cm²
Pulse frequency: 0–15,000 Hz, continuously adjustable
Duty cycle: 0-100%, adjustable
Light spread: Full body exposure, approx. 120° beam angle per LED
Control system: Integrated control module with wireless tablet for remote control
Additional functions: Individual wavelength control, smart control, Bluetooth music, advanced cooling and fresh air system with approx. 1300 CFM air exchange, ambient flow light design
Materials: UK Lucite® acrylic sheets with up to 99% light transmission
Dimensions: approx. 227.5 × 123.5 × 112.5 cm
Net weight: approx. 400 kg
Max user weight: 250 kg

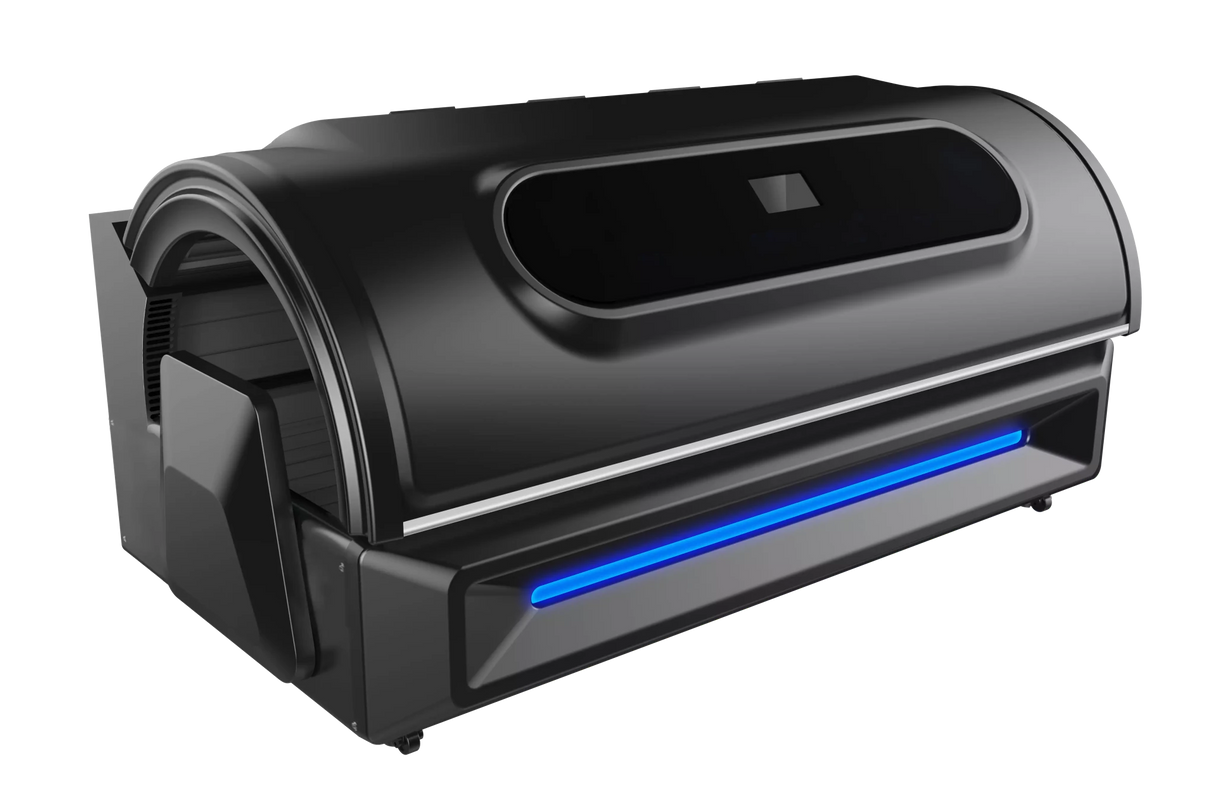

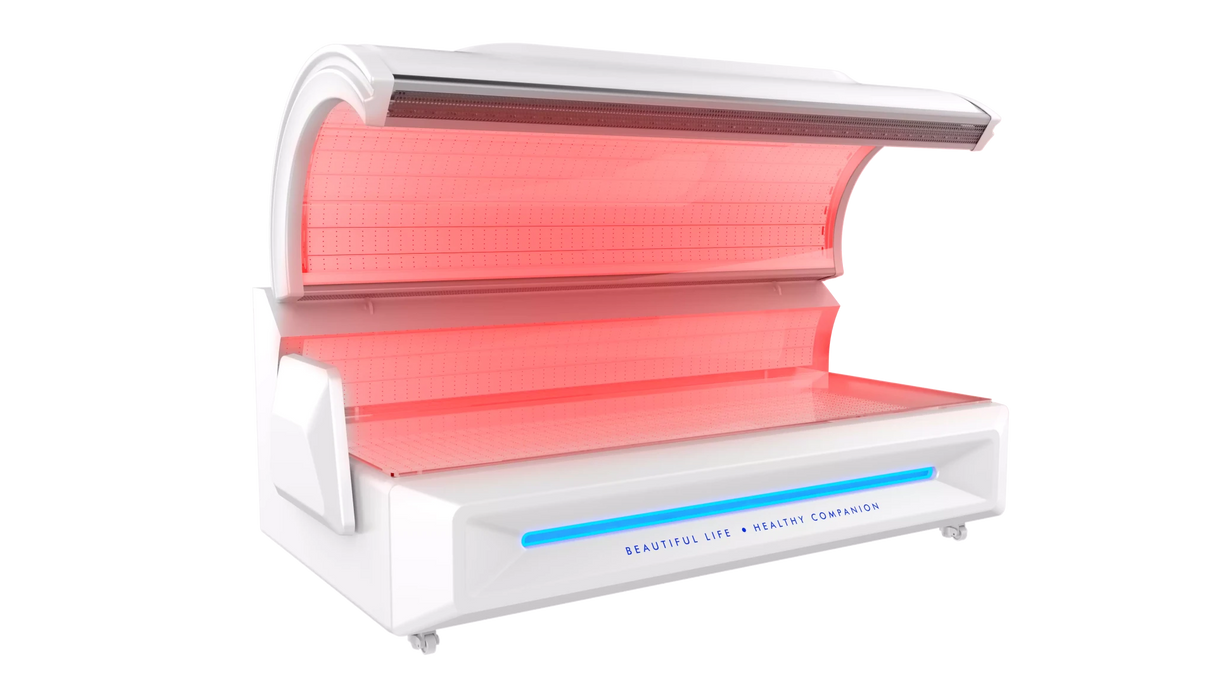

Color choice: Black or white (customization possible)
Voltage: 220 V / 380 V
Warranty: 5 years

Label and product information
Product name: Merican Light Therapy Bed M6N – Top Model
Type: Professional full body PBM device
Area of use: Photobiomodulation and light therapy for professional use
Manufacturer: Merican Holding
Importer and distributor: Uno Vita AS, Norway
Weight: approx. 400 kg
Dimensions: approx. 227.5 × 123.5 × 112.5 cm
Voltage: 220 V / 380 V
Max load: 250 kg
Warranty: 5 years
CE mark: Yes

Uno Vita Recommended Manual Protocols for Merican M6M/M6N
The following protocols are Uno Vita recommended settings and are set manually when adjusting time, brightness and pulsation. They are not ready-made menu options in the Merican system. The Merican M6M/M6N is a full body PBM bench with top and bottom and typically delivers 100-130 mW/cm² at skin level. The optimal total dose for whole-body PBM is often around 48–72 J/cm², which corresponds to approx. 8-12 minute treatment at these levels.

Uno Vita Vitality – general health and energy
60-80% brightness for 8-12 minutes of continuous light. Provides a stable and effective whole-body dose for general well-being and regeneration. Use 3-5 times per week. Safety glasses are recommended above 70% intensity.

Performance & Recovery – muscle and sports
80-100% brightness for 8-10 minutes with 40Hz, 100Hz or 1000Hz pulsation. Suitable after exercise or physical exertion. Use 2-3 times per week. Safety glasses are recommended.

Deep Reset – systemic regeneration and nerve support
70-90% brightness for 9-12 minutes. Start with 10 Hz, then 40 Hz and finish with 1000 Hz, approx. 3–4 minutes per frequency. Use 1-3 times per week.

Anti-Aging & Skin Renewal – skin and collagen
60-70% brightness for 6-8 minutes with continuous light, focus on 633/660 nm. Use 2-4 times per week.

Relax & Sleep Optimization – stress and sleep
40-60% brightness for 12-15 minutes of continuous light. Use 3–5 times per week, preferably in the afternoon or evening.

Sensitive User Protocol – ME, fibromyalgia and high sensitivity
40-60% brightness for 6-8 minutes of continuous light. Start with 2 sessions per week and increase gradually.

Uno Vita Signature – 432 Hz and 528 Hz resonance setup
50-60% brightness for 8-10 minutes. 432 Hz for 4 minutes followed by 528 Hz for 4-6 minutes. Use 2-4 times per week. This is an information and resonance based setup, not a medical protocol.

Relevant pulse frequencies in PBM
1-5 Hz for deep calm and relaxation, 7.83 Hz (Schumann resonance) for grounding, 10 Hz for mental balance and well-being, 20 Hz for increased alertness, 40 Hz for gamma activity and cognitive support, 72-100 Hz for circulation and rehabilitation, as well as 1000 Hz for cellular support and ATP-related processes.

Technical Model Overview - Uno Vita Merican Full Body PBM (Plus Series)

Uno Vita American M4N Plus
Number of LEDs: approx. 21,600 pcs
LED type: Taiwan EPISTAR® 0.2 W special LED
Standard wavelengths: 633, 660, 810, 850, 940 nm
Total rated power: approx. 3000W
Pulse frequency: adjustable, up to 50,000 Hz (model-dependent control)
Duty cycle: 0-100%
Control system: Smart Control System 2.2
Cooling: Self-circulating forced air cooling
Power connection: 220 V
Power consumption: approx. 15 A (220 V)
Dimensions: approx. 1940 × 860 × 820 mm
Weight: approx. 120 kg
Degree of protection: IP53
Application profile: Compact clinic model for spa, skin, recovery and smaller treatment rooms

Uno Vita Merican M5N Plus-5
Number of LEDs: approx. 38,600 pcs
LED type: Taiwan EPISTAR® 0.2 W LED
Standard wavelengths: 633, 660, 810, 850, 940 nm
Total rated power: up to approx. 5,200 W
Pulse frequency: 0-50,000 Hz
Duty cycle: 0-100%
Individual wavelength control: Yes
Control system: Wireless smart control with protocol management
Cooling: Patented 360° air cooling with separate fresh air system
Power connection: 220 V (dedicated course approx. 40 A) or 380 V three-phase (approx. 25 A)
Dimensions: approx. 2275 × 1250 × 965 mm
Weight: approx. 370 kg
Degree of protection: IP53
Usage profile: Full-scale clinic model with high LED density and powerful power class

Uno Vita Merican M6N Plus-5
Number of LEDs: approx. 41,600 pcs
LED type: Taiwan EPISTAR® 0.2 W 2835 LED
Standard wavelengths: 633, 660, 810, 850, 940 nm
Total rated power: approx. 6,500 W
Pulse frequency: 0–15,000 Hz
Duty cycle: 0-100%
Individual wavelength control: Yes
Control system: Integrated tablet-based control
Cooling: High-volume forced air cooling with temperature-controlled safety
Power connection: 220 V / 380 V
Dimensions: approx. 2260 × 1220 × 930 mm
Weight: approx. 360–400 kg
Degree of protection: IP53
Usage profile: Highest performance class for intensive clinical operation and high throughput

Uno Vita American M7 Plus
LED count: High LED density, model specific configuration
LED type: Taiwan EPISTAR®
Standard wavelengths: 633, 660, 810, 850, 940 nm
Power class: High power (above M5N level, model dependent)
Pulse rate: Advanced pulse control
Duty cycle: 0-100%
Capsule construction: All-encompassing premium design
Cooling: Enhanced multi-channel air cooling
Power connection: 220 V / 380 V
Usage profile: Premium clinic and luxury spa model with a focus on comfort and aesthetics

Uno Vita American M11 Plus
Number of LEDs: Extra high LED density (larger capsule volume)
LED type: Taiwan EPISTAR® high power LED
Standard wavelengths: 633, 660, 810, 850, 940 nm
Power class: Ultra high total power
Pulse rate: Advanced pulse control
Duty cycle: 0-100%
Construction: Large full body capsule with maximum internal room comfort
Cooling: Industrial air cooling with separate fresh air system
Power connection: 220 V / 380 V three-phase
Weight: High industrial grade
Usage profile: Flagship model for medical centers, sports medicine and high-end wellness facilities

Common technology platform for the Plus series
LED technology: Taiwan EPISTAR®
Standard 5-wavelength system: 633, 660, 810, 850, 940 nm
Duty cycle: 0-100%
Adjustable pulse rate
UK Lucite® acrylic panels with up to 99% light transmission
IP53 degree of protection
Automatic temperature protection and overheating alarm
Smart Control System 2.2 or later
Environmental requirements: 15–35 °C, ≤ 75% RH without condensation
Warranty: Up to 5 years as specified by the manufacturer

Brief technical differentiation
M4N Plus = compact and power efficient
M5N Plus-5 = high LED density and strong power
M6N Plus-5 = maximum power in the standard capsule class
M7 Plus = premium comfort and design
M11 Plus = flagship model with the greatest capacity and power

Reservation
The product is intended for professional use in clinics, rehabilitation, sports and wellness. Not intended as a substitute for medical diagnosis or treatment. People with a pacemaker, epilepsy, photosensitivity, pregnancy or known photosensitivity should consult a healthcare professional before use.

Disclaimer and freedom of expression
Uno Vita AS and the manufacturer Merican Holding make no medical guarantees for individual results. Effects may vary. The information is based on scientific literature on photobiomodulation and the manufacturer's technical data and is intended as general professional information. Uno Vita AS supports the free sharing of knowledge about light, energy and the body's self-regulating abilities in line with freedom of expression.
